UV Grade Fused Silica Window - WF22-050
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

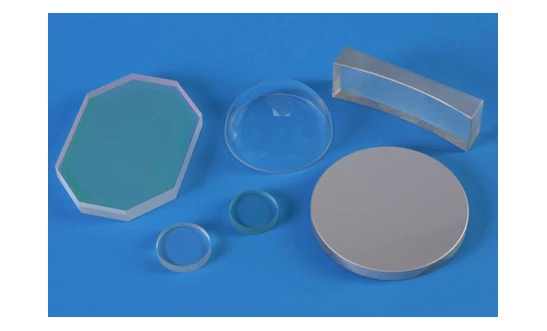

At Tower Optical, we understand that quality is not expensive, it is priceless. Our commitment to excellence is evident in our range of custom circular and square windows, designed to isolate different physical environments while allowing light to pass through. When selecting a window, it is crucial to consider the properties of various optical materials, including transmission, wavelength range, and environmental resistance. We offer a wide selection of materials and anti-reflective coatings to meet your specific needs.
Our windows are expertly manufactured from high-quality materials such as BK7, UV Grade Fused Silica, and Sapphire. For those with unique requirements, we also provide custom solutions tailored to your specifications. Our products are available in three distinct quality standards, ensuring that you receive the best fit for your application. Whether you require standard, high, or laser-grade quality, our windows are crafted to meet the highest industry standards.
At Tower Optical, we pride ourselves on our ability to deliver precision and reliability. Our team is dedicated to providing exceptional customer service and support. If you have specific requirements or need further information about our Sapphire Windows, please do not hesitate to contact us. We are here to assist you in finding the perfect solution for your optical needs.
UV Grade Fused Silica Window - WF22-050
Specifications |
|
|---|---|
| Substrate Material: | UV Grade Fused Silica |
| Antireflection Coating: | Uncoated |
| Diameter: | 50 mm |
| Surface Quality: | 20-10 scratch-dig |
| Surface Flatness: | lambda/10 |
| Thickness: | 10 mm |
| Thickness Tolerance: | ±0.2mm |
| Parallelism: | < 10 arc seconds |
Features
- Custom Circular and Square Windows: Designed to isolate different physical environments while allowing light to pass through.
- Wide Range of Materials: Manufactured from BK7, UV Grade Fused Silica, and Sapphire. Other materials available on a custom basis.
- Anti-Reflecting Coatings: Various coatings can be deposited on the windows to enhance performance.
- Three Quality Standards: Available in Standard Grade, High Grade, and Laser Grade to meet diverse application needs.
- Dimensional Tolerance: Precision manufacturing with a tolerance of +0.0/-0.1mm or ±0.1mm.
- Surface Flatness: Options include λ/2, λ/10, and λ/4 per 25.4mm at 632.8nm, ensuring high optical quality.
- Surface Quality (Scratch/Dig): Available in 40/20 and 20/10, providing superior surface finish.
- Thickness Tolerance: Ranges from ±0.2mm to ±0.1mm for precise thickness control.
- Parallelism: Ensures high precision with options of <1 arc minute to <10 arc seconds.
- Bevel: Standard bevel of 0.2mm x 45° for enhanced edge protection.
- Custom Solutions: Custom versions available; send your drawings or specifications for a quotation.
Applications
- Optical Instrumentation: Used in imaging, sensing, and metrology systems requiring high clarity and transmission.
- Laser Systems: Suitable for high-performance laser-grade windows with minimal distortion.
- Medical Devices: Applied in diagnostic and surgical instruments where precision optics are critical.
- Aerospace & Defense: Resistant to harsh environments, ensuring reliable performance in rugged systems.
- Research & Development: Essential for laboratory setups demanding accuracy and repeatability.
Frequently Asked Questions
The TOWER OPTICAL UV Grade Fused Silica Window is a window that is used to isolate different physical environments while allowing light to pass.
The TOWER OPTICAL UV Grade Fused Silica Window is manufactured from BK7, UV Grade Fused Silica, and Sapphire. Other materials are available on a custom basis.
When selecting a window, the properties of the different optical materials, transmission, wavelength range, and resistance to the environment should be considered.
The TOWER OPTICAL UV Grade Fused Silica Window is available in three different quality standards: Standard Grade, High Grade, and Laser Grade.
A variety of anti-reflecting coatings can be deposited on the TOWER OPTICAL UV Grade Fused Silica Window.
