Flat laser windows are essential components in optical systems, serving as protective barriers that allow light to pass through with minimal distortion. These windows are designed to maintain the integrity of laser beams while shielding sensitive equipment from environmental factors.
Understanding Flat Laser Windows

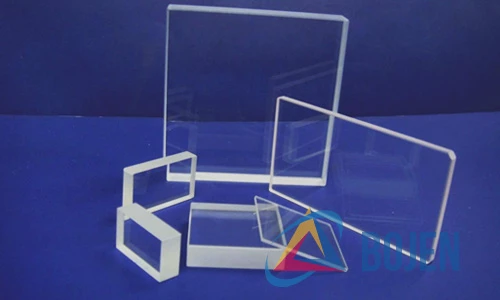

Flat laser windows are optically polished, plane-parallel substrates made from materials with excellent transparency and minimal absorption at specific wavelengths. Their primary function is to transmit laser beams without altering their path or quality. To achieve this, these windows must exhibit high surface quality, precise flatness, and appropriate coatings to minimize reflections and resist laser-induced damage.
Key Materials Used
The performance of a flat laser window heavily depends on the material chosen. Common materials include:
-
Fused Silica: Known for its broad transmission range (185 nm to 2.1 µm) and low thermal expansion, making it suitable for high-power laser applications.
-
N-BK7 Glass: Offers excellent transmission in the visible to near-infrared range (350 nm to 2 µm) and is cost-effective for general-purpose applications.
-
Calcium Fluoride (CaF₂): Provides low absorption and high transmission from 180 nm to 8 µm, ideal for ultraviolet to infrared applications.
-
Sapphire: Extremely hard and durable, with a transmission range of 200 nm to 5 µm, suitable for harsh environments.
-
Magnesium Fluoride (MgF₂): Offers good transmission from 200 nm to 6 µm and is resistant to thermal and mechanical shock.
Coating Options
To enhance performance, flat laser windows often feature anti-reflective (AR) coatings tailored to specific wavelengths. These coatings reduce surface reflections, increase transmission, and improve resistance to laser-induced damage. For instance, V-coated laser windows are designed with AR coatings centered around common lasing wavelengths, providing high damage thresholds suitable for industrial and laser protection applications.
Applications
Flat laser windows are utilized across various industries and applications:
-
Laser Systems: Protect internal components while allowing laser beams to pass through without distortion.
-
Medical Devices: Used in laser-based diagnostic and therapeutic equipment to ensure patient safety and equipment longevity.
-
Industrial Processing: Incorporated into cutting, welding, and engraving machines to shield optics from debris and contaminants.
-
Scientific Research: Employed in laboratories for spectroscopy, interferometry, and other precision measurements.
Selecting the Right Window
When choosing a flat laser window, consider the following factors:
-
Wavelength Compatibility: Ensure the material and coatings are suitable for the laser's operating wavelength.
-
Surface Quality: High surface flatness and low scratch-dig specifications are crucial for minimizing beam distortion.
-
Thermal and Mechanical Properties: Select materials that can withstand the operating environment's temperature and mechanical stresses.
-
Damage Threshold: For high-power applications, choose windows with coatings that can endure the laser's intensity without degradation.
In conclusion, flat laser windows are vital for maintaining the performance and longevity of optical systems. By selecting the appropriate material and coatings, these windows ensure efficient and reliable operation across various applications.
