RMI Parallel Windows - BK7 - UVFS - FS
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Our precision optical components are crafted from a variety of high-quality materials, each chosen for its unique properties and suitability for specific applications. These materials include Zinc Selenide (ZnSe), Zinc Sulfide (ZnS), Germanium (Ge), Silicon, Calcium Fluoride (CaF2), Sapphire, Fused Silica, SF, and BK7. Each material is meticulously processed to ensure optimal performance, with a diameter tolerance of +0.0''/-.010'' and a thickness tolerance of ±.010''. These specifications are designed to meet the rigorous demands of modern optical systems.
Featuring a wedge surface figure of less than 3 arc minutes and a surface quality of 40/20 or better, these components provide exceptional clarity and minimal distortion. The optical components are designed to achieve a surface figure of λ/40 at 10.6µm for materials like ZnSe and ZnS, while others like CaF2 and Sapphire offer a surface figure of λ/4. Fused Silica, SF, and BK7 can achieve even finer surface figures of λ/10 or λ/20, depending on thickness. This precision ensures that over 85% of the surface meets the specified quality standards, making them ideal for high-performance optical applications.
Our components also feature a controlled chamfer of .01'' - .03'' at 45°, ensuring safe handling and integration into optical systems. The optical coatings available for these components enhance their performance across a wide range of wavelengths, from the ultraviolet (UV) to the infrared (IR) spectrum. Narrowband and broadband coatings are available for both IR and UV/VIS/NIR applications, ensuring low reflectance and high transmittance. Our laserline coatings provide exceptional reflectance, achieving R ≥ 99.5% in the IR range and R ≥ 99.7% in the UV/VIS/NIR range.
These specifications are intended as a general reference and may vary based on specific dimensions and customer requirements. Whether you're seeking spherical lenses, cylindrical lenses, or plano/flat optics, our components are engineered to meet the highest standards of precision and performance, suitable for a wide range of optical applications.
RMI Parallel Windows - BK7 - UVFS - FS
Specifications |
|
|---|---|
| Substrate Material: | N-BK7, Fused Silica, UV Grade Fused Silica |
| Antireflection Coating: | Coated, Uncoated |
| Surface Quality: | 10-5 scratch-dig |
| Surface Flatness: | lambda/20 |

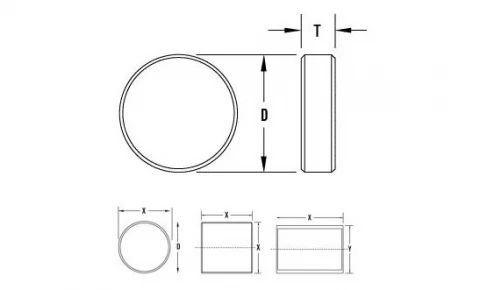

| Diameter And Thickness: | Custom |
Features
- Material Options: ZnSe, ZnS, Ge, Silicon, CaF2, Sapphire, Fused Silica, SF, BK7
- Diameter Tolerance: +0.0''/-.010''
- Thickness Tolerance: ±.010''
- Wedge Surface Figure: < 3 arc min
- Surface Quality: 40/20 for ZnSe, ZnS, Ge, Silicon; 20/10 for CaF2, Sapphire; 10/5 for Fused Silica, SF, BK7
- Surface Figure: λ/40 @ 10.6µm for ZnSe, ZnS, Ge, Silicon; λ/4 for CaF2, Sapphire; λ/10 for Fused Silica, SF, BK7
- Clear Aperture Chamfer: .01'' - .03'' @ 45° for most materials, .02'' @ 45° for some configurations
- Transmittance: > 85%
- Lens Types: Spherical Lens, Cylindrical Lens, Flats/Plano
Applications
- Infrared (IR) and Visible Light Optics: Ideal for lenses, windows, and filters used in IR and visible light systems.
- Laser Systems: Suitable for high-power laser applications requiring precise coatings and surface quality.
- Spectroscopy and Sensing: Used in devices for material analysis, environmental sensing, and scientific instrumentation.
- Optical Communication: Applicable in fiber optics and photonics components where low loss and high transmittance are critical.
- Imaging and Microscopy: Enhances image clarity and resolution through superior surface quality and anti-reflective coatings.
- Precision Measurement: Perfect for interferometry, metrology, and high-accuracy optical setups needing tight tolerances.
- Defense and Aerospace: Used in rugged optical systems requiring durability, environmental stability, and precise performance.
Frequently Asked Questions
Parallel Windows are used for applications in which angular deviation of the transmitted beam must be kept as small as possible.
Parallel Windows are made of various materials including ZnSe, ZnS, Ge, Silicon, CaF2, Sapphire, Fused Silica, and SF.
Round, square, and rectangular windows are available in a wide range of size and shape specifications.
The thickness tolerance of Fused Silica Parallel Windows is λ/20 (thickness dependant).
The surface quality of Parallel Windows is greater than 85%.
