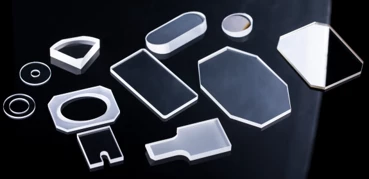

Prisms and Windows

Name: Prisms and Windows
Brand: Singapore Dynamic Optronics
Availability: InStock

Description

Optics manufacturing with thin film coatings (AR, BBAR, Metallic Mirrors, Hot Mirrors and Filters).

Able to bond/cement multiple elements into Doublets, Triplets, x-cubes, Beam-splitters, Trichroic (Phillip) prism assembly (RGB), TIR Air gap prisms, Porro-Abbe prism assemblies and etc.

Specifications

Substrate Material:	N-BK7, Fused Silica, UV Grade Fused Silica, IR Grade Fused Silica
Antireflection Coating:	Uncoated
Diameter:	2 mm
Surface Quality:	Not Specified
Surface Flatness:	Not Specified
Thickness:	1 mm
Size:	2 to 200mm (or 1x1x1mm)
Transmitted Wavefront Deformation:	0.2F
Surface Form:	0.5(0.1)
Parallelism:	1sec
Total Beam Deviation:	1sec
Dimension Tolerance:	±0.03mm
Surface Quality:	ISO 10110 or MIL-PRF-13830B

Download Data Sheet

Features

Manufacture physical optics with coatings, bonding and blackening/painting.

Processes to manufacture Micro-optics smaller than 1.8mm diameter to mature in Sep-2022.

Cylinder Rod Lenses, Glass/Chalcogenides/Plastic Aspheres (Molded and Diamond Turning) and sub-assemblies.

Made in Singapore.

Applications

Visible, UV, X-Ray, Deep UV. Cameras, Microscopy, Machine Vision, Augmented Reality AR, IoT, Laser optics, Imaging, Medical, Light focussing, propagation, polarization, Biomedical, Waveguides, Telecommunication, Holography, Disinfection Lighting, Defense and Military

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Singapore

Sold by:

Singapore Dynamic Optronics

On FindLight:

since 2022

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What types of coatings are available for the prisms and windows?

We offer thin film coatings such as AR (anti-reflective), BBAR (broadband anti-reflective), Metallic Mirrors, Hot Mirrors, and Filters.

Can you bond/cement multiple elements together to create different configurations?

Yes, we are able to bond/cement multiple elements into Doublets, Triplets, x-cubes, Beam-splitters, Trichroic prism assembly (RGB), TIR Air gap prisms, Porro-Abbe prism assemblies, and more.

What are the applications for these prisms and windows?

Our prisms and windows have a wide range of applications including cameras, microscopy, machine vision, augmented reality (AR), IoT, laser optics, imaging, medical equipment, light focusing and propagation, polarization, biomedical research, waveguides, telecommunication, holography, disinfection lighting, defense, and military.

Are there any size limitations for the optics you manufacture?

We are capable of manufacturing micro-optics smaller than 1.8mm in diameter, with this process expected to be fully mature by September 2022.

Where are these prisms and windows manufactured?

Our prisms and windows are proudly made in Singapore.
