Description
HORIBA Jobin Yvon has produced a wide range of ruled master gratings from which we manufacture high precision replicas. Dimensions of our high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
Ruled Plane Grating 510 48
Specifications
Groove Density: | 100 l/mm |
---|---|
Blaze Wavelength: | 450 nm |
Substrate Material: | Custom, Metallic, ULE, Zerodur, Fused Silica, NBK7, Pyrex |
Dimension (Length): | 110 mm |
Dimension (Height): | 110 mm |
Dimension (Thickness): | 16 mm |
Applications
Monochromators and Spectrographs
Raman Spectrometers
Spectroscopy
Beam isolation
Frequently Asked Questions
What is the efficiency performance of the ruled plane gratings?

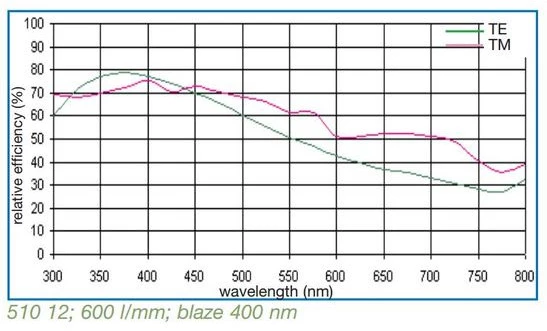

The efficiency performance of the ruled plane gratings varies depending on the specific model. Efficiency curves are provided for reference only and do not indicate grating specifications.
What materials can be used for the substrate of the ruled plane gratings?
Standard substrate material is Pyrex, but on request, substrates including fused silica, Zerodur, ULE, metals, or other materials can be considered.
What are ruled plane gratings used for?
Ruled plane gratings are used in monochromators and spectrographs, Raman spectrometers, spectroscopy, and beam isolation.
What is the commitment to quality for HORIBA Jobin Yvon?
HORIBA Jobin Yvon is ISO9001:2000 certified and is committed to customer satisfaction and product quality.
What are the dimensions of the high-precision replica gratings?
The dimensions of the high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
