Description
HORIBA Jobin Yvon has produced a wide range of ruled master gratings from which we manufacture high precision replicas. Dimensions of our high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
Ruled Plane Grating 510 36
Specifications
Groove Density: | 75 l/mm |
---|---|
Blaze Wavelength: | 4000 nm |
Substrate Material: | Custom, Metallic, ULE, Zerodur, Fused Silica, NBK7, Pyrex |
Dimension (Length): | 110 mm |
Dimension (Height): | 110 mm |
Dimension (Thickness): | 16 mm |
Applications
Monochromators and Spectrographs
Raman Spectrometers
Spectroscopy
Beam isolation
Frequently Asked Questions
What is the typical efficiency performance of ruled plane gratings?

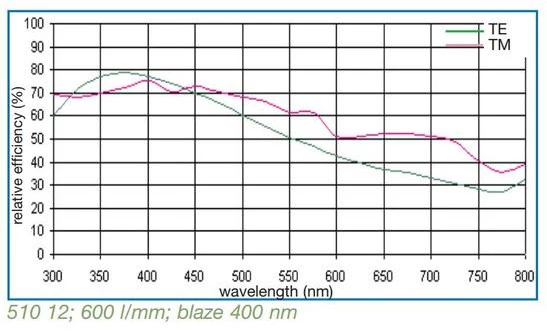

The typical efficiency performance of ruled plane gratings varies depending on the specific grating. Efficiency curves are provided for reference, but do not indicate grating specifications.
What is the size range for ruled plane gratings?
The dimensions of high-precision replica gratings typically range from 25x25 mm up to 120x140 mm, with various sizes available in between. A size table is provided for reference.
What materials can be used for the substrate of ruled plane gratings?
Standard substrate material is Pyrex, but fused silica, Zerodur, ULE, metals, or other materials can be considered upon request.
What are ruled plane gratings used for?
Ruled plane gratings are used in monochromators and spectrographs, Raman spectrometers, spectroscopy, and beam isolation.
What is the commitment to quality for HORIBA Jobin Yvon?
HORIBA Jobin Yvon is ISO9001:2000 certified and committed to customer satisfaction and product quality.
