Description
HORIBA Jobin Yvon has produced a wide range of ruled master gratings from which we manufacture high precision replicas. Dimensions of our high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
Ruled Plane Grating 510 11
Specifications
Groove Density: | 600 l/mm |
---|---|
Blaze Wavelength: | 300 nm |
Substrate Material: | Custom, Metallic, ULE, Zerodur, Fused Silica, NBK7, Pyrex |
Dimension (Length): | 110 mm |
Dimension (Height): | 110 mm |
Dimension (Thickness): | 16 mm |
Applications
Monochromators and Spectrographs
Raman Spectrometers
Spectroscopy
Beam isolation
Frequently Asked Questions
What is the efficiency performance of ruled plane gratings?

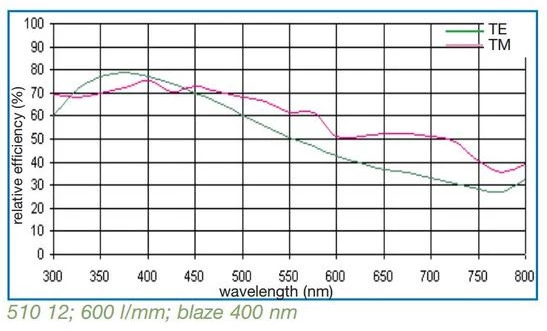

The efficiency performance of ruled plane gratings varies depending on the specific grating. Efficiency curves for three different gratings are provided in the datasheet, but these are theoretical efficiencies calculated using rigorous electromagnetic theory and do not indicate grating specifications.
What materials and coatings are available for ruled plane gratings?
Standard substrate material is Pyrex, but substrates including fused silica, Zerodur, ULE, metals, or other materials can be considered upon request. Standard coating is aluminum, but AlMgF2, gold, or platinum are also available for an additional cost.
What is the commitment to quality offered by HORIBA Jobin Yvon?
HORIBA Jobin Yvon offers complete customer service, including expert technical advice for optimizing system configurations to meet customers’ needs. They are ISO9001:2000 certified and committed to customer satisfaction and product quality.
What are ruled plane gratings?
Ruled plane gratings are high precision replicas of ruled master gratings produced by HORIBA Jobin Yvon, with dimensions typically ranging from 25x25 mm up to 120x140 mm.
What are the applications of ruled plane gratings?
Ruled plane gratings are used in monochromators and spectrographs, Raman spectrometers, spectroscopy, and beam isolation.
