Description
Teledyne Acton Optics presents VUV/UV Broadband Metallic Beamsplitters, a superior solution designed for low power applications in the wavelength ranges of 120-300nm. These beamsplitters are meticulously engineered for a 45° angle of incidence, ensuring optimal performance in various optical setups.

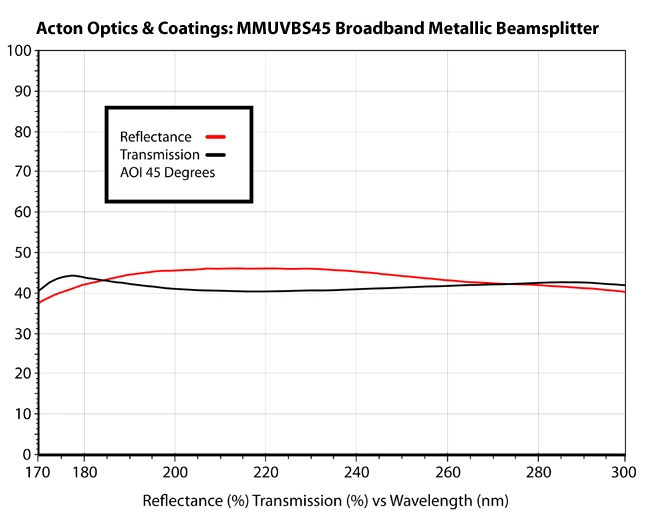

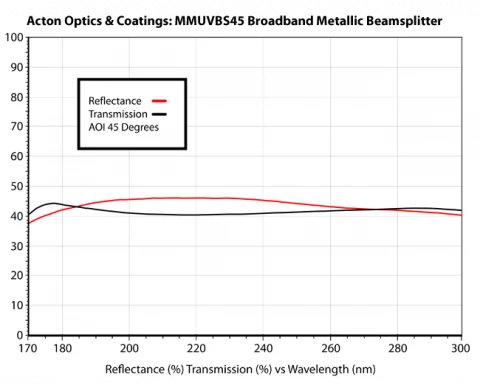

The MVUVBS45 beamsplitter offers vacuum UV transmittance & reflectance averaging 32–42% from 120 nm to 240 nm, while the MMUVBS45 beamsplitter provides middle UV transmittance & reflectance averaging 40–50% from 170 nm to 320 nm.
VUV-UV Broadband Metallic Beamsplitter 170 - 300nm MMUVBS45-.5D (0.5" Diameter)
Specifications
| Largest Dimension: | 12.7 mm |
|---|---|
| Thickness: | Not Specified |
| Substrate: | UV Fused Silica |
| Wavelength Range: | 170 – 300 nm |
| Average Transmission & Reflectance: | 40-50 % |
| Angle Of Incidence (AOI): | 45 degrees |
Download Data Sheet
Features
- Broadband Performance: Delivers consistent performance in the VUV/UV range, ensuring reliable beam splitting
- S&P Polarization Information: Available based on simulations and actual data, enhancing customization options
- Versatile Substrates: Compatible with laser-grade UV fused silica substrates for MMUVBS coatings and UV-grade MgF2 for MVUVBS coatings
- Customization: Coatings can be applied to Acton standard mirror blanks, custom substrates, and customer-supplied material (CSM)
Applications
- Analytical Instruments: Ideal for low power applications in analytical instruments requiring precise wavelength separation
- UV Spectroscopy: Enhances the capabilities of UV spectroscopy setups by providing efficient beam splitting
- Research and Development: Perfect for research environments where specific wavelength ranges need to be isolated for experimentation
