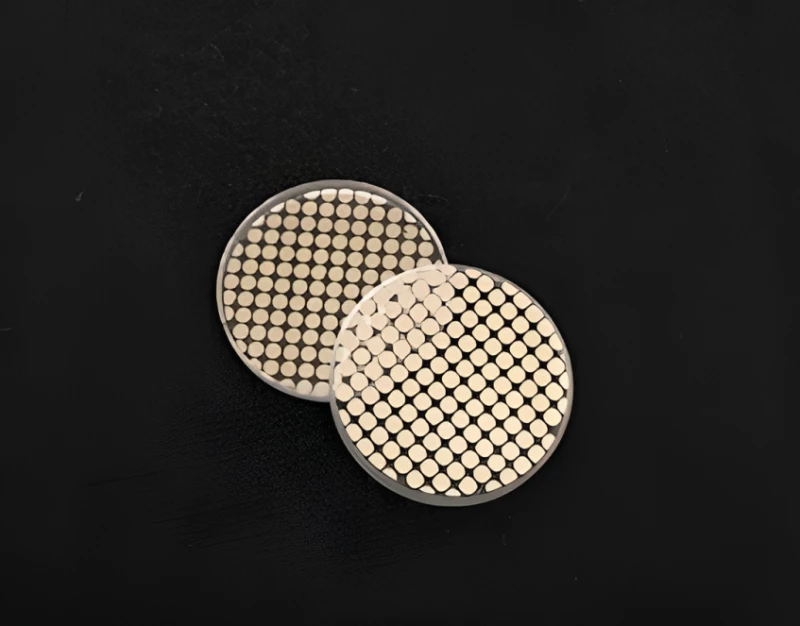

UV-NIR Polka-Dot Beamsplitter 250 - 2500nm PBS-2500-2D (2.0" Diameter)

Visit the Teledyne Acton Optics Store

Specifications

Largest Dimension: 50.8 mm
Thickness: 4 mm
Substrate: UV Fused Silica
Wavelength Range: 250 – 2500 nm
Scratch/Dig: 20-10
Clear Aperture: 90 %
Angle Of Incidence (AOI): 0-45 degrees
Parallelism: 3 arc min
Ratio: 50/50
Surface Quality: better than 2 waves @ 633nm both sides
Chamfer: 0.5mm x 45 degrees
Document icon Download Data Sheet Download icon

Features


  • Broadband Performance: Unique broadband performance from 190 nm to 2500 nm via the Acton #1900 coating process

  • Insensitivity to Angle: Operates consistently across various angles of incidence, ensuring reliable performance in different setups

  • Durable Construction: Made from high-quality UV fused silica with precise diameter and thickness tolerances

  • No Divergence or Diffraction Effects: Offers clear, undistorted light transmission without unwanted effects

Applications


  • Precision Optical Systems: Suitable for high-precision optical setups requiring reliable beamsplitting

  • Spectrometers: Enhances the performance of spectrometric instruments for accurate analysis

  • Medical Systems: Used in medical devices and diagnostic tools for efficient light manipulation
