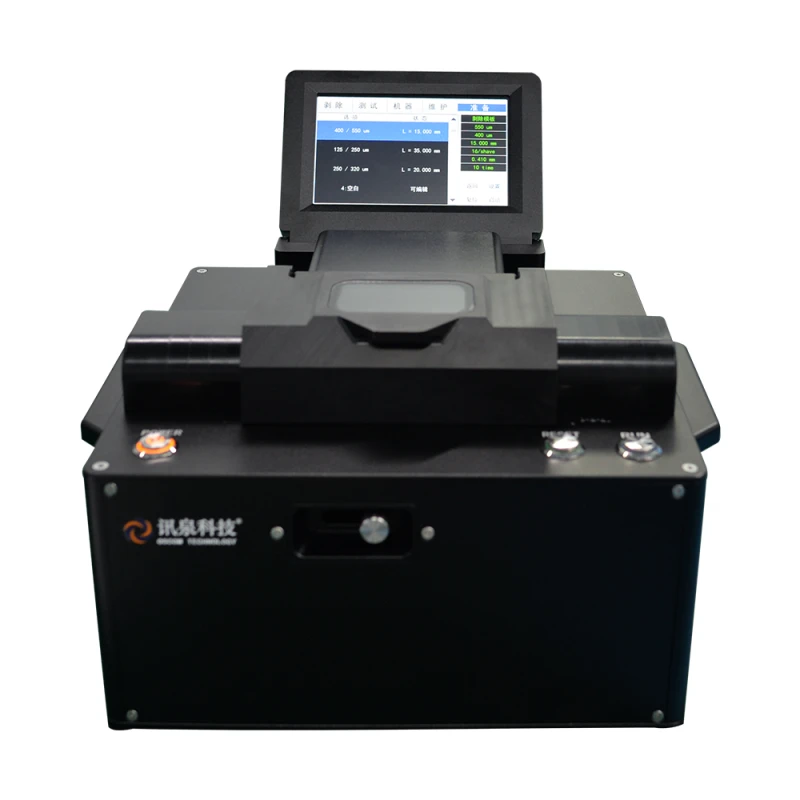

Thumbnail of OSCOM TECHNOLOGY - Mechanical Automatic Fiber Stripper - XQ7510B1 photo 1

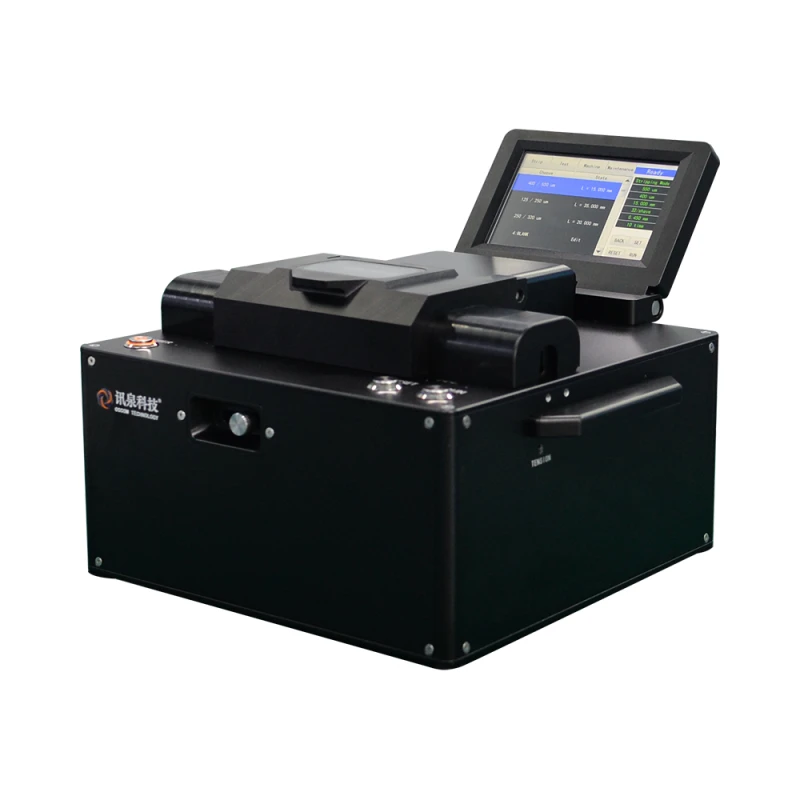

Thumbnail of OSCOM TECHNOLOGY - Mechanical Automatic Fiber Stripper - XQ7510B1 photo 2

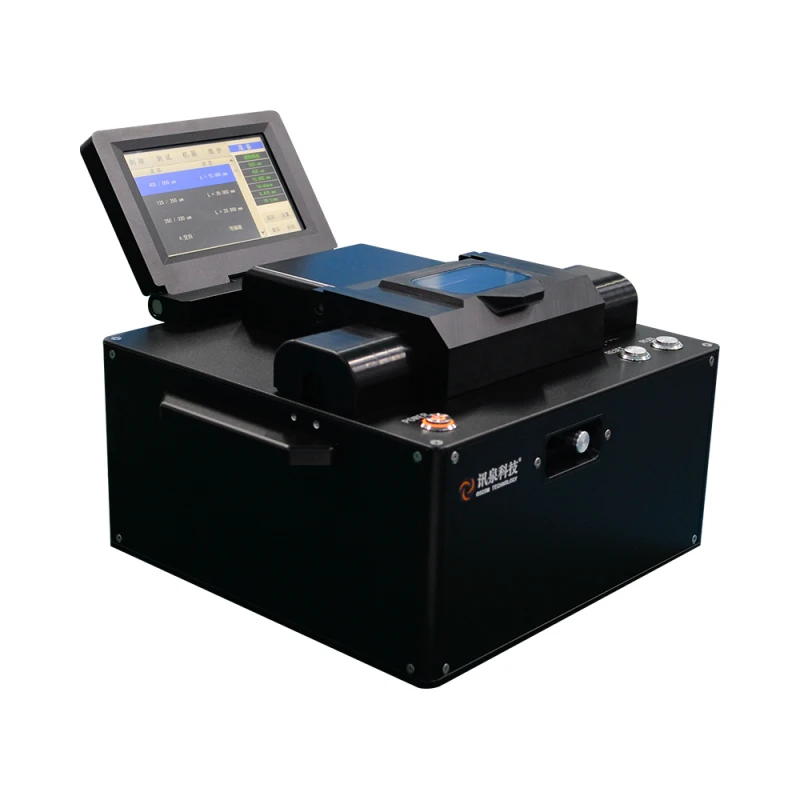

Thumbnail of OSCOM TECHNOLOGY - Mechanical Automatic Fiber Stripper - XQ7510B1 photo 3

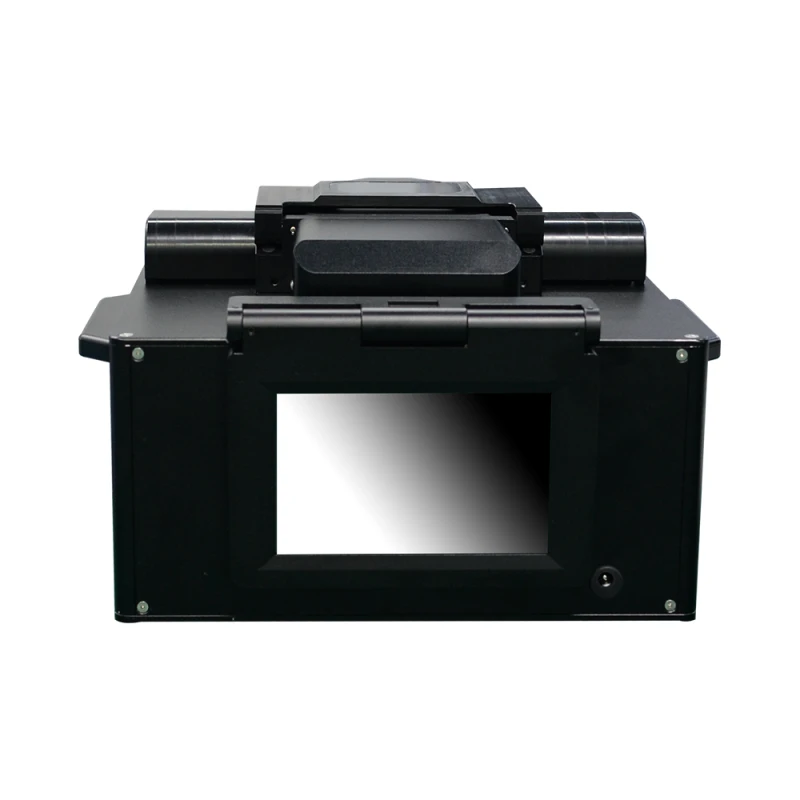

Thumbnail of OSCOM TECHNOLOGY - Mechanical Automatic Fiber Stripper - XQ7510B1 photo 4

Description

XQ7510B1 is an automatic fiber coating stripping device which is designed by OSCOM. After both ends of the fiber are fixed by mechanical blade stripping method, it can meet the non-damage stripping of fibers of different diameters by setting the rotation of the fiber and the motion parameters of the blade. After stripping, the stripped coating edge faces of the fiber is smooth and vertebrae, and there is no residue scarp chippings in the stripping area. It improves the fiber coating stripping quality greatly. XQ7510B1 uses intelligent touch screen function and adaptive a wide variety of fibers. It is convenient and fast to use, and can meet the requirements of scientific research institutions and production enterprises for stripping fiber coating automatically.

OSCOM TECHNOLOGY - Mechanical Automatic Fiber Stripper - XQ7510B1

Visit the Shenzhen Oscom Technology Co., Ltd Store

Specifications

Accepted Fibers: Common Quartz
Cladding Diameter: 60 – 1200 um
Coating Diameter: 80 – 1500 um
Stripping Length (max): 35 mm
Parameters: XQ7510B1
Accepted Fibers: Common quartz fiber
Fiber Types: Single fiber stripping
Cladding Diameter: Φ60-1200μm
Coating Diameter: Φ80-1500μm
Stripping Length: 35mm (MAX)
Stripping Time: Coating removing action X 4:30s/ Coating removing action X 8:60s/ Coating removing action X 12:90s
Blade Life: 480 fibers@coating removing action X4
Operating Conditions: Temperature: 0-40℃/Humidity: 5-95%RH
Power Supply: DC power adapter: 12V 3A
Dimensions (LxWxH): 232x248.5x158mm
Weight: 6.5Kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • A wide variety of adaptive fibers.
  • Touch screen adjustment interface, humanized operation process.
  • You can adjust a wide range of parameters and fine-tune configuration attributes.
  • Automatic fiber stripping process, safe use, reliable quality

Applications

  • Industrial Lasers
  • Optical Fiber Communication
  • Optical Fiber Sensing
  • Biomedicine
  • Laser Radar
  • Military Industry

Frequently Asked Questions

What is the XQ7510B1 fiber stripper?
The XQ7510B1 fiber stripper is an automatic fiber coating stripping device designed by OSCOM for stripping fibers of different diameters using a mechanical blade stripping method.
What types of fibers does the XQ7510B1 fiber stripper accept?
The XQ7510B1 stripper accepts common quartz fibers and is designed for single fiber stripping.
What are the cladding and coating diameter ranges for the XQ7510B1 fiber stripper?
The cladding diameter range is Φ60-1200μm and the coating diameter range is Φ80-1500μm.
How long does the stripping process take with the XQ7510B1 coating stripper?
The stripping time varies based on the coating removing action: X4 takes 30 seconds, X8 takes 60 seconds, and X12 takes 90 seconds.
What is the blade life of the XQ7510B1 fiber stripper?
The blade life is approximately 480 fibers for the coating removing action X4.
What are the operating conditions for the XQ7510B1 coating stripper?
The operating conditions are a temperature range of 0-40℃ and humidity range of 5-95% RH.
What are the dimensions and weight of the XQ7510B1 fiber stripper?
The dimensions are 232x248.5x158mm and it weighs 6.5Kg.

Got more questions? Use the inquiry form to ask the supplier directly.
