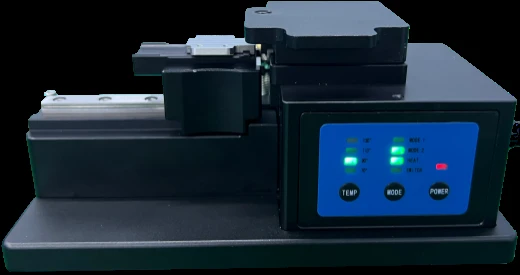

Heating Stripper for Optical Fiber Coatings XQ7530

Name: Heating Stripper for Optical Fiber Coatings XQ7530
Brand: Shenzhen Oscom Technology Co., Ltd
Availability: InStock

Description

The XQ7530 Heating Stripper from Shenzhen Oscom Technology Co., Ltd. is a sophisticated tool designed for the efficient stripping of various optical fibers. This device is engineered to cater to both high-volume production environments and research settings, offering a balance of stability and flexibility. With its ability to customize temperature and mode settings, the XQ7530 ensures precise and efficient stripping of fiber coatings through its advanced electrothermal stripping mechanism.

At the heart of the XQ7530 fiber stripper is a thermocouple-controlled heating sheet, which provides consistent and reliable heating necessary for stripping operations. This ensures that the device maintains the required stability for production while allowing for flexible adjustments during research and development. The user-friendly design of the XQ7530 makes it easy to operate, even for those new to fiber stripping technology.

The XQ7530 stripper is crafted with high-quality materials, including a brass heating table and an aluminum alloy shell, ensuring durability and longevity. Its compact dimensions and lightweight design make it a convenient addition to any workspace. Whether you are dealing with a range of fiber types or require specific temperature settings, the XQ7530 Heating Stripper is equipped to meet your needs with precision and efficiency.

Specifications

Accepted Fibers:	Unspecified
Cladding Diameter:	125 – 1000 um
Stripping Length (max):	45 mm
Strip Method:	Heating Stripping
Slide Table Travel:	45mm
Strip Temperature:	70, 90, 100, 120℃
Heating Table Material:	Brass
Optical Fiber Clamping:	Magnetic Adsorption
Power Supply:	12V/DC, 3A Adapter
Positioning Hole Size:	0.4mm
Shell Material:	Aluminum alloy
Strip Mode:	Constant temperature, Variable temperature
Heating Groove Size:	0.6mm (Radius), 36mm (Length)
Operating Environment:	-25-45℃/30-80%RH
Dimensions（LxWxH）:	150x75x72mm
Weight:	0.8Kg
Operating Way:	Manual

Download Data Sheet

Features

Multi-mode Control: The XQ7530 Heating Stripper offers versatile control options, making it suitable for a wide range of applications.
Flexible Temperature Adjustment: Customize the temperature settings to accommodate various fiber types, ensuring optimal performance.
Accurate Mechanical Positioning: Benefit from precise positioning and fast heating efficiency for improved productivity.
User-friendly Operation: Designed for ease of use, the stripping process is straightforward and efficient.
Manual Operation: The device operates manually, providing hands-on control for users.
Heating Stripping Method: Utilizes a heating method to strip optical fiber coatings effectively.
Adjustable Strip Temperature: Choose from temperatures of 70, 90, 100, or 120℃ to suit your needs.
Durable Construction: Made with a brass heating table and aluminum alloy shell for long-lasting durability.
Wide Fiber Compatibility: Accepts fibers ranging from 125 to 1000μm in diameter.
Magnetic Adsorption Clamping: Ensures secure optical fiber clamping during the stripping process.
Compact and Lightweight: With dimensions of 150x75x72mm and a weight of 0.8kg, it's easy to handle and store.
Customizable Strip Mode: Offers constant and variable temperature modes for tailored stripping operations.
Environmentally Adaptable: Operates efficiently in environments ranging from -25 to 45℃ with 30-80% relative humidity.
Power Supply: Powered by a 12V/DC, 3A adapter for reliable performance.
