Description
Introducing the TEC Fiber Beam Expander (XQ71C0)
The TEC Fiber Beam (Core) Expander (XQ71C0) is a cutting-edge solution designed to enhance the core of various fiber types. This innovative device is engineered to provide precise core expansion, utilizing either single or double-operating positions to achieve simultaneous expansion and firing. The XQ71C0 allows for the customization of core expanding process parameters tailored to different optical fibers, ensuring optimal performance and efficiency. With its user-friendly interface, the XQ71C0 offers a stable and reliable operation, making it an indispensable tool for professionals in the fiber optics industry.
Unmatched Efficiency and Ease of Use

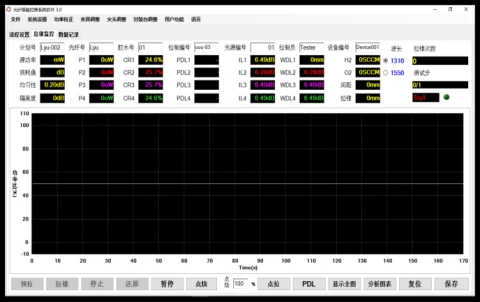

The XQ71C0 stands out for its high expanding efficiency, which is crucial for applications requiring rapid and accurate fiber core expansion. The device's software enables users to set firing flow and firing time, providing flexibility and control over the expansion process. This level of customization ensures that the XQ71C0 can meet the specific needs of various fiber types, making it a versatile addition to any optical fiber processing setup. Its intuitive design and ease of use make it accessible to both seasoned professionals and newcomers to the field.
Precision and Reliability in Fiber Core Expansion

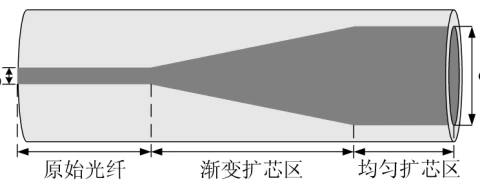

One of the key features of the XQ71C0 is its ability to deliver a uniform core expansion area, which is essential for maintaining the integrity and performance of optical fibers. The device's robust construction and reliable performance ensure consistent results, minimizing the risk of errors and enhancing the quality of the expanded fibers. Whether you are working with original fibers or those requiring gradual change core expansion, the XQ71C0 provides the precision and reliability needed to achieve superior outcomes in fiber optics applications.

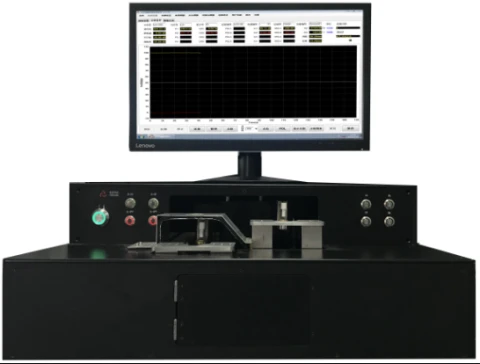

TEC Fiber Beam Expander XQ71C0 for Optical Fiber Core Expansion
Specifications
| Diameter Expansion Range: | 1 – 20 um |
|---|---|
| Model: | XQ71C1 XQ71C2 XQ71C3 |
| Operating Position: | Single-operating position, Double-operating position |
| Single Expanding Quantity: | 4PCS 8PCS 4CS |
| Fiber Placement Method: | Magnetic adhesion/Vacuum adsorption |
| Heater Flame Quantity: | 1 2 1 |
| Hydrogen Flow Range: | 0-300sccm |
| Oxygen Flow Range: | 0-100sccm |
| Operating Environment: | Temperature: 23±3℃ / Humidity: 50-70%RH |
| Operating Power Supply: | AC100-240V/50-60Hz/5A |
| Dimensions (L×W×H): | 610x496x230 mm 450x400x230 mm |
| Weight: | 35 kg 22.3 kg |
Download Data Sheet
Features
- High Efficiency Fiber Expansion: The TEC Fiber Core Expander (XQ71C0) is designed for efficient core expansion of various fiber types, ensuring high precision and reliability.
- Flexible Operating Positions: Offers both single and double-operating positions for simultaneous expansion and firing, adaptable to different fiber requirements.
- Customizable Process Parameters: Allows for the design of specific core expanding process parameters, with adjustable firing flow and time via software.
- Stable and Reliable Performance: Engineered for stability and ease of use, providing consistent results in fiber core expansion.
- Advanced Fiber Placement Methods: Utilizes magnetic adhesion and vacuum adsorption for secure fiber placement during the expansion process.
- Versatile Model Options: Available in large and small models (XQ71C1, XQ71C2, XQ71C3) to suit different operational needs and capacities.
- Precise Control of Gas Flow: Features a hydrogen flow range of 0-300 sccm and an oxygen flow range of 0-100 sccm for optimal expansion conditions.
- Robust Operating Environment: Designed to operate efficiently at temperatures of 23±3℃ and humidity levels of 50-70% RH.
- Compact and Lightweight Design: The expander is available in dimensions of 610x496x230 mm and 450x400x230 mm, with weights of 35 kg and 22.3 kg, respectively.
- Comprehensive Configuration: Includes fiber holders, separated heaters, and optional vacuum pumps and online CCD monitoring for enhanced functionality.
Applications
- Fiber Optic Network Installation: The TEC Fiber Beam (Core) Expander is ideal for expanding the core of optical fibers, making it suitable for fiber optic network installations where precise core expansion is required.
- Telecommunications: With its ability to handle various fiber types and expand core diameters from 1-20μm, this product is perfect for telecommunications applications that demand high efficiency and reliability.
- Research and Development: The XQ71C0 model is equipped with software-controlled parameters, making it an excellent choice for R&D environments where custom core expansion processes are needed.
- Manufacturing: The high expanding efficiency and stable operation of the TEC Fiber Core Expander make it suitable for manufacturing processes that involve fiber optics.
- Optical Fiber Testing: The product's configuration options, such as magnetic adhesion and vacuum adsorption, allow for precise fiber placement, essential for accurate optical fiber testing.
- Educational Purposes: The device's user-friendly interface and reliable performance make it a valuable tool for educational institutions teaching fiber optics technology.
- Custom Optical Solutions: With features like online CCD monitoring and separated heaters, the TEC Fiber Core Expander can be used to develop custom optical solutions tailored to specific needs.
Frequently Asked Questions
What is the TEC Fiber Beam (Core) Expander (XQ71C0) used for?
What are the operating positions available for the XQ71C0?
What is the fiber expanded diameter range for the XQ71C0?
What methods are used for fiber placement in the XQ71C0?
What is the operating environment for the XQ71C0?
What is the power supply requirement for the XQ71C0?
What are the dimensions and weight of the XQ71C0?
