Description

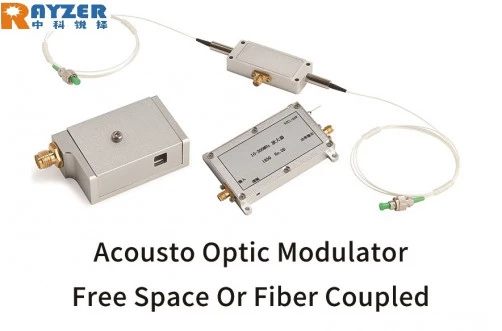

CSRayzer offers acousto-optic modulators with fast modulation speed, low insertion loss, high extinction ratio, low power consumption, good temperature stability and high performance reliability, with wavelength range from 300 nm to 2000 nm, and frequency range from 35 MHz to 300 MHz.
The AOM could be in free space, or fiber coupled type.
Acousto-Optic Modulator 1064nm 200MHz Fiber Hi1060
Specifications
| Center Wavelength: | 1064 nm |
|---|---|
| Operational Wavelength Range: | 1030 – 1090 nm |
| Acoustic Mode: | Longitudinal |
| Operating Frequency: | 200 MHz |
| Light Polarization: | Not Specified |
| Optical Power Density: | 0.5 KW/cm2 |
| Deflection Angle: | 12.66 mrad |
| Fiber Type: | Hi 1060 |
| Rise/fall Time: | 10 ns |
Download Data Sheet
Features
- Low Insertion Loss
- Compact Size
- Stable Performance
- Customized configuration Available
- Low and efficient Cost
Applications
- Ultrafast Picosecond and Femtosecond fiber Laser system
- Optical Switch
- Acousto-Optic Frequency Shifter
- Laser Pulse Picker
- Amplitude Modulation
- etc.
