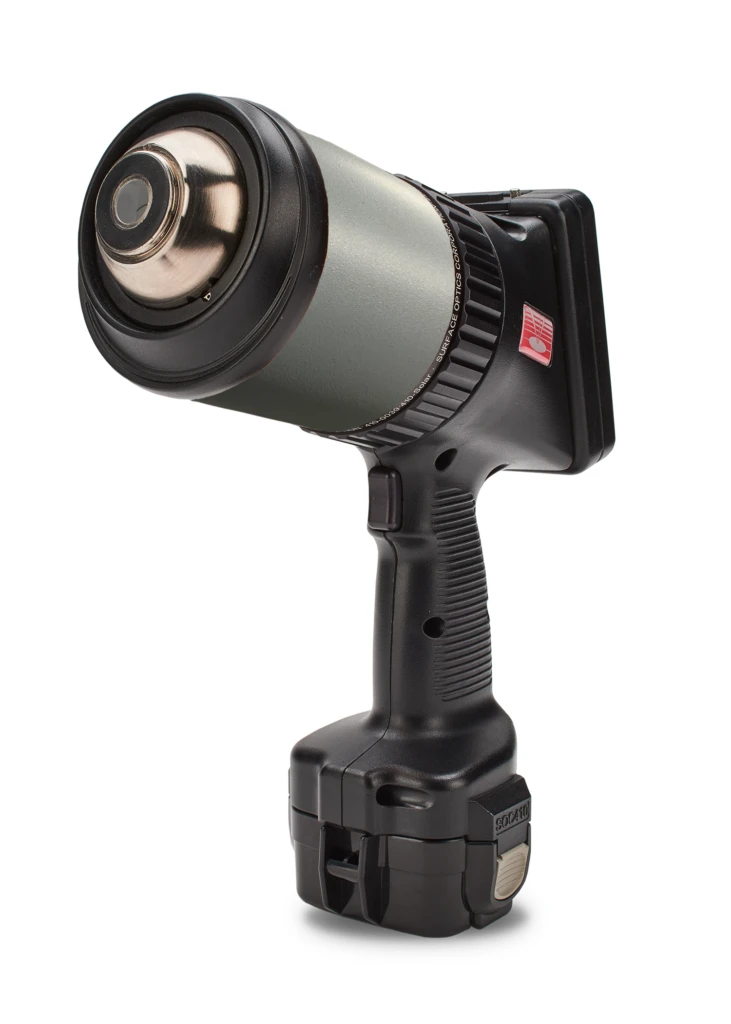

410-LIDAR Reflectometer

Visit the Surface Optics Corp Store

Specifications

Wavelength Bands: 480-600 nm, 590-720 nm, 700-1100 nm, 1000-1700 nm
Angle Of Incidence (from Normal): 20 deg
Accuracy: 0.02 (abs. refl. units)
Repeatability: 0.005 units
Beam Spot Size: 12.7 mm
Measurement Time: 7 sec
Measured Parameter:: Directional hemispherical reflectance (DHR)
Measured Value:: Absolute reflectance (0-1)
Calculated Value:: Total reflectance, absorptance
Wavelength Bands:: 850nm, 905nm, 940nm and 1550nm
Angle Of Incidence:: 20º from normal incidence
Calibration Coupon:: Glazed Ceramic
Accuracy:: +/- .02
Repeatability:: ± .005 units
Beam Spot Size:: 0.50 inches
Measurement Time:: 7 sec
Sample Size & Geometry:: Flat: ≥ 0.5 in. diameter Curved: 6 in. convex; 12 in. concave
Warm Up Time:: 90 seconds
Time Between Measurements:: 2 seconds
Sample Temperature:: Ambient or heated/cooled to 0 – 100º C
Operating Temp:: 0º to 40º C
Run Time:: 2 hours on one battery

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Four Discrete Bands: Provides in-band reflectance data for four discrete bands: 850nm, 905nm, 940nm and 1550nm wavelengths.
  • Fast Calibration: One minute calibration at start of measurement session.
  • One Measurement: Collects data at all wavebands in a single 7 sec. measurement.
  • Band Customization: Add or replace stock bands with custom wavelengths.
  • Cleanable Calibration Coupon: Calibration coupon can be wiped clean.
  • Immediate Data: Touch screen display for data review and management.

Applications

  • Field Measurements: Monitor drift in calibrated reflectance values of outdoor targets.
  • Lab Measurements: In house calibration and reporting at Lidar wavelengths.
  • Product Qualification: LiDAR sensor characterization.
  • Large Target Measurements: Measure multiple spots on large lidar calibration targets.
