Optical Interrogators

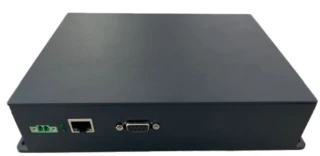

The FBG Wavelength Interrogator AGSWA is designed to be robust, reliable and long term filed operation for FBG sensing system. Based on built-in wavelength analysis module, AGSWA can update the data in high accuracy and high frequency. AGSWA responds directly to the user commands of the optical interrogator core and outputs sensor ...
  • Measurement Capability: Strain, Pressure, Temperature, Displacement, Vibration
  • Number Of Optical Channels: 1, 2, 4, 8, 16
  • Scan Frequency: 5000 Hz
  • Wavelength Range: 1510 - 1590 nm
  • Wavelength Accuracy: 1 pm
  • ...
Data Sheet
Advanced FBG Fabry Perot FBG Cavity
QPS Photronics Inc
Advanced FBG Fabry Perot FBG Cavity and its system integration.
  • Measurement Capability: Vibration
  • Number Of Optical Channels: --
  • Scan Frequency: 300000 Hz
  • Wavelength Range: 1530 - 1562 nm
  • Wavelength Accuracy: 10 pm
  • ...
Data Sheet
AOMS Outdoor ODAQ™ is a fully integrated multichannel fiber optic data acquisition system within a customized NEMA-3R enclosure. The unit can be used for monitoring multiple sensor cables of different types. Outdoor ODAQ™ is a stand-alone unit which includes a fiber optic interrogation system, NEMA-3R enclosure with ...
  • Measurement Capability: Strain
  • Number Of Optical Channels: 144
  • Scan Frequency: 1000 Hz
  • Wavelength Range: 1 - 1 nm
  • Wavelength Accuracy: -- pm
  • ...
Data Sheet
AOMS Indoor ODAQ™ is a fully integrated multi-channel fiber optic data acquisition system for indoor and controlled environment applications. The unit can be used for monitoring multiple sensor cables of different types. Indoor ODAQ™ is a stand-alone unit which includes a fiber optic interrogation syste and AOMS ...
  • Measurement Capability: Strain
  • Number Of Optical Channels: 144
  • Scan Frequency: 1000 Hz
  • Wavelength Range: 1 - 1 nm
  • Wavelength Accuracy: -- pm
  • ...
Data Sheet
Built upon the Micron Optics x25 optical interrogator core, the sm125 Optical Sensing Interrogator features a high power, low noise swept wavelength laser, realized with Micron Optics patented Fiber Fabry-Perot Tunable Filter technology.  The x25 interrogator core employs full spectral scanning and data acquisition, providing ...
  • Measurement Capability: Strain, Pressure, Temperature, Displacement
  • Number Of Optical Channels:
  • Scan Frequency: 2 Hz
  • Wavelength Range: 1,510 - 1,590 nm
  • Wavelength Accuracy: 1 pm
  • ...
Data Sheet
The si255 is an industrial grade fan-less optical sensing interrogator.Featuring both static and dynamic full spectrum analysis, the si155 provides long-term, reliable and accurate measurements of hundreds of sensors on 4, 8 or 16 parallel, 160 nm wide channels. The si255 features a high power, low-noise, ultra-wide swept wavelength ...
  • Measurement Capability: Strain, Pressure, Temperature, Displacement
  • Number Of Optical Channels: 16
  • Scan Frequency: 5,000 Hz
  • Wavelength Range: 1,460 - 1,620 nm
  • Wavelength Accuracy: 1 pm
  • ...
Data Sheet

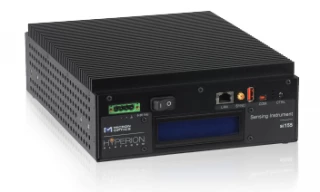

The si155 is an industrial grade fan-less optical sensing interrogator.Featuring both static and dynamic full spectrum analysis, the si155 provides long-term, reliable and accurate measurements of hundreds of sensors on 4 parallel, 160 nm wide channels.  The si155 features a high power, low-noise, ultra-wide swept wavelength ...
  • Measurement Capability: Strain, Pressure, Temperature, Displacement
  • Number Of Optical Channels: 1 or 4
  • Scan Frequency: 1,000-5,000 Hz
  • Wavelength Range: 1,460 - 1,620 nm
  • Wavelength Accuracy: 1 pm
  • ...
Data Sheet

Did You know?

Fiber optic interrogators, also known as optical sensing interrogators, are fiber optic based devices allowing for high accuracy absolute measurements of strain, temperature, displacement, pressure, etc. An optical interrogator can be composed of various types of sensors that are able to acquire data simultaneously and at different sampling rates. These devices are often used in determining the integrity of structures likes bridges, dams, and mines or inspecting oil pipeline conditions. Optic interrogators also find applications in aerospace testing and manufacturing, industrial measurements, and medical devices.
