Description

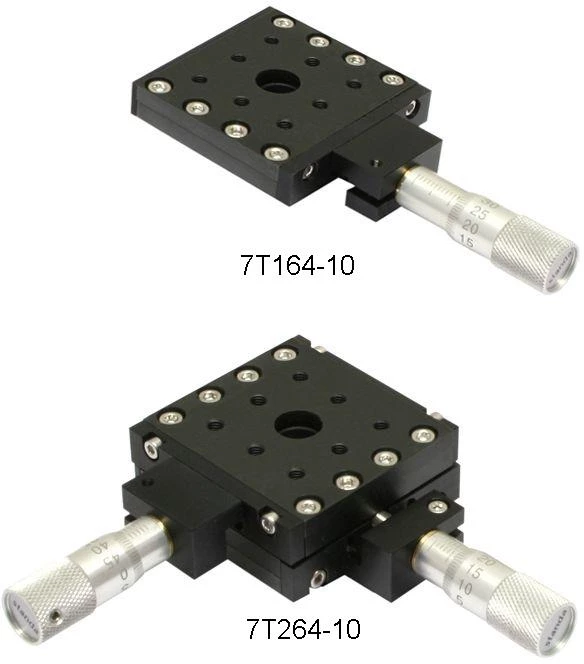

Ultra Low Profile Two Axis 7T264-10 and Single Axis 7T164-10 Translation Stages. The height of single axis translation stage is 10.5 mm and two axis translation stage - 20 mm. To match the low height of the stage Thin Micrometers 9S55M-10 with small knob diameter (13 mm) are used as driving screws. It is possible to easily combine 7T264-10, 7T164-10 and angle bracket 2AB164 to have 3 axis translation system. Difference between models 7T164-10 and 7T164-10U is that the 7T164-10U has a reversed central hole compared to the 7T164-10. Although the system looks very light and thin, it is very reliable and precise.
STANDA 7T164-10 - Ultra Low Profile Steel Translation Stage
Specifications
| Travel Range: | 10 mm |
|---|---|
| Load Capacity (Horizontal): | 6 kg |
| Load Capacity (Vertical): | 3 kg |
| Tracking Accuracy: | 2 um |
| Reading Accuracy: | 5 um |
| Sensitivity: | 1 um |
Download Data Sheet
Frequently Asked Questions
What is the height of the single axis translation stage?
The height of the single axis translation stage is 10.5 mm.
What is the difference between models 7T164-10 and 7T164-10U?
The difference between models 7T164-10 and 7T164-10U is that the 7T164-10U has a reversed central hole compared to the 7T164-10.
What is the sensitivity of the translation stage?
The sensitivity of the translation stage is 1 µm.
What is the load capacity of the translation stage?
The load capacity of the translation stage is 6 kg horizontally and 3 kg vertically.
What is the travel range of the translation stage?
The travel range of the translation stage is 10 mm.
