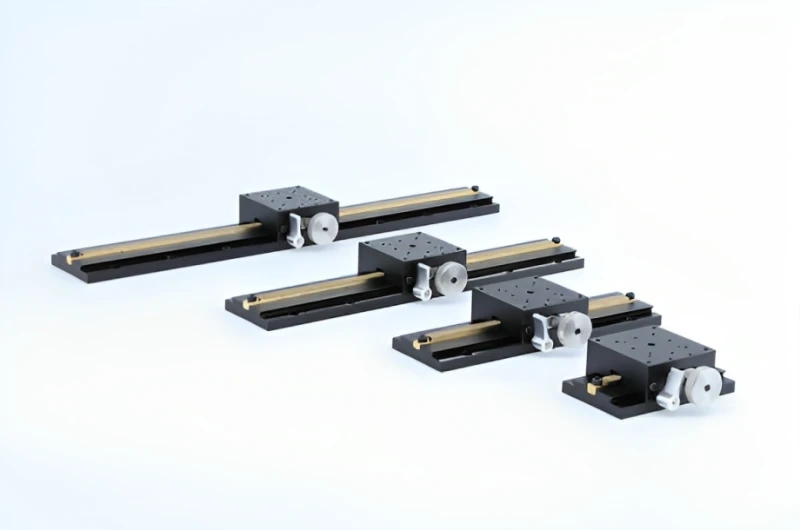

AD series Aluminum alloy Dovetail Bearings Linear Stages

Name: AD series Aluminum alloy Dovetail Bearings Linear Stages
Brand: Zolix Instruments CO.,LTD
Availability: InStock

Description

The AD Series Aluminum Alloy Dovetail Bearings Linear Stages are designed for high-precision positioning applications. Available in two sizes—40×40 mm and 60×60 mm—these stages provide smooth motion and durability, thanks to the use of high-quality aluminum alloy and dovetail bearings. With travel ranges from 40° to 360°, the AD series stages offer flexibility to meet various movement requirements.

The linear stages are engineered to handle loads of up to 6 kg, making them suitable for a wide range of applications in laboratory setups, optical systems, and manufacturing processes.

These stages are available with optional configurations, including single or dual-drive options, to meet specific needs. The dual-slider, single drive (D1) and dual-slider, dual drive (D2) configurations offer enhanced stability and precision. The stages are lightweight, with weights ranging from 0.25 kg to 1.2 kg, allowing for easy integration into systems where space and weight are considerations.

Specifications

Travel Range:	60 mm
Sensitivity:	Not Specified
Load Capacity (Horizontal):	5 kg
Load Capacity (Vertical):	Not Specified
Thickness:	Not Specified
Guiding Mechanism:	High-Precision Profiled Rails
Axes Of Motion:	One Axis
Drive Position:	Center Drive
Weight:	1.2 kg
Table Size:	40×40, 60×60 mm
Thickness:	30 mm
Travel (°):	360
Weight:	1.2 kg
Load Capacity:	5 kg

Download Data Sheet

Features

High Precision: Dovetail bearings ensure smooth, accurate motion

Customizable Travel Range: Offers travel from 40° to 360° for various applications

Lightweight Design: Weighs between 0.25 kg and 1.2 kg, easy to integrate

Heavy Load Capacity: Can handle loads up to 6 kg

Dual Drive Options: Single or dual-slider, single or dual drive configurations available

Durable Construction: Made with high-quality aluminum alloy for longevity

Versatile Sizes: Available in 40×40 mm and 60×60 mm table sizes

Applications

Fiber Alignment: Ideal for precise fiber optic alignment in optical systems

Optical Systems: Used for accurate positioning in optical experiments and manufacturing

Laboratory Use: Suitable for applications in research and development setups

Microscopy: Useful in fine adjustments for microscopy systems

Automation: Integrates well with automated systems requiring stable, precise positioning

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Zolix Instruments CO.,LTD

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the travel range of the AD Series Linear Stages?

The AD Series Linear Stages offer travel ranges from 40° to 360°, depending on the model. The travel range varies between 60° to 360° for the 40×40 mm table size and 40° to 340° for the 60×60 mm table size.

Can I use the AD Series Linear Stages in high-load applications?

Yes, the AD Series stages are designed to handle loads of up to 6 kg, making them suitable for many applications requiring moderate load capacity. The stages are robust and capable of withstanding the specified load limits for stable and precise movement.

What bearing type is used in the AD Series Linear Stages?

The AD Series stages use dovetail bearings, which are known for providing smooth, precise, and reliable motion. These bearings ensure high stability and accurate positioning across the full travel range of the stage.

What is the weight of the AD Series Linear Stages?

The weight of the AD Series stages varies depending on the model. The AD60C-40 weighs 0.25 kg, the AD160C-40 weighs 0.4 kg, the AD260C-40 weighs 0.55 kg, and the AD360C-40 weighs 0.7 kg. The AD40C-60 weighs 0.45 kg, the AD140C-60 weighs 0.7 kg, the AD240C-60 weighs 0.95 kg, and the AD340C-60 weighs 1.2 kg. These lightweight stages are easy to integrate into various systems where space and weight are important considerations.

What are the available configurations for the AD Series Linear Stages?

The AD Series offers several configuration options. The standard configuration (None) uses a single-slider. The D1 configuration is a dual-slider with a single drive for enhanced stability, while the D2 configuration is a dual-slider with dual drives for even higher precision and load handling. These configurations allow you to choose the stage that best fits your application requirements.
