Crossed-Roller Bearing Linear Stage (AK Series by Zolix Instruments)

Name: Crossed-Roller Bearing Linear Stage (AK Series by Zolix Instruments)
Brand: Zolix Instruments CO.,LTD
Availability: InStock

Description

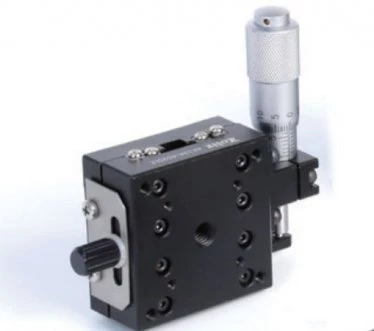

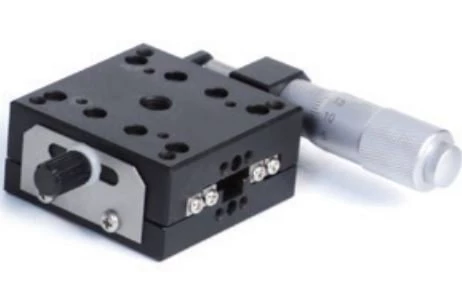

AK series crossed-roller bearing linear stage is made of aluminum alloy and crossed-roller bearings that reduce the light reflectivity and feature high precision.

These linear stages feature 2um sensitivity and generous load capacity in a compact footprint. With built-in high end guiding mechanism they exhibit sub-10um level motion parallelism and sub-3um straightness.

We currently offer 5 different models of AK series Aluminum alloy Crossed-Roller Bearing Linear Stage(s):

Model: AK13(A)-4020(xx) | AK13(A)-6020(xx) | AK25(A)-6520(xx) | AK25(A)-8020(xx) | AK25(A)-10020(xx)
Table Size (mm): 40×40 | 60×60 | 65×65 | 80×80 | 100×100
Weight: 0.12kg | 0.25kg | 0.28kg | 0.5kg | 0.7kg
Horizontal Load: 2kg | 5kg | 6kg | 10kg | 15kg
Vertical Load: 1kg | 2kg | 2.5kg | 5kg | 7kg

Please refer to the Ordering Information on the photo provided or in the downloadable data sheet for the detailed list of specifications

Specifications

Travel Range:	25 mm
Sensitivity:	2 um
Load Capacity (Horizontal):	15 kg
Load Capacity (Vertical):	7 kg
Thickness:	20 mm
Guiding Mechanism:	Crossed Roller Slides
Axes Of Motion:	One Axis
Drive Position:	Center Drive, Right Drive, Left Drive
Weight:	0.7 kg
Actuator:	Screw

Download Data Sheet

Features

This Crossed-Roller Bearing Linear Stage comes with several important features that makes it an ideal choice for numerous applications:

Rigid cross-roller bearing rail guide that ensures, smooth travel across the entire travel range
Six drive positions: center drive, right drive, left drive, center drive in vertical, right drive in vertical, and left drive in vertical. They are very convenient to use.
Side lock screw: All models come with a manual side screw that conveniently locks the position of the stage to protect form accidental knocks.
Black anodized aluminum alloy body: ensures scattered light minimization and lightweight construction

Applications

This AK series Crossed-Roller Bearing Linear Stage is the preferred choice for many scientists and engineers operating in various domains:

Sample positioning in ultrafast and pump-probe spectroscopy
Laser Beam profiling measurements using slit
Laser Crystal Alignment
Optical setup construction
Mechanical alignment in industrial manufacturing
Biophysics experiments

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Zolix Instruments CO.,LTD

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

How much is this Crossed-Roller Bearing Linear Stage and where can I buy?

We have 5 different models and options. For ordering information and specs please refer to the downloadable data sheet. You can buy these stages directly from us (Zolix Instruments). Simply contact us through FindLight and we will respond quickly.

Is there a markup if I buy this linear stage through FindLight?

No, there is no markup when inquiring or buying through FindLight.

What table size options do you have for this linear stage?

We currently offer 5 different models with 40×40mm | 60×60mm | 65×65mm | 80×80mm | 100×100mm table sizes.

Can I chose the drive position on these stages?

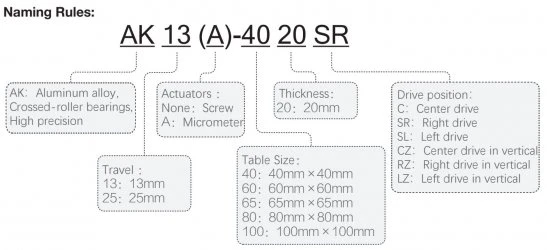

Yes, simply specify the preferred drive position when ordering (C: Center drive; SR: Right drive; SL: Left drive; CZ: Center drive in vertical; RZ: Right drive in vertical; LZ: Left drive in vertical)
