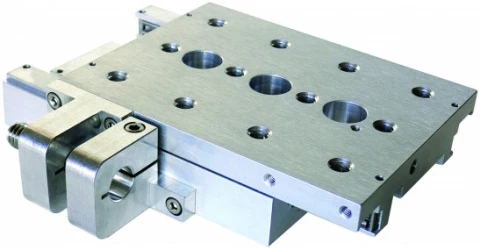

TSB-V Series Low Vacuum Translation Stages 28/60mm Travel
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
The TSB-V Series of low vacuum translation stages by Zaber are meticulously engineered to simplify motion control in demanding environments. These ball bearing linear stages offer precise and reliable movement with travel options of either 28 mm or 60 mm. They are designed to be compatible with Zaber's T-NA-SV1 series miniature linear actuators, enabling seamless integration into your systems. With the ability to function in x-y stage configurations, these stages provide flexible solutions for a variety of motion control needs.
Vacuum Compatibility One of the standout features of the TSB-V Series is its compatibility with low vacuum conditions, capable of operating effectively down to 10^-6 Torr. This is achieved through the use of vacuum-compatible greases, epoxies, and non-anodized components, ensuring reliable performance in specialized environments. These stages are ideal for applications where maintaining a vacuum is crucial, offering dependable operation without compromising on performance.
Robust Design The TSB-V Series is built to handle substantial loads, with a maximum centered load capacity of 100 N and a maximum cantilever load of 125 N-cm. The robust ball bearing guide type ensures smooth and precise motion, while maintaining stage parallelism to less than 100 µm. These features, combined with a wide operating temperature range of 0 to 75 degrees Celsius, make the TSB-V Series a versatile and durable choice for a variety of industrial and research applications. Additionally, the stages comply with RoHS and CE standards, underscoring their quality and safety.

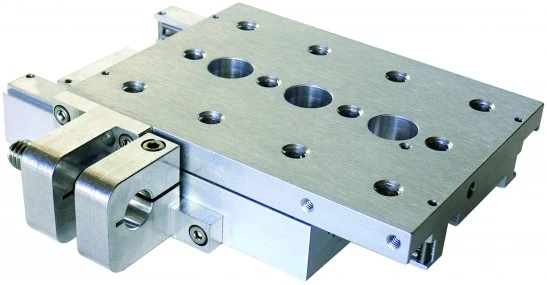

TSB-V Series Low Vacuum Translation Stages 28/60mm Travel
Specifications |
|
|---|---|
| Travel Range: | 60 mm |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 10 kg |
| Guiding Mechanism: | Other |
| Axes Of Motion: | One Axis |
| Drive Position: | Other / Not Specified |
| Vacuum Stage: | Yes |
| Optional Travel Range: | 28 mm |
| Stage Configurations: | XY |
Features
- Low Vacuum Compatibility: Designed for low vacuum environments down to 10-3 Torr.
- Travel Options: Available in 28 mm and 60 mm travel lengths to suit various applications.
- High Load Capacity: Capable of supporting loads up to 10 kg.
- Compatible Actuator: Requires the T-NA-SV1 actuator for operation.
- Vacuum Ready Materials: Uses vacuum-compatible greases and epoxies, with non-anodized components for optimal performance in vacuum conditions.
- Versatile Configuration: Can be configured as an x-y stage for more complex motion control needs.
- Precision Engineering: Features ball bearing linear guides for smooth and precise motion.
- Robust Load Handling: Maximum centered load of 100 N (22.4 lb) and maximum cantilever load of 125 N-cm (177.0 oz-in).
- Operating Temperature Range: Suitable for environments with temperatures from 0 to 75 degrees C.
- Compliance: RoHS and CE compliant for assured quality and safety standards.
- Mounting Options: Available with 1/4-20 or M6 threaded holes for flexible mounting solutions.
- Lightweight Design: Weighs just 0.47 kg for the 28 mm version and 0.56 kg for the 60 mm version, making it easy to integrate into various setups.
Applications
- Vacuum Optical Alignment: Enables precise positioning of optics in low vacuum environments.
- Sample Manipulation: Ideal for accurate linear translation in material analysis and microscopy under vacuum.
- Research Laboratories: Supports experimental setups requiring vacuum compatibility and smooth translation.
- Automation Systems: Facilitates controlled linear motion in automated low vacuum processes.
- Semiconductor and Nanotech: Suitable for positioning in vacuum-based fabrication and inspection systems.
Frequently Asked Questions
The TSB-V Series of translation stages are compatible with Zaber's low vacuum T-NA-SV1 series miniature linear actuators.
The TSB-V Series of translation stages are ball bearing linear stages with 28mm or 60mm of travel.
The operating temperature range of the TSB-V Series of translation stages is 0 to 75 degrees C.
The TSB-V Series of translation stages are low vacuum compatible to 10^-3 torr.
The TSB-V Series of translation stages have a load capacity of 10 kg.
