Description

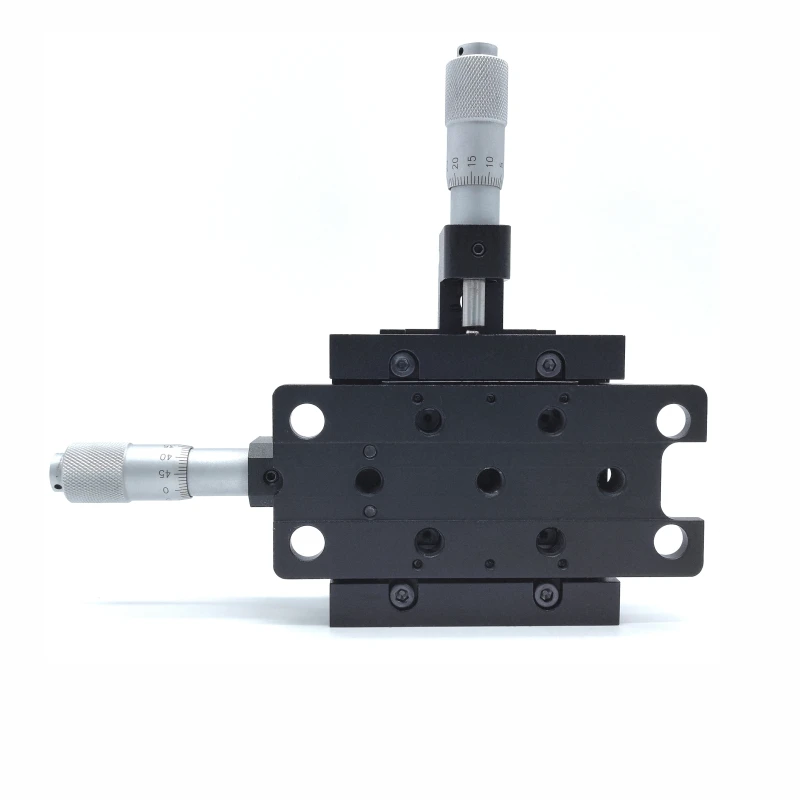

The LDTSP-D2-X-13V is a high-precision integrated XY linear translation stage designed for applications requiring smooth and accurate two-axis positioning. This compact stage features a travel range of 13mm in both the X and Y axes, driven by micrometer screws for exceptional control with an accuracy of 0.005mm and sensitivity of 0.002mm. The robust metal construction ensures durability for various industrial environments, while the 61.5mm x 61.5mm platform size offers ample workspace.
LDTSP-D2-X-13V: High-Precision XY Stage (Micrometer, 13mm Travel)
Specifications
| Travel Range: | 13 mm |
|---|---|
| Sensitivity: | 5 um |
| Load Capacity (Horizontal): | 5 kg |
| Load Capacity (Vertical): | 5 kg |
| Thickness: | 30 mm |
| Guiding Mechanism: | Crossed Roller Slides |
| Axes Of Motion: | Two Axis |
| Drive Position: | Center Drive |
| Weight: | 0.4 kg |
| Model: | LSSP-X-13VZ-01 |
| Platform Size: | 34x34mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
| Load Capacity: | 2kg |
| Driving Position: | Center |
| Net Weight: | 0.07kg |
| Model: | LSSP-X-13VZ-02 |
| Platform Size: | 40x40mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
| Load Capacity: | 3kg |
| Driving Position: | Center |
| Net Weight: | 0.12kg |
| Model: | LSSP-X-13VZ-03 |
| Platform Size: | 60x60mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
| Load Capacity: | 3kg |
| Driving Position: | Center |
| Net Weight: | 0.17kg |
| Model: | LSSP-X-13VC-01 |
| Platform Size: | 34x34mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
| Load Capacity: | 2kg |
| Driving Position: | Side |
| Net Weight: | 0.07kg |
| Model: | LSSP-X-13VC-02 |
| Platform Size: | 40x40mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
Download Data Sheet
Features
- Precise Positioning: Achieve exceptional accuracy of 0.005mm and high sensitivity for delicate operations.
- Smooth and Controlled Motion: Micrometer screw drive ensures smooth and precise movement in both X and Y axes.
- Compact Design: Saves valuable workspace with a small footprint (61.5mm x 61.5mm platform).
- Durable Construction: Metal build guarantees long-lasting performance for industrial applications.
- Easy to Use: Micrometer screw drive offers intuitive control for manual positioning.
- Customizable: OEM customization options available.
Applications
- Optical alignment and positioning
- Microscopy and micromachining
- Assembly and pick-and-place operations
- Sensor and device positioning
- Laser processing and cutting
- Calibration and testing equipment
- Quality control and inspection
- Biomedical and research applications
- Any application requiring precise two-axis XY control with micrometer precision
Frequently Asked Questions
What are the platform sizes available for the Liansheng Optics Series Linear Translation Stages?
The platform sizes available are 34x34mm, 40x40mm, and 60x60mm.
What is the travel range for the Liansheng Optics Series Linear Translation Stages?
The travel range for these stages is 13mm.
What is the accuracy and sensitivity of the Liansheng Optics Series Linear Translation Stages?
The accuracy is 0.005mm and the sensitivity is 0.002mm.
What is the driving mode used in the Liansheng Optics Series Linear Translation Stages?
The driving mode used is a Micrometer Screw.
What are the load capacities for the different models in the Liansheng Optics Series?
The load capacity is 2kg for models with a platform size of 34x34mm and 3kg for models with platform sizes of 40x40mm and 60x60mm.
Where is the driving position located in the Liansheng Optics Series Linear Translation Stages?
The driving position is located at the center for models LSSP-X-13VZ-01, LSSP-X-13VZ-02, and LSSP-X-13VZ-03, and at the side for models LSSP-X-13VC-01, LSSP-X-13VC-02, and LSSP-X-13VC-03.
What is the net weight of the Liansheng Optics Series Linear Translation Stages?
The net weight is 0.07kg for models with a 34x34mm platform, 0.12kg for models with a 40x40mm platform, and 0.17kg for models with a 60x60mm platform.
