Linear Stages

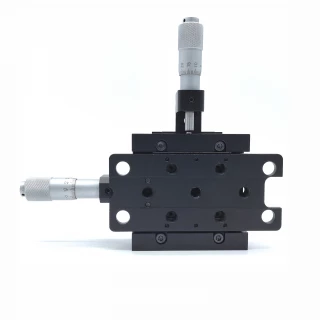

The LDTSP-D2-X-13V is a high-precision integrated XY linear translation stage designed for applications requiring smooth and accurate two-axis positioning. This compact stage features a travel range of 13mm in both the X and Y axes,driven by micrometer screws for exceptional control with an accuracy of 0.005mm and sensitivity of ...

Specifications

Travel Range: 13-25 mm
Sensitivity: 5-30 um
Load Capacity (Horizontal): 5-8 kg
Load Capacity (Vertical): 5-8 kg
Thickness: 30 mm
...
Data Sheet

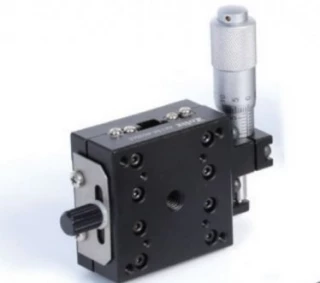

AK series crossed-roller bearing linear stage is made of aluminum alloy and crossed-roller bearings that reduce the light reflectivity and feature high precision.These linear stages feature 2um sensitivity and generous load capacity in a compact footprint. With built-in high end guiding mechanism they exhibit sub-10um level motion ...

Specifications

Travel Range: 25 mm
Sensitivity: 2 um
Load Capacity (Horizontal): 15 kg
Load Capacity (Vertical): 7 kg
Thickness: 20 mm
...
Data Sheet

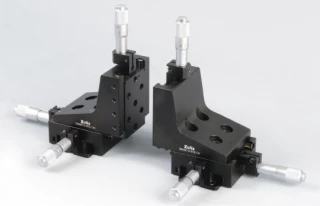

TSMW series bearing linear stages are made of aluminum alloy, which can provide five-axis adjustment. Anodized aluminum makes them suitable for optical experiments.

Specifications

Travel Range: 13 mm
Load Capacity (Horizontal): 2.5 kg
Load Capacity (Vertical): null kg
Data Sheet

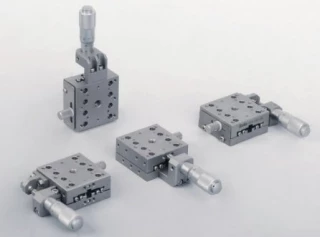

NFP series crossed-roller bearing linear stages are made of stainless steel and crossed-roller bearings that make it ultra-high precision. The table size is available at 40×40 mm and 65×65mm, with four drive positions: center drive, right drive, left drive, and center drive in vertical, providing a high degree of ...

Specifications

Travel Range: 13 - 25 mm
Sensitivity: 1 um
Load Capacity (Horizontal): 5 kg
Load Capacity (Vertical): 1.5 kg
Thickness: 23 mm
...
Data Sheet

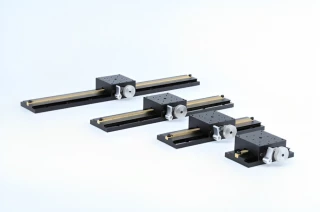

The AD Series Aluminum Alloy Dovetail Bearings Linear Stages are characterized by their expansive travel range, spanning from 60 to 360 mm, designed to accommodate a variety of application needs. Crafted from durable aluminum alloy, these linear stages are engineered with convenience in mind; the dovetail bearings facilitate easy ...

Specifications

Travel Range: 60-360 mm
Sensitivity: -- um
Load Capacity (Horizontal): 5 kg
Load Capacity (Vertical): null kg
Thickness: -- mm
...
Data Sheet

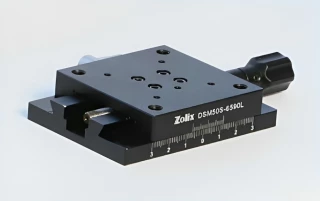

Zolix Instruments presents DSM series dovetail linear stages.  Our DSM series dovetail bearings linear stages are made of aluminum alloy with travel range from 13 mm to 100 mm, depending on the model. The base width is the same as the stage top width, that is more compact than other dovetail stages on the ...

Specifications

Travel Range: 13 - 100 mm
Sensitivity: -- um
Load Capacity (Horizontal): 10 kg
Load Capacity (Vertical): 5 kg
Thickness: 20 mm
...
Data Sheet
Suruga Seiki\'s Cross Roller Guide Series linear manual translation stages are a great fit for applications which require a good accuracy combined with a relatively large travel range. These manual translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are ...

Specifications

Travel Range: 6.4 mm
Load Capacity (Horizontal): 1 kg
Load Capacity (Vertical): 0.3 kg
Table Size: 25mm X 25mm
Data Sheet
Suruga Seiki\'s BSS Series linear XY (dual axes) manual translation stages are a great fit for applications which require a good accuracy combined with a relatively large travel range. These manual translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are ...

Specifications

Travel Range: 13 mm
Load Capacity (Horizontal): 9 kg
Load Capacity (Vertical): 2.7 kg
Table Size: 40mm X 40mm
Data Sheet
Suruga Seiki\'s BSS Series linear manual translation stages are a great fit for applications which require a good accuracy combined with a relatively large travel range. These manual translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are working in an ...

Specifications

Travel Range: 6.4mm mm
Load Capacity (Horizontal): 4 kg
Load Capacity (Vertical): 1.2 kg
Table Size: 25mm X 25mm
Data Sheet
Suruga Seiki\'s BSL Series linear manual translation stages are a great fit for applications which require a good accuracy combined with a relatively large travel range. These manual translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are working in an R&D ...

Specifications

Travel Range: 25 mm
Load Capacity (Horizontal): 15 kg
Load Capacity (Vertical): 4.5 kg
Table Size: 40mm X 80mm
Data Sheet

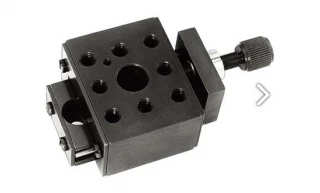

The model 860-0010 compact translation stage is well suited for positioning applications in laboratory experiments requiring linear motion within small space. Ball bearing rolling between opposing of hardened, polished steel rods provide smooth, accu-rate translating platform\'s ride. Model 860-0010 stages are designed to stack for ...

Specifications

Travel Range: 13 mm
Load Capacity (Horizontal): 3 kg
Load Capacity (Vertical): 3 kg
Data Sheet
Suruga Seiki\'s BXT Series linear manual translation stages are a great fit for applications which require a good accuracy combined with a relatively large travel range. These manual translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are working in an R&D ...

Specifications

Travel Range: 13 mm
Load Capacity (Horizontal): 10 kg
Load Capacity (Vertical): 3 kg
Table Size: 40mm X 40mm
Data Sheet
Ultra Low Profile Two Axis 7T264-10 and Single Axis 7T164-10 Translation Stages. The height of single axis translation stage is 10.5 mm and two axis translation stage - 20 mm. To match the low height of the stage Thin Micrometers 9S55M-10 with small knob diameter (13 mm) are used as driving screws. It is possible to easily combine ...

Specifications

Travel Range: 10 mm
Load Capacity (Horizontal): 6 kg
Load Capacity (Vertical): 3 kg
Tracking Accuracy: 2 um
Reading Accuracy: 5 um
...
Data Sheet
MicroMech™ Linear Stages are supplied fitted with either a high resolution thumbscrew or a 6.5 mm travel precision metric micrometer with a calibrated scale. These Stages are light weight, accurate and compact making them ideal for use where space is restricted. Load carrying capacity is excellent for the stage size due to the ...

Specifications

Travel Range: 6.5 mm
Load Capacity (Horizontal): 3 kg
Load Capacity (Vertical): 0.5 kg
Data Sheet
The MiniMech™ Linear Micrometer Stages described on the previous page are also supplied with Top Plates. Four different Top Plate versions are available with standard hole patterns in metric (M4 and M6) and inch (8-32 and 1/4-20) configurations. These Top Plates provide a convenient mounting surface for component mounts and ...

Specifications

Travel Range: 12.7 mm
Load Capacity (Horizontal): 5.5 kg
Load Capacity (Vertical): 0.5 kg
Data Sheet
* Compact design* Precise movement* 13 mm travel range* X-Y direct stacking* Lockable* Stacks directly with stages of 174 and 184 series

Specifications

Travel Range: 13 mm
Load Capacity (Horizontal): 10 kg
Load Capacity (Vertical): 3 kg
Sensitivity: 1 um
Reading Accuracy: 5 um
...
Data Sheet

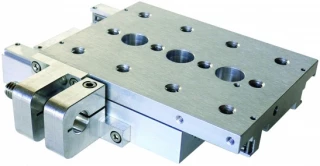

Zaber\'s TSB-V Series of translation stages are ball bearing linear stages with 28mm or 60mm of travel. They are compatible with our low vacuum T-NA-SV1 series miniature linear actuators and can be used in x-y stage configuration. These vacuum compatible translation stages use vacuum compatible greases and epoxies and non-anodized ...

Specifications

Travel Range: 60 mm
Load Capacity (Horizontal): 10 kg
Load Capacity (Vertical): 10 kg
Vacuum Stage: Yes
Optional Travel Range: 28 mm
...
Data Sheet
Ealing’s 25mm stages are designed for positioning medium weight loads with a high degree of accuracy and stability. Two- and three-axis positioning assemblies can be constructed by bolting stages together directly, and using one of the Ealing right angle brackets to support a third stage where necessary.All linear stages ...

Specifications

Travel Range: 25 mm
Load Capacity (Horizontal): 12 kg
Load Capacity (Vertical): 0.5 kg
Minimum Incremental Motion: 1 μm
Tracking Accuracy: 4 μm
...
Data Sheet
Stainless Steel Translation Stages 7T67-6 have low profile and increased stability of precision. Box designed reinforces the stage, reducing flex. Steel, as a material, adds to stability. The platform is preloaded by springs. The stage could be stacked immediately to other units or to their own type (e.g. in X-Y configuration). The ...

Specifications

Travel Range: 6 mm
Load Capacity (Horizontal): 43 kg
Load Capacity (Vertical): 3 kg
Sensitivity: 1 um
Reading Accuracy: 10 um
...
Data Sheet
Stable Steel Translation Stages 7T67-25 have large mounting surface, great travel range for this relatively small size, low profile and increased stability of precision. Box designed reinforces the stage, reducing flex. Steel, as a material, adds to stability. You Can mount a second driving screw on the other end (to lock the ...

Specifications

Travel Range: 25 mm
Load Capacity (Horizontal): 20 kg
Load Capacity (Vertical): 5 kg
Reading Accuracy: 10 um
Sensitivity: 1 um
Data Sheet
Crossed Roller Tables RDA-1
Del-Tron Precision Inc
Del-Tron’s crossed roller tables are known for their high accuracy and exceptional load carrying capabilities. Our linear bearing crossed rollers are available in both aluminum and steel, and the perfect choice for applications where these criteria must be met. Accuracies range from 0.0001” per inch of travel straight line accuracy ...

Specifications

Travel Range: 13 mm
Load Capacity (Horizontal): 14 kg
Load Capacity (Vertical): 14 kg
Data Sheet
Micrometer Positioning Stages R99MM
Del-Tron Precision Inc
Del-Tron offers a wide range of linear positioners. These micrometer positioning stages and crossed roller positioning stages are available with travels ranging from .25” to 2.0”. All of are linear positioners are available in X, XY and XYZ configurations and can carry loads ranging from 4 lbs on our miniature ball slide ...

Specifications

Travel Range: 6 mm
Load Capacity (Horizontal): 73 kg
Load Capacity (Vertical): 73 kg
Data Sheet
Non Magnetic Slides D-1-NMS
Del-Tron Precision Inc
Del-Tron’s new product line of Non-Magnetic ball slides provides the ideal solution for applications where magnetic interference cannot be tolerated. These lightweight Non-Magnetic ball slides are the perfect solution for medical, semiconductor, military and laser applications, just to name a few. Del-Tron’s ...

Specifications

Travel Range: 12.7 mm
Load Capacity (Horizontal): 2.64 kg
Load Capacity (Vertical): 2.64 kg
Data Sheet
Dovetail Slides SO
Föhrenbach GmbH
The Föhrenbach dovetail guides are made of grey cast iron and of aluminium, but makes of other materials are possible, too. The play is adjusted by means of an adjusting bar. All types are equipped with greasing nipples and greasing grooves. All outside surfaces are ground and the guides milled fine.  Also on sale are one ...

Specifications

Travel Range: -- mm
Load Capacity (Horizontal): -- kg
Load Capacity (Vertical): -- kg
Data Sheet
Dovetail Slides SS
Föhrenbach GmbH
The Föhrenbach dovetail guides are made of grey cast iron and of aluminium, but makes of other materials are possible, too. The play is adjusted by means of an adjusting bar. All types are equipped with greasing nipples and greasing grooves. All outside surfaces are ground and the guides milled fine.  Also on sale are one axe or ...

Specifications

Travel Range: 75 mm
Load Capacity (Horizontal): -- kg
Load Capacity (Vertical): -- kg
Data Sheet

Frequently Asked Questions

A linear translation stage (linear stage) is a rail guide mechanism used to precisely control the movement of an object along one or more linear dimensions (axes). They typically include a ball bearing based rail guide that constricts the movement of two metal plates (the base and the platform) relative to each other along a specified axis.

Manual Linear stages typically come installed with a micrometer actuator that pushes the spring loaded platform against the baseplate that moves. This structure provides a micrometer level precision. Some manual linear stages also come with a side lock screw that allows locking the position of the stage once it is adjusted.

Manual linear translation stages are often used in photonics applications including the alignment of optical elements (mirrors, lenses, crystals, etc.) in an optical experiment, spectroscopic measurements, bio medical experiments, laser system prototyping, etc. In general, they are used in any application requiring a precise adjustment and motion control along one or more linear axes.

There are many parameters that define the performance of the translation stage. Depending on your applications you will need to make sure that the stage of your choice matches the parameters of your requirements. The key parameters to look out for are the travel range, positioning sensitivity, load capacity, guide rail mechanism, weight and the number of axes of motion.

In general, yes, but always consult the technical specifications to make sure that the manual stage can handle the vertical load capacity when turned 90 degrees. You will want to position the driving micrometer actuator from the bottom, to make sure that there is no excess load on the retracting spring.

Most linear translation stages come with predrilled mounting holes and you can use these holes to mount the stage on an optical table or a breadboard. However, for stages that have a large baseplate you might want to take the proper precautions to avoid warping due to thermal expansion. For sensitive applications, such as the optical alignment you might want to use clamps instead of relying on predrilled holes to avoid warping due to thermal expansion. Not that sub-mm level lateral expansion would be enough to create warping that would cause misalignment in your optical setup.

All products posted on FindLight are offered directly from the suppliers and manufacturers of those products. At the moment, FindLight does not carry any inventory. You can directly reach out and buy from the suppliers without any markups. Simply contact he respective supplier and they will guide you on how to buy their product.

High-Precision Profiled Rails, Crossed Roller Slides, Air Bearings can all be great choices as a guiding mechanism is linear stages. Always consult the technical specification table to make sure that the stability and sensitivity specifications match your requirements.

There are 29 different Linear Stages from suppliers and manufacturers listed in this category. In just a few clicks you can compare different Linear Stages with each other and get an accurate quote based on your needs and specifications. Please note that the prices of Linear Stages vary significantly for different products based on various factors including technical parameters, features, brand name, etc. Please contact suppliers directly to inquire about the details and accurate pricing information for any product model. Simply navigate to the product page of interest and use the orange button to directly reach out to the respective supplier with one click.

Did You know?

Linear stages are positioning devices used in motion control systems to provide high precision linear motion. Overall, these devices are used to restrict an object to a single axis of motion. This ability is critical to the success of industrial and scientific applications such as semiconductor manufacturing and photonics instrumentation. All linear stages are made up of a platform and base, joined by a guide or linear bearing so that the platform is restricted to a linear motion in relation to the base. Linear stages work by physically restricting 3 axes of rotation and 2 axes of translation thus allowing for motion on only one translational axis.
