Description
Stainless Steel Translation Stages 7T67-6 have low profile and increased stability of precision. Box designed reinforces the stage, reducing flex. Steel, as a material, adds to stability. The platform is preloaded by springs. The stage could be stacked immediately to other units or to their own type (e.g. in X-Y configuration). The stage can be used upside-down. The stages are entirely made of stainless steel.
NOTE: actuator is not included. It can be ordered separately. Suitable micrometers are: 9S35M-5, 9SH137ML, 9SH137MN.

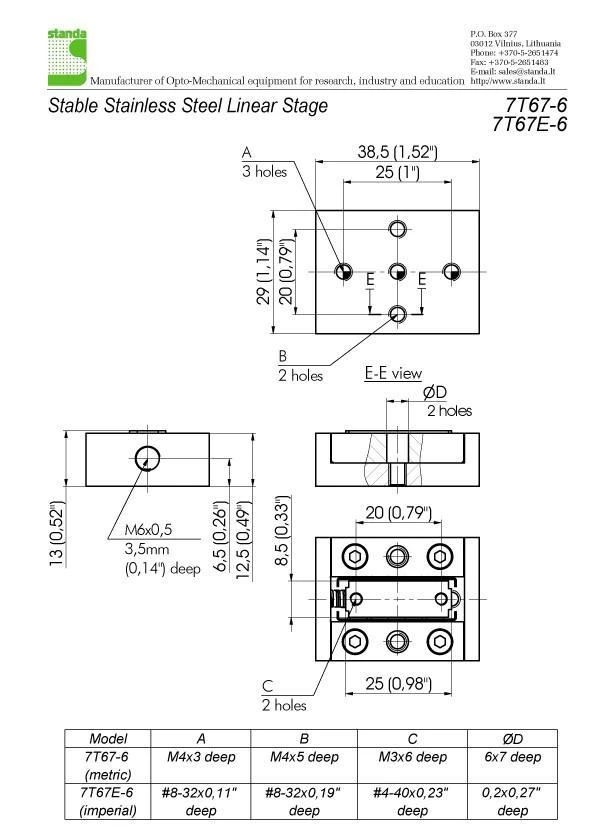

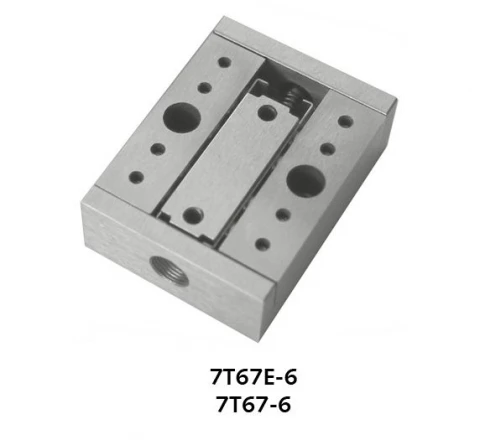

STANDA 7T67-6 - Stainless Steel Translation Stages
Specifications
| Travel Range: | 6 mm |
|---|---|
| Load Capacity (Horizontal): | 43 kg |
| Load Capacity (Vertical): | 3 kg |
| Sensitivity: | 1 um |
| Reading Accuracy: | 10 um |
| Tracking Accuracy: | 2 um |
Download Data Sheet
Frequently Asked Questions
What is the travel range of the STANDA 7T67-6 Stainless Steel Translation Stage?
The travel range of the STANDA 7T67-6 Stainless Steel Translation Stage is 6 mm.
What is the load capacity of the STANDA 7T67-6 Stainless Steel Translation Stage?
The load capacity of the STANDA 7T67-6 Stainless Steel Translation Stage is 45 kg horizontally and 3 kg vertically.
Can the STANDA 7T67-6 Stainless Steel Translation Stage be used upside-down?
Yes, the STANDA 7T67-6 Stainless Steel Translation Stage can be used upside-down.
Is the actuator included with the STANDA 7T67-6 Stainless Steel Translation Stage?
No, the actuator is not included with the STANDA 7T67-6 Stainless Steel Translation Stage. It can be ordered separately.
What are the suitable micrometers for the STANDA 7T67-6 Stainless Steel Translation Stage?
The suitable micrometers for the STANDA 7T67-6 Stainless Steel Translation Stage are 9S35M-5, 9SH137ML, and 9SH137MN.
