Description

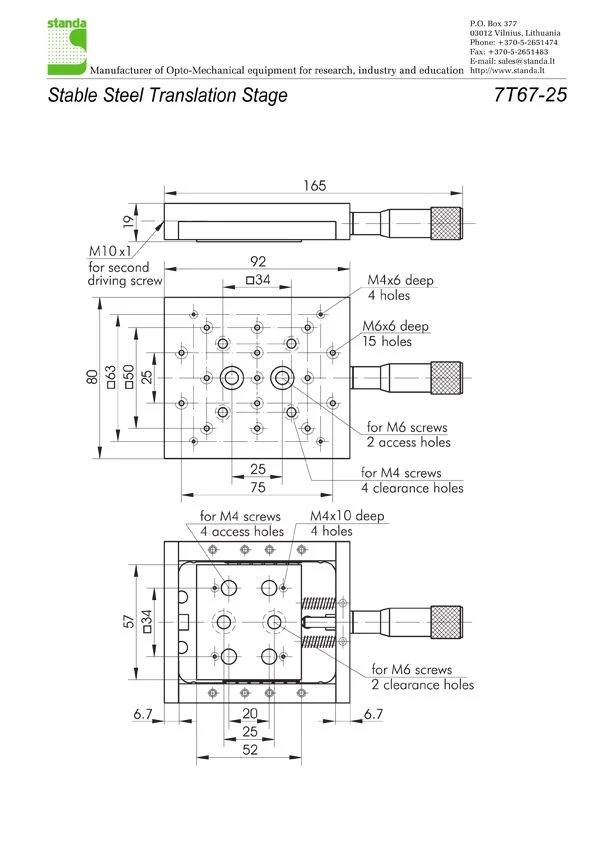

Stable Steel Translation Stages 7T67-25 have large mounting surface, great travel range for this relatively small size, low profile and increased stability of precision. Box designed reinforces the stage, reducing flex. Steel, as a material, adds to stability. You Can mount a second driving screw on the other end (to lock the platform in fixed positioning applications). The platform is preloaded by springs. The stage can be stacked immediately to other units or to their own type (e.g. in X-Y configuration). The stage could be used upside-down. For immediate attachment the base has 2 clearance holes for M6 screws. Similarly, the platform has clearance holes for M4 screws. Slip the screws from top or under through the across holes in a platform/base. Micrometers 9S75M-25 comes as standard. The stage has black anodized finish.

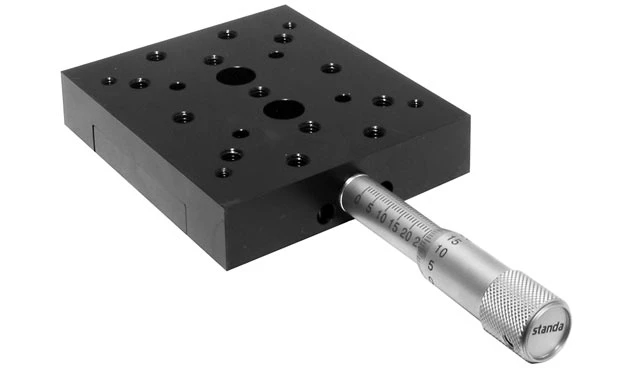

STANDA 7T67-25 - Stable Steel Translation Stage
Specifications
| Travel Range: | 25 mm |
|---|---|
| Load Capacity (Horizontal): | 20 kg |
| Load Capacity (Vertical): | 5 kg |
| Reading Accuracy: | 10 um |
| Sensitivity: | 1 um |
Download Data Sheet
Frequently Asked Questions
What is the travel range of the STANDA 7T67-25 translation stage?
The travel range of the STANDA 7T67-25 translation stage is 25 mm.
What is the load capacity of the STANDA 7T67-25 translation stage?
The load capacity of the STANDA 7T67-25 translation stage is 20 kg horizontally and 5 kg vertically.
What is the material of the STANDA 7T67-25 translation stage?
The STANDA 7T67-25 translation stage is made of steel.
Can the STANDA 7T67-25 translation stage be used in an X-Y configuration?
Yes, the STANDA 7T67-25 translation stage can be stacked immediately to other units or to their own type, such as in an X-Y configuration.
What is the standard micrometer that comes with the STANDA 7T67-25 translation stage?
The standard micrometer that comes with the STANDA 7T67-25 translation stage is the 9S75M-25.
