Description
The PDM03-9107-USB is an advanced plug-and-play photon counting module designed to deliver high sensitivity and low noise performance. It features a 29mm diameter photomultiplier, integrated with fast counting electronics and a low-power high voltage supply. This module is engineered for ease of use, requiring just a PC or laptop with a USB port for operation, making it highly versatile for various applications. The counting electronics include an amplifier/discriminator with an adjustable threshold and a multi-channel scaler/counter timer, enabling precise data recording and storage based on time.
With three software-configurable counting modes, users can choose between pre-set number of channels, pre-set total measurement period, or continuous operation, all managed via dedicated application software. The PDM03-9107-USB boasts a spectral range of 280-630nm, offering flexibility for different detection needs. For those requiring extended UV sensitivity, the PDM03-9107Q-USB variant extends the range down to 160nm. The module's effective photosensitive diameter of 25mm, paired with a typical dark count rate of 100cps at 20°C, provides a unique detection capability, making it ideal for low-light conditions.
Designed with a positive-polarity high-voltage supply, the PDM03-9107-USB ensures maximum count-rate stability even at very low light levels. Its mumetal rectangular housing offers excellent protection against external magnetic fields, enhancing its reliability in various environments. This module is particularly suited for applications requiring photon-counting mode light detection, such as time-resolved fluorescence and luminescence studies. Its robust design and user-friendly interface make it an indispensable tool for scientific investigations that demand precise light detection down to single photons.

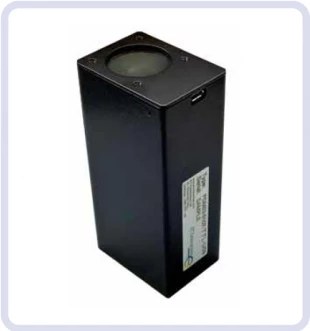

Plug-and-Play Photon Counting Module PDM03-9107-USB
Specifications |
|
|---|---|
| Active Diameter: | 25 mm |
| Peak Quantum Efficiency: | 28 % |
| Spectral Range: | 280 – 630 nm |
| Quantum Efficiency (Peak): | 30 % |
| Pulse-Pair Resolution: | 25 ns |
| Dead Time: | 25 ns |
| Channel Width: | 40 mV |
| Discriminator Level (Adjustable): | 120 mV |
| Supply Voltage (from USB Connection): | 5 V |
| Operating Voltage: | 5.5 V |
| Operating Temperature: | -40 to 55 °C |
| Storage Temperature: | -60 to 60 °C |
| Weight: | 210 g |
Features
- Easy Plug-and-Play Operation: The PDM03-9107-USB module is designed for straightforward integration with minimal setup.
- Wide Dynamic Range: Capable of detecting a broad range of light intensities, making it versatile for various applications.
- No External Power Supply Required: Powered directly through a USB connection, simplifying installation and reducing clutter.
- Magnetic and Electrostatic Shielding: Housed in a mumetal rectangular casing to protect against external magnetic fields, ensuring accurate measurements.
- Spectral Range Options: Standard spectral range of 280-630 nm, with other versions available for extended UV sensitivity down to 160 nm.
- 25 mm Diameter Detection Area: Large effective photosensitive area for enhanced detection capabilities.
- Low Noise: Designed to minimize noise, with a typical dark count rate of 100 cps at 20°C.
- Fibre Coupling Possible: Compatible with fibre optic systems, expanding its applicability in various setups.
Applications
- Time-resolved fluorescence
- Luminescence investigations
- Photon-counting mode light detection
- Single photon detection
- Scientific research involving low light levels
Frequently Asked Questions
The spectral range of the PDM03-9107-USB is 280-630nm.
The three software configurable counting modes available with the PDM03-9107-USB are pre-set number of channels, pre-set total measurement period, or continuous.
The dark count rate of the PDM03-9107-USB at 20°C is typically 100cps.
The typical uses of the PDM03-9107-USB are time-resolved fluorescence, luminescence and similar investigations.
The effective photosensitive diameter of the PDM03-9107-USB is 25mm.
