PDM9107-CP-TTL - Photodetector Module

ADIT Electron Tubes
REQUEST QUOTE

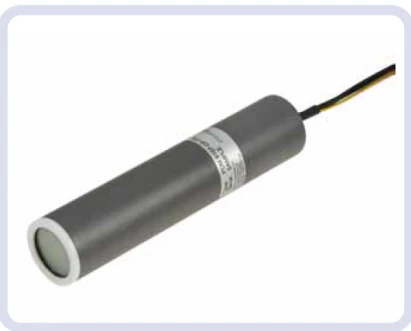

PDM9107-CP-TTL - Photodetector Module

OVERVIEW

The PDM9107-CP-TTL is a photon counting module incorporating a high sensitivity, low noise, 29mm diameter photomultiplier, a fast amplifier-discriminator, and a low power high-voltage supply. The combination of high-speed electronics and fast photomultiplier with low dark counts enables a wide dynamic range to be achieved. A positive polarity high-voltage supply is used for maximum count rate stability at very low light levels and a mumetal* cylindrical housing provides a high level of immunity to external magnetic fields. The spectral range of the PDM9107-CP-TTL is 280-630nm. Other versions are available with a wider range, for example the
PDM9107Q-CP-TTL, which extends the UV sensitivity to 160nm. The effective photosensitive diameter of 25mm makes efficient collection of incident light relatively easy and combining this with a typical dark count of only 100 cps at 20 deg C results in a unique detection capability. The photomultiplier high-voltage and discriminator threshold level are pre-set for optimum performance, enabling photon counting operation simply by connecting to a +5V supply. The fixed pulsewidth TTL output is fully compatible with the ET Enterprises MCS-CT3 multi-channel scaler/counter-timer. When used together, these units can be controlled and powered from a pc USB port, subject to the USB port current limitations.

SPECIFICATION

  • Active Diameter: 25 mm
  • Peak Quantum Efficiency: 28 %
  • Spectral Range: 280 - 630 nm
Download Data Sheet

Applications

fluorescence spectroscopy
luminometry
hygiene monitoring
portable photon counting equipment

KEY FEATURES

pre-configured for optimum performance and ease of use
wide dynamic range (up to 150Mcps)
operation from a single +5V supply
magnetic and electrostatic shielding
only 500mW power dissipation (typical)
spectral range options
25mm diameter photosensitive input area
