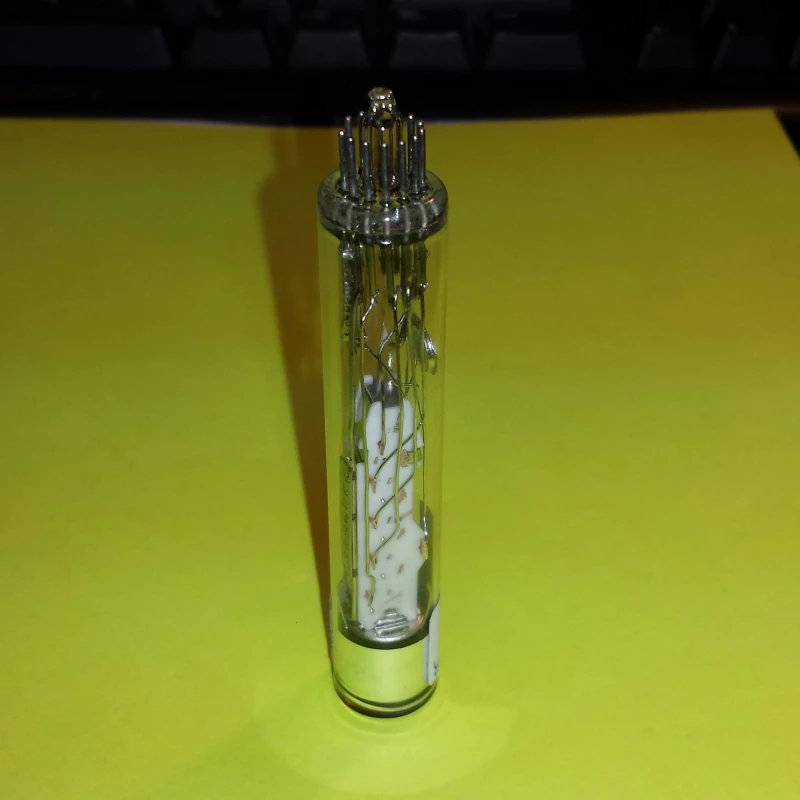

51mm Photomultiplier Tube 9863/350B with S20 Photocathode
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The 9863/350B is a high-performance photomultiplier designed for advanced photon detection applications. With a 51mm (2”) diameter, this device features an infra-red sensitive S20 photocathode, which has been electrostatically reduced to a 9mm diameter. This design, combined with 14 BeCu dynodes of linear focused construction, ensures fast timing and extended linearity, making it an ideal choice for precision-demanding tasks.
This photomultiplier is particularly noted for its high gain and fast time response, attributes that are critical for applications requiring rapid data acquisition and processing. Its low dark count rate and minimal afterpulse rate further enhance its suitability for time-correlated studies, ensuring that measurements are both accurate and reliable. The device operates efficiently across a spectral range of 290 to 850 nm, supported by a borosilicate window with a refractive index of 1.49, ensuring optimal performance in various light conditions.
The 9863/350B's robust construction and advanced features make it a versatile tool for numerous applications, including LIDAR, particle counting, and general photon counting tasks. Its compact size and lightweight design, weighing just 190 grams, facilitate easy integration into existing systems. This photomultiplier is engineered to meet demanding operational requirements while maintaining precision and reliability, making it a valuable asset in scientific and industrial settings.
51mm Photomultiplier Tube 9863/350B with S20 Photocathode
Specifications |
|
|---|---|
| PMT Type: | PMT (photomutiplier tube) |
| Wavelength Of Max Response: | 350 nm |
| Wavelength Range: | 290 – 850 nm |
| Rise Time: | 2 ns |
| Active Diameter: | 9 mm |
| Quantum Efficiency At Peak: | 21 % |
| Weight: | 190 g |
| Max. Temperature: | 80 ºC |
Features
- High Sensitivity: Peak quantum efficiency of 21% with luminous sensitivity up to 180 µA/lm
- Fast Timing: Rise time of 2 ns and jitter of 2.3 ns FWHM
- High Gain: Achieves gain up to 10⁷ with 14-stage BeCu dynodes
- Low Noise: Dark count rates as low as 300 s⁻¹ and afterpulse rate < 1%
- Compact Design: 51 mm diameter with 9 mm active area for precise detection
- Versatile Configuration: Available with electrostatic and electromagnetic shielding options
- Low Afterpulsing: Optimized for time-correlated photon counting
Applications
- LIDAR Systems: Provides accurate photon detection in atmospheric and ranging measurements
- Particle Counting & Sizing: Ideal for high-resolution optical particle detection
- Photon Timing Systems: Excellent for time-correlated single photon counting (TCSPC)
- Scientific Instrumentation: Supports broad research use across physics and life sciences
- Low-Light Detection: Suitable for experiments requiring ultra-sensitive light measurement
Frequently Asked Questions
The 9863/350B is a 51mm (2”) diameter, end window photomultiplier with infra-red sensitive S20 photocathode, electrostatically reduced to 9mm diameter, and 14 BeCu dynodes of linear focused design for fast timing and extended linearity.
The 9863/350B Photomultiplier Tube has a capped base option available, voltage dividers available, and magnetic shields available. In addition, the UK factory supplies housings, power bases, and signal processing electronics together with a new range of integrated detector modules.
The 9863/350B Photomultiplier Tube is used in LIDAR, particle counting, particle sizing, and general photon counting applications.
The spectral range of the 9863/350B Photomultiplier Tube is 290 - 850 nm.
The maximum rated sensitivity of the 9863/350B Photomultiplier Tube is subject to not exceeding max rated V(k-a).
