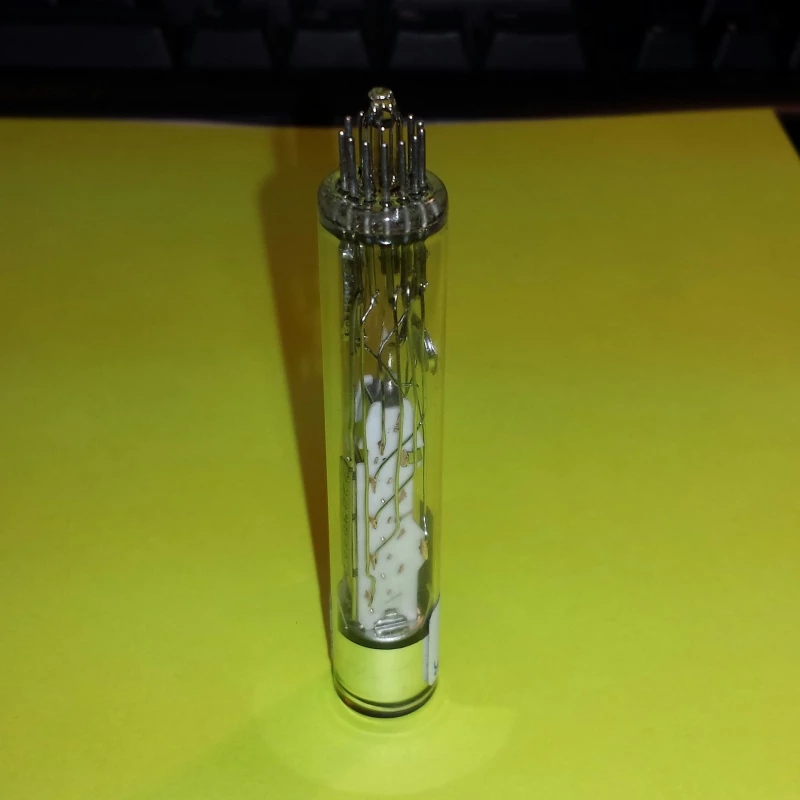

Thumbnail of 9424B - 51mm Photomultiplier Tube photo 1

Description

Photomultiplier Tube (PMT) by ADIT Electron Tubes.

The 9424B is a 51 mm (2”) diameter end window photomultiplier with magnesium fluoride window, potassium bromide photocathode and 14 BeCu dynodes of linear focused design for extended linearity.

It is supplied with spectral response data at specific wavelengths in the vacuum ultra-violet and with photon counting plateau curves showing the recommended voltage for photon counting applications.

9424B - 51mm Photomultiplier Tube

Visit the ADIT Electron Tubes Store

Specifications

PMT Type: PMT (photomutiplier tube)
Wavelength Of Max Response: 125 nm
Wavelength Range: 110 – 160 nm
Rise Time: 2 ns

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Capped base option avialable
  • Voltage dividers available
  • Magnetic Shields available
In addition, our UK factory supplies housings, power bases and signal processing electronics together with a new range of integrated detector modules.

Applications

  • Fluorescence studies down to 110 nm
  • Measurement of synchroton radiation down to 110 nm
  • Measurement of uv light in the presence of visible light

Frequently Asked Questions

What is the 9424B Photomultiplier Tube?
The 9424B is a 51 mm (2”) diameter end window photomultiplier with magnesium fluoride window, potassium bromide photocathode and 14 BeCu dynodes of linear focused design for extended linearity.
What are the applications of the 9424B Photomultiplier Tube?
The 9424B is used for fluorescence studies down to 110 nm, measurement of synchrotron radiation down to 110 nm, and measurement of UV light in the presence of visible light.
What is the voltage divider distribution for the 9424B Photomultiplier Tube?
The voltage divider distribution for the 9424B is 2R R A R Standard R R R R k dd1 2a d11 d12 d13 d14.
What are the maximum ratings for the 9424B Photomultiplier Tube?
The maximum ratings for the 9424B are 0.02 AµA anode current, 0.1 AµA cathode current, 60°C operating temperature, 5.5 kV anode-cathode voltage, 0.07 V anode-dynode voltage, and 0.54 V dynode-dynode voltage.
What accessories can be chosen for the 9424B Photomultiplier Tube?
Accessories for the 9424B can be chosen on the manufacturer's website.

Got more questions? Use the inquiry form to ask the supplier directly.
