Description

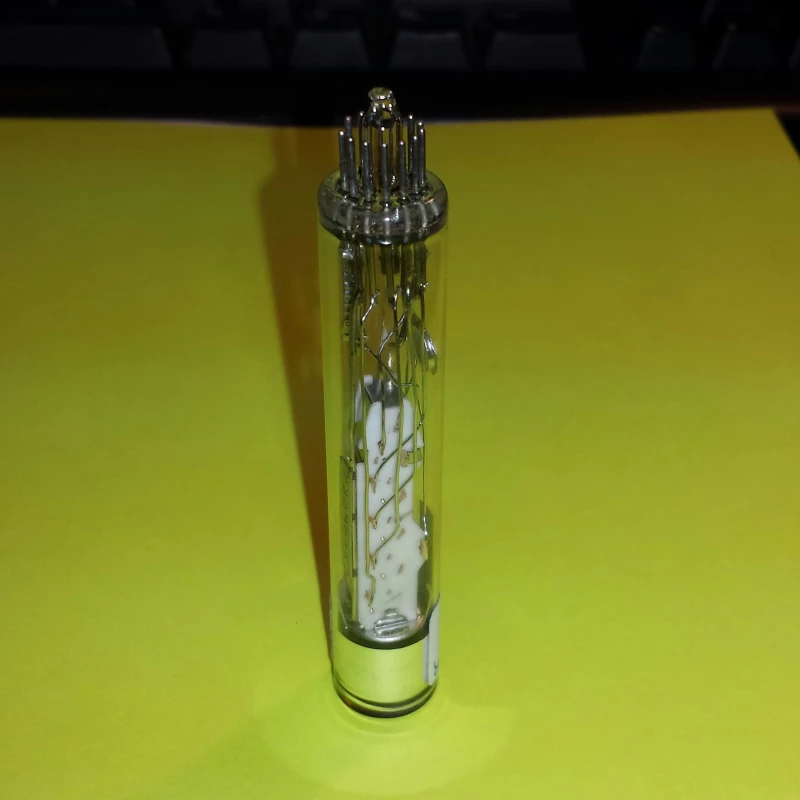

Photomultiplier Tube (PMT) by ADIT Electron Tubes.
13mm photomultiplier tubes
Specifications
| PMT Type: | PMT (photomutiplier tube) |
|---|---|
| Wavelength Of Max Response: | 380 nm |
| Wavelength Range: | 290 – 630 nm |
| Rise Time: | 2 ns |
Download Data Sheet
Frequently Asked Questions
What is the L13D21H Photomultiplier Tube?
The L13D21H is a 13mm (0.5”) diameter, end window photomultiplier with a blue-green sensitive bialkali photocathode and 10 high gain, high stability, SbCs dynodes of linear focused design.
What are the applications of the L13D21H Photomultiplier Tube?
The L13D21H is suitable for scintillation counting, general purpose low light level detection, low dark current, and good energy resolution.
What is the spectral range of the L13D21H Photomultiplier Tube?
The spectral range of the L13D21H Photomultiplier Tube is 290-630 nm.
What is the dark current at 20°C for the L13D21H Photomultiplier Tube?
The dark current at 20°C for the L13D21H Photomultiplier Tube is 0.5 nA at nominal A/lm and 50 nA at max. Rated A/lm.
Can the L13D21H be supplied with a custom designed voltage divider installed?
Yes, the L13D21H can be supplied with a custom designed voltage divider installed.
