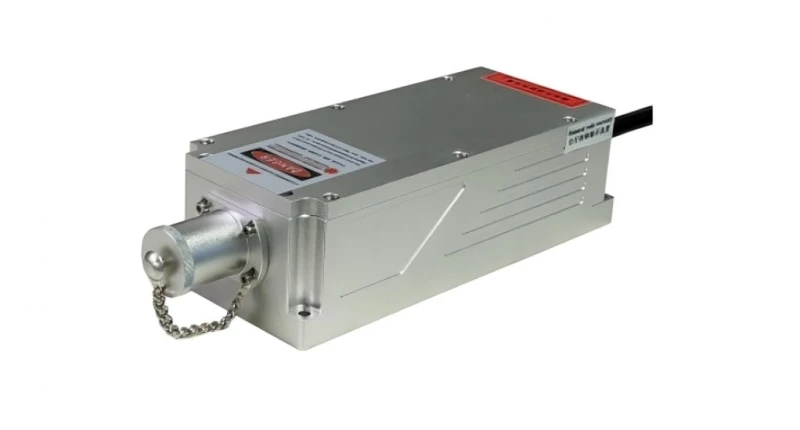

MPL-F-355 355nm DPSS Ultraviolet Laser
Description
The MPL-F Series features all-solid-state UV and infrared lasers known for their ultra-compact design, cost-effectiveness, and ease of operation. These lasers find extensive applications in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiments, and laser fluorescence.
MPL-F-355 355nm DPSS Ultraviolet Laser
Specifications |
|
|---|---|
| Avg. Power: | 0.1 W |
| Wavelength: | 355 nm |
| Repetition Rate: | 1-4kHz |
| Spatial Mode (M^2): | <2.0 |
| Pulse Duration: | 5 ns |
| Pulse-to-Pulse Stability (RMS): | 10 % |
| Cooling: | Conductive |
| Operating Mode: | Frequency conversion of Q-switched pulsed laser |
| Single Pulse Energy: | 0.1~15 mJ |
| Transverse Mode: | Near TEM00 |
| Beam Diameter At The Aperture: | 1.2 mm |
| Beam Divergence, Full Angle: | <1.5 mrad |
| Polarization Ratio: | >100:1, Horizontal (Vertical Optional) |
| Warm-up Time (minutes): | <5 min |
| Operating Temperature: | 10-35 °C |
| Power Supply (90-264VA): | PSU-H-LED/PSU-H-FDA/PSU-H-OEM |
| Expected Lifetime: | 10000 hours |
| Warranty: | 1 year |
Features
- Ultra-compact design
- Cost-effectiveness
- Easy to operate
- Long lifetime
Applications
- UV curing
- Micro-electronics
- CD carving
- Laser medical treatment
- Scientific experiments
- Laser fluorescence
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
External Vendor
Claim PhotonTech Berlin Page to edit and add data
Frequently Asked Questions
The MPL-W-355 355nm DPSS Ultraviolet Laser is used for spectroscopy, industrial and OEM laser optics applications.
The maximum power of the Standard UV-F-355 CW model is 10mW.
The power stability of the MPL-N-355 Q-Switching model is 5% or 10%.
The M2 factor of the Standard UV-F-355 CW model is less than 2.0.
The repetition rate of the MPL-N-266 Q-Switching model is fixed, but it can be extended to 3k-5kHz with external triggering.
