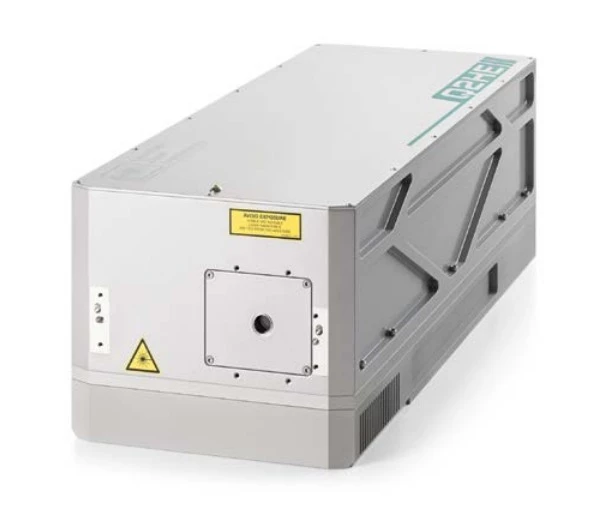

Quantas-Q2HE-532: High Energy Compact Nanosecond DPSS Laser

Name: Quantas-Q2HE-532: High Energy Compact Nanosecond DPSS Laser
Brand: RPMC Lasers, Inc.
Availability: InStock

Description

The Quantas-Q2HE-532 is a high-energy, q-switched DPSS laser available in 1053nm or 1064nm fundamental wavelengths, with optional harmonic generation. This air-cooled DPSS laser offers high peak power pulses up to 120mJ and average output power up to 4W, with up to 100Hz repetition rate.

With excellent thermal properties and water-free crystal cooling technology, this high-energy q-switched laser provides a compact, user-friendly turnkey system requiring minimal maintenance.

Specifications

Avg. Power:	4 W
Wavelength:	532 nm
Repetition Rate:	0.01 – 0.1 kHz
Pulse Duration:	7 ns
Pulse-to-Pulse Stability (RMS):	0.5 %
Cooling:	Air
Pulse Energy:	20-50 mJ
Beam Divergence:	<1 mrad
Polarization:	Linear, horizontal
Jitter (RMS):	<0.5 ns
Transmission Range:	1-95 %
Laser Head (W×L×H):	190 × 408 × 155 mm³
Controller Unit (W×L×H):	108 × 191 × 59 mm³
AC/DC Power Adapter, Typical (W×L×H):	89 × 422 × 330 mm³
Ambient Temperature:	15-30 ℃
Relative Humidity (non-condensing):	10-80 %
Mains Voltage:	90 – 230 VAC, single phase, 47 – 63 Hz
Pump Diode Lifetime:	> 2 G shots

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Fundamental Wavelength Options: 1053nm & 1064nm
Harmonic Generation: Optional 2nd/3rd/4th/5th
Peak Power: Up to 120mJ
Average Power: Up to 4W
Repetition Rate: Up to 100Hz
High-speed Triggering
Jitter: 0.5ns RMS
Remote Monitoring & Diagnostics
User-friendly GUI

Applications

Laser microprocessing
Semiconductor inspection
Micromachining
UV-induced fluorescence
Spectroscopy
Photochemistry
Nanotechnology
UV lithography

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Ships from:

United States

Sold by:

RPMC Lasers, Inc. ✓ Verified Supplier

On FindLight:

since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the wavelength output of the Quantas-Q2HE-532 high-energy DPSS laser?

The Quantas-Q2HE-532 emits light at a wavelength of 532 nm, which is in the visible green part of the spectrum.

Can you specify the pulse energy range for the Quantas-Q2HE-532 q-switched DPSS laser?

The laser is designed to provide pulse energies between 20 mJ and 60 mJ depending on the specific model. Please consult the specification data sheet for details.

What pulse widths does the Quantas-Q2HE-532 high-energy DPSS deliver?

The Quantas-Q2HE-532 achieves pulse widths of less than 7 nanoseconds.

What repetition rate can I expect from this DPSS laser?

These lasers operate at a repetition rate of up to 100 Hz.

Is the Quantas-Q2HE-532 DPSS laser air-cooled?

Yes, it features an air-cooled design, negating the need for external water cooling systems.

What kind of triggering options does the Quantas-Q2HE-532 high-energy q-switched DPSS laser offer?

It provides high-speed triggering capabilities, ensuring synchronization with user equipment.

How stable is the output of the Quantas-Q2HE-532?

The laser offers excellent pulse-to-pulse stability, although the specific RMS jitter value would depend on detailed specifications of a specific model.

Are there any additional harmonic generation options with the Quantas-Q2HE-532 DPSS laser?

Details on harmonic generation capabilities can be found on the included specifications data sheet.
