Description

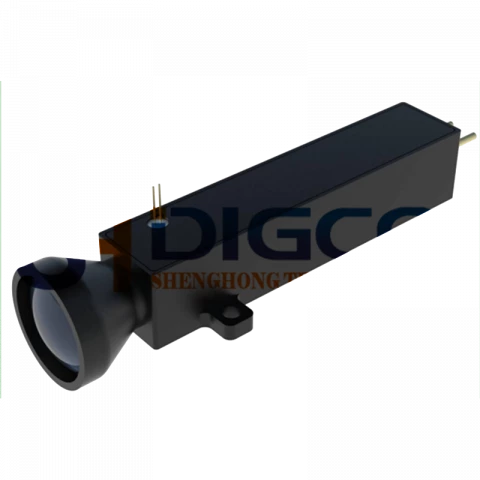

Microchip nanosecond laser transmitters based on Er3+,Yb3+:phosphate glass slab laser gain for 1535nm eye safe applications for high repetition frequency demands, eg. Lidar, transmitters integrated with PIN and beam expander can be supplied as required as optional.
Other modules: 1-10Hz adjustable repetition rated transmitter with pulse energy of 100uJ, 200uJ, 300uJ, 400uJ, 500uJ, 700uJ, 1000uJ, 2000uJ, 3000uJ are availlable as requested.
Eye safe Er:glass DPSS laser transmitters with high repetition rates for Lidar source
Specifications
Avg. Power: | 4000 W |
---|---|
Wavelength: | 1535 nm |
Repetition Rate: | 1 – 5 kHz |
Spatial Mode (M^2): | 0 |
Pulse Duration: | 5 ns |
Pulse-to-Pulse Stability (RMS): | 1 % |
Cooling: | Conductive |
Pulse Energy (μJ): | 10, 20, 40 |
Wavelength (nm): | 1535 |
Beam Directivity: | <0.2° |
Storing Temperature (℃): | -55 ~+80 |
Operating Voltage (V): | 2 |
Repetition Frequency (kHz): | 1, 2.5, 5 |
Pulse Width (ns): | ≤5 |
Operating Currency (A): | 5 |
Beam Diameter (mm): | 0.3 |
Beam Divergence Typ (mrad≤): | 16, 17, 18 |
Beam Directivity: | <0.2° |
Beam Mode: | TEM00 |
Weight (g): | ≤10 |
Dimensions: L×W×H, (mm): | 21×8×7 |
Operating Temperature (℃): | -40 ~ +65 |
Features
- Eye safe 1535nm QSW DPSS laser
- Low energy consumption
- Compact designs
- Long lifetime
- Easy to fix and operate
- In-depth customization
Applications
Eye-safe long distance rangefinder/designator/LiDAR
Frequently Asked Questions
What is the wavelength of the laser transmitter?
The laser transmitter operates at a wavelength of 1535nm, which is eye-safe.
What is the repetition rate range of the transmitter?
The transmitter offers a high repetition rate range of 1-10Hz, which is adjustable as per your requirements.
What is the pulse energy range of the transmitter?
The transmitter provides pulse energy options ranging from 100uJ to 3000uJ, depending on your specific needs.
Can the transmitter be customized?
Yes, the transmitter can be customized to meet your specific requirements, including the integration of PIN and beam expander modules.
What are the key features of the laser transmitter?
The laser transmitter features a compact design, low energy consumption, long lifetime, and easy operation and maintenance.
