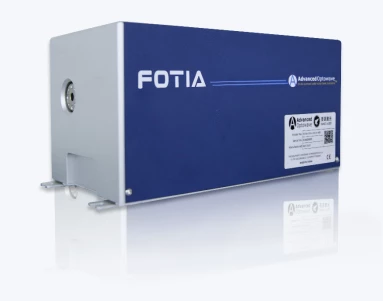

Thumbnail of AONANO COMPACT - 532-5W-50K Laser photo 1

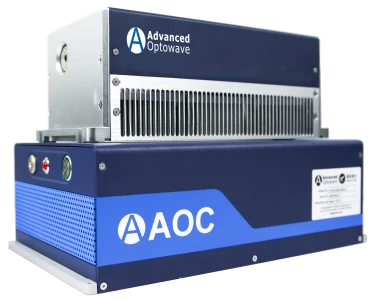

Thumbnail of AONANO COMPACT - 532-5W-50K Laser photo 2

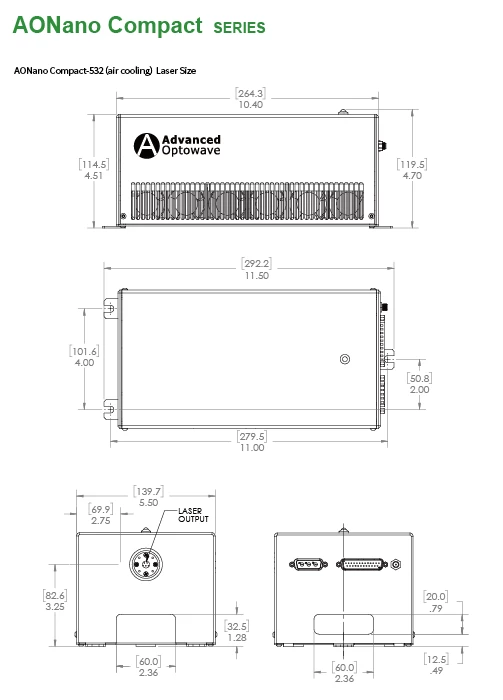

Thumbnail of AONANO COMPACT - 532-5W-50K Laser photo 3

Description

AONANO COMPACT - 532 laser, including 5 W and 10 W models, has pulse energy up to 100 μJ and repetition rate from 30 kHz to 150 kHz. The low frequency operation can be customized according to customer’s demand.

AONANO COMPACT-532 laser can be operated through TTL level signals and external control PWM pulse width modulation signals. The PWF function allows customers to adjust the power output of the laser under internal control mode through software.

Both air-cooled and water-cooled versions are available for the AONANO COMPACT-532 laser, which makes it adaptable to various environments. The connection cable between the laser head and the controller can be customized according to customer's demand.

The versatility of the AONANO COMPACT-532 laser can meet the requirement of various optical paths and mechanical designs. The short pulse width (< 15 ns @ 50 k), excellent beam quality (M2 < 1.2) and beam roundness (> 90%) make it a perfect choice for PCB marking, glass marking, glass engraving, and so on.

AONANO COMPACT - 532-5W-50K Laser

Visit the Advanced Optowave Corporation Store

Specifications

Avg. Power: 5 W
Wavelength: 532 nm
Repetition Rate: 30 – 150 kHz
Spatial Mode (M^2): 1.2
Pulse Duration: 15 ns
Pulse-to-Pulse Stability (RMS): 3 %
Cooling: N/A
Cold Start Warm-Up: <40 min
Avg. Power Stability (over 12 Hours): <3 %
Polarization Ratio: 100:1 Linear, Horizontal
Pointing Stability: <20 uRad/deg.C
Beam Divergence: <1.5 mRad
Beam Diameter: ~0.5 mm
Average Power Stability: <3 %
Beam Roundness: >90 %
Energy: >100 mJ
Specified Repetition Rate: 50 kHz

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Both air-cooling and water-cooling available
  • Compact size for ease of integration
  • Short pulse width and excellent beam quality
  • First pulse suppression

Applications

Microtechnologies and nanotechnology; semiconductor inspection; microlithography; measurement, test and repair of electronic circuits; medical and biotechnology; consumer electronics; industrial processes and quality control; materials processing; imaging and printing; graphic arts display; and research and development.

Frequently Asked Questions

What is the maximum pulse energy of the AONANO COMPACT-532 laser?
The AONANO COMPACT-532 laser has a maximum pulse energy of up to 100 μJ.
What is the repetition rate range of the AONANO COMPACT-532 laser?
The repetition rate range of the AONANO COMPACT-532 laser is from 30 kHz to 150 kHz.
Can the low frequency operation of the AONANO COMPACT-532 laser be customized?
Yes, the low frequency operation of the AONANO COMPACT-532 laser can be customized according to customer's demand.
What are the available cooling options for the AONANO COMPACT-532 laser?
Both air-cooled and water-cooled versions are available for the AONANO COMPACT-532 laser.
What are some applications of the AONANO COMPACT-532 laser?
The AONANO COMPACT-532 laser can be used in microtechnologies and nanotechnology, semiconductor inspection, medical and biotechnology, materials processing, imaging and printing, and research and development, among others.
