Description

The SDL-375-LM-XXXT is a multi-mode diode laser that emits ultraviolet light at a wavelength of 375±3nm. It has a compact laser head (100x60x40mm) and power supply (200x225x82mm), making it easy to integrate into a variety of applications. This laser operates in continuous wave (CW) mode and has a warm-up time of less than 10 minutes. It has excellent power stability over a 2-hour period and a low pointing stability of <0.05 mrad.

SDL-375-LM-XXXT 375nm UV Diode Laser

Visit the Shanghai Dream Lasers Technology Co., Ltd. Store

Specifications

Wavelength: 375 nm
Max Output Power: 1 mW
Warranty Time: 1 year
Expect Life Time: 10,000 hours
Modulation: TTL Modulation >5KHz
Input Voltage: 90-265VAC 50/60Hz

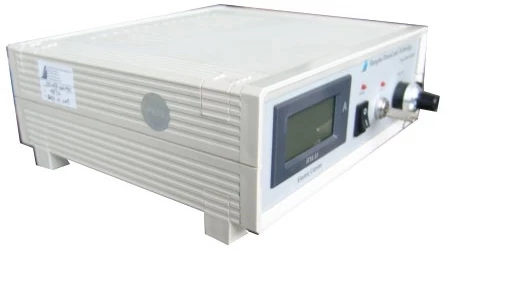

Power Supply: SDL-PS-400: 200x225x82 mm

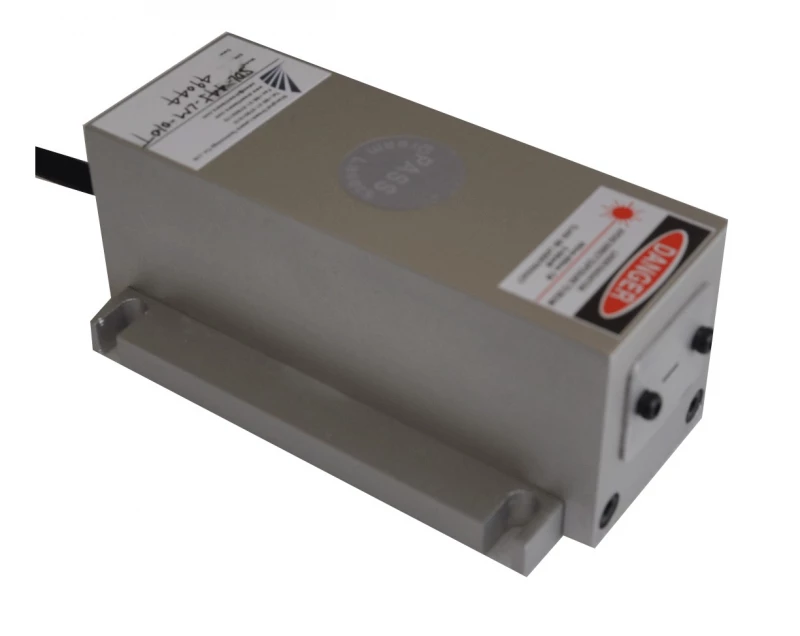

Laser Head: SDL-LH-500: 100x60x40 mm
Operating Temperature: 10℃～35℃
Polarization Ratio: > 100:1
Pointing Stability After Warm-up: < 0.05 mrad
Warm-up Time: < 10 minutes
Beam Spot Outline: Ellipse
Beam Diameter At The Aperture: ~ 4.0 mm
Beam Divergence (1/e2, Full Angle): ~ 1.5 mrad
Power Stability Over 2 Hours After Warm-up: < 5 %
LD Mode: Multi Mode

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 4 or 8 hours Longer operation period output power stability are available on request.
  • Better (<3%,<1%) power stability are available on request.
  • Round beam spot outline is available on request.
  • Other version power supply are available on request: OEM AC or DC input version: SDL-PS-900: 146x76x50mm
  • Analog Modulation >2KHz or higher as option.
  • Up to 30Khz TTL modulation on request.
  • Line output version are available on request.
  • Fiber coupled version are available on request.
  • Longer warranty on request.
  • Other custom-made design is available, please contact us for details.

Applications

  • Fluorescence spectroscopy
  • Confocal microscopy
  • Flow cytometry
  • DNA sequencing
  • Forensic analysis
  • Semiconductor inspection
  • Biomedical imaging

Frequently Asked Questions

What is the wavelength of the SDL-375-LM-XXXT laser?
The SDL-375-LM-XXXT laser emits ultraviolet light at a wavelength of 375±3nm.
What is the size of the laser head and power supply?
The laser head has dimensions of 100x60x40mm and the power supply has dimensions of 200x225x82mm.
How long does it take for the laser to warm up?
The laser has a warm-up time of less than 10 minutes.
What is the power stability of the laser over a 2-hour period?
The laser has excellent power stability of less than 5% over a 2-hour period.
Is there an option for different power stability or beam spot outline?
Yes, better power stability (<3%,<1%) and a round beam spot outline are available on request.
