Description
The FPYL-946-XXXT is an infrared DPSS (Diode-Pumped Solid-State) laser designed for various applications that require a reliable and precise laser source. With a wavelength of 946nm and an output power ranging from 1mW to 800mW (to be specified), this laser provides a stable and high-quality beam with a TEM00 transverse mode.
It operates in continuous wave (CW) mode, ensuring consistent performance over extended periods. With fast warm-up time, low beam divergence, and excellent pointing stability, it is an ideal choice for applications demanding reliability and accuracy.

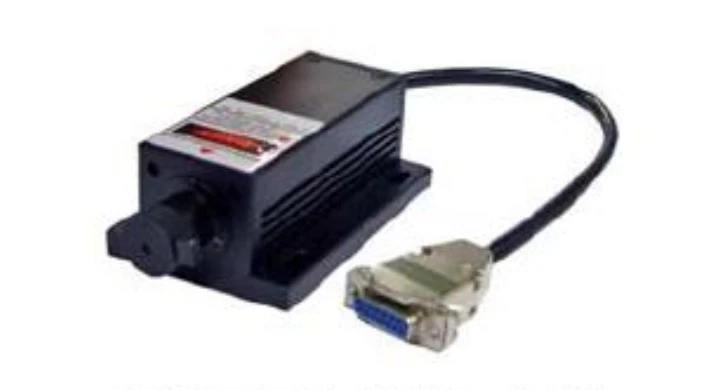

Infrared DPSS Laser FPYL-946-XXXT
Specifications
Wavelength: | 946 nm |
---|---|
Max Output Power: | 800 mW |
Cooling Method: | Active cooling |
Tunability: | Fixed Wavelength |
Control Interface: | Other (not specified) |
Transverse Mode: | TEM00 |
Power Stability (RMS, Over 4 Hours): | 3 % |
Warm-up Time: | <5 minutes |
M² Factor: | <2 |
Beam Divergence (full Angle): | <2 mrad |
Beam Diameter At The Aperture (1/e²): | ~1.2 mm |
Beam Height From Base Plate: | 29 mm |
Pointing Stability After Warm-up: | <0.05 mrad |
Operating Temperature: | 10-35 ℃ |
Expected Lifetime: | 10000 hours |
Features
- Wavelength of 946nm with ±1nm accuracy
- Output power ranging from 1mW to 800mW (to be specified)
- TEM00 transverse mode
- CW (Continuous Wave) operating mode
- Power stability of less than 3% (RMS, over 4 hours)
- Fast warm-up time of less than 5 minutes
- M² factor of less than 2
- Beam divergence (full angle) of less than 2mrad
- Beam diameter at the aperture (1/e²) of approximately 1.5mm
- Beam height from the base plate of 29mm
- Pointing stability of less than 0.05mrad after warm-up
- Operating temperature range of 10°C to 35°C
- Expected lifetime of 10,000 hours
Applications
- Laser spectroscopy
- Scientific research
- Optogenetics
- Laser-induced fluorescence
- Biomedical imaging
- Confocal microscopy
- DNA sequencing
- Flow cytometry
- Laser marking
- Laser engraving
Frequently Asked Questions
What types of laser products does FLC offer?
FLC offers a wide range of diode-pumped solid state laser products, including the smallest DPSS laser heads, low cost modules, low power and high power laser systems, and high quality single longitudinal mode laser systems with different power output and wavelengths.
What are some applications for the FPYL-946-XXXT DPSS Laser?
The FPYL-946-XXXT DPSS Laser is used in fluorescence and biomedical imaging, Raman spectroscopy and microscopy, lithography, and other applications.
What wavelengths are available for the FPYL-946-XXXT DPSS Laser?
The wavelengths available for the FPYL-946-XXXT DPSS Laser vary depending on the specific product chosen.
What is the power output of the FPYL-946-XXXT DPSS Laser?
The power output of the FPYL-946-XXXT DPSS Laser varies depending on the specific product chosen.
What is the FPYL-946-XXXT DPSS Laser?
The FPYL-946-XXXT DPSS Laser is a diode-pumped solid state laser product offered by FLC.
