Description
The FPYL-543-XXXT-U is a green DPSS (Diode-Pumped Solid-State) laser designed for various applications that require a reliable and efficient green laser source. With a wavelength of 543nm and an output power ranging from 1mW to 200mW (to be specified), this laser delivers a high-quality, TEM00 transverse mode beam in continuous wave (CW) mode.
It provides excellent power stability, low beam divergence, and precise pointing stability, making it an ideal choice for applications that demand precision and reliability.

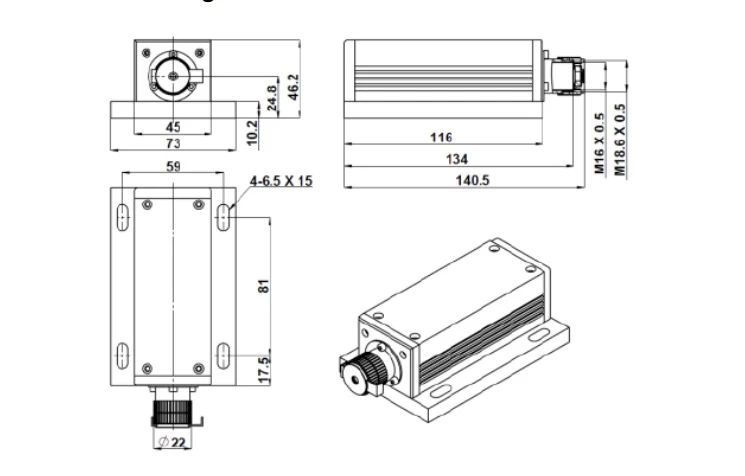

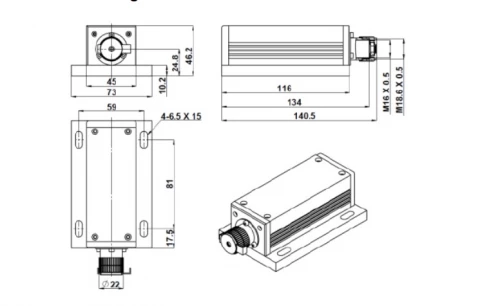

Green DPSS Laser FPYL-543-XXXT-U
Specifications
Wavelength: | 543 nm |
---|---|
Max Output Power: | 100 mW |
Cooling Method: | Other (not specified) |
Tunability: | Fixed Wavelength |
Control Interface: | Other (not specified) |
Transverse Mode: | TEM00 |
Power Stability (RMS, Over 4 Hours): | <3 % |
M² Factor: | <1.2 |
Beam Diameter At The Aperture (1/e²): | <1 mm |
Beam Divergence (full Angle): | <1.5 mrad |
Polarization Ratio: | >100:1 |
Warm-up Time: | <5 minutes |
Pointing Stability After Warm-up: | <0.05 |
Beam Height From Base Plate: | 27.4 mm |
Expected Lifetime: | 10000 hours |
Operating Temperature: | 10-35 °C |
Features
- Wavelength of 543nm with ±1nm accuracy
- Output power ranging from 1mW to 200mW (to be specified)
- TEM00 transverse mode
- CW (Continuous Wave) operating mode
- Power stability of less than 2% (RMS, over 4 hours)
- M² factor of less than 1.2
- Beam diameter at the aperture (1/e²) of <1mm
- Beam divergence (full angle) of less than 1.5mrad
- Polarization ratio greater than 100:1
- Fast warm-up time of less than 5 minutes
- Pointing stability of less than 0.05mrad after warm-up
- Beam height from the base plate of 27.4mm
- Expected lifetime of 10,000 hours
- Operating temperature range of 10°C to 35°C
Applications
- Laser display systems
- Laser projection
- Laser light shows
- Holography
- Biomedical imaging
- Fluorescence microscopy
- Flow cytometry
- Laser-induced fluorescence
- Laser marking and engraving
- Scientific research
Frequently Asked Questions
What are the different types of DPSS laser products offered by FLC?
FLC offers a wide range of diode-pumped solid state laser products, including the smallest DPSS laser heads, low cost modules, low power and high power laser systems, and high quality single longitudinal mode laser systems with different power output and wavelengths.
What are some applications of the FPYL-543-XXXT-U DPSS Laser?
The FPYL-543-XXXT-U DPSS Laser is used in fluorescence and biomedical imaging, Raman spectroscopy and microscopy, lithography, and other applications.
What is the power output and wavelength of the FPYL-543-XXXT-U DPSS Laser?
The power output and wavelength of the FPYL-543-XXXT-U DPSS Laser can vary depending on the specific product chosen.
Is the FPYL-543-XXXT-U DPSS Laser a continuous wave laser?
Yes, the FPYL-543-XXXT-U DPSS Laser is a continuous wave diode-pumped solid state (DPSS) laser.
What is the FPYL-543-XXXT-U DPSS Laser?
The FPYL-543-XXXT-U DPSS Laser is a diode-pumped solid state laser product offered by FLC.
