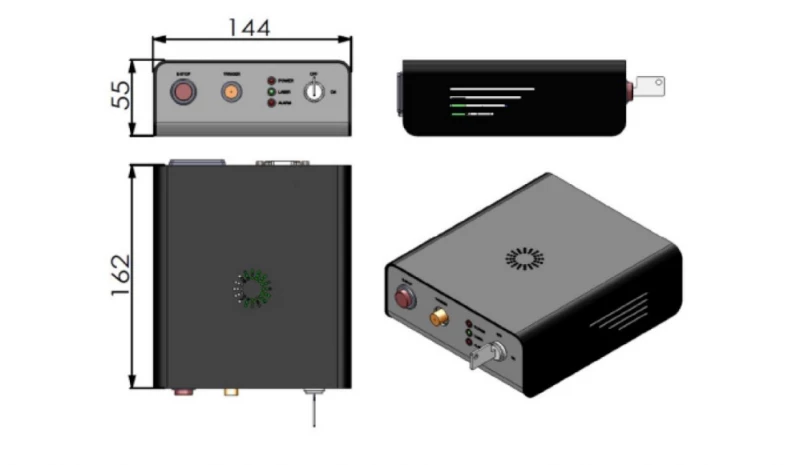

Thumbnail of FPYL-532-XXXT-SLM-DS Single Frequency DPSS Laser photo 1

Description

The FPLY-532-XXT-SLM Single Frequency DPSS Laser by Frankfurt Laser Company is a high-performance laser system designed for precision applications. With a wavelength of 532±1 nm and an output power range of 1-100 mW, this laser provides a stable and single-frequency output.

It features a transverse mode of TEM00 and operates in CW mode with a single longitudinal mode. The laser offers low power stability, fast warm-up time, and excellent pointing stability. With its compact design and narrow spectral line width, it is ideal for applications requiring high coherence and precision.

FPYL-532-XXXT-SLM-DS Single Frequency DPSS Laser

Visit the FLC - Frankfurt Laser Company GmbH Store

Specifications

Wavelength: 532 nm
Max Output Power: 100 mW
Cooling Method: Air-Cooled
Tunability: Fixed Wavelength
Control Interface: Other (not specified)
Expected Lifetime: 10000 hours
Operating Temperature: 10-35 °C
Pointing Stability After Warm-up: <0.05 mrad
Coherence Length: >50 m
Spectral Line Width: <0.00001 nm
Beam Height From Base Plate: 19 mm
Beam Diameter At The Aperture (1/e²): <1 mm
Beam Divergence (full Angle): <1.5 mrad
M² Factor: <1.2
Warm-up Time: <5 minutes
Power Stability (RMS, Over 4 Hours): <3 %
Longitudinal Mode: Single
Transverse Mode: TEM00

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 532±1 nm
  • Output Power Range: 1-100 mW
  • Transverse Mode: TEM00
  • Longitudinal Mode: Single
  • Operating Mode: CW
  • Power Stability: <1%, <2%, <3% (RMS, over 4 hours)
  • Warm-up Time: <5 minutes
  • M² Factor: <1.2
  • Beam Divergence (full angle): <1.5 mrad
  • Beam Diameter at the Aperture (1/e²): <1 mm
  • Beam Height from Base Plate: 19 mm
  • Spectral Line Width: <0.00001 nm
  • Coherence Length: >50 m
  • Pointing Stability after Warm-up: <0.05 mrad
  • Operating Temperature: 10-35°C
  • Expected Lifetime: 10,000 hours

Applications

  • Interferometry
  • Holography
  • Laser spectroscopy
  • Metrology
  • Optical sensing
  • Optical communication
  • Atomic and molecular physics
  • Laser cooling and trapping
  • Optical tweezers
  • Laser-based precision measurements

Frequently Asked Questions

What are the different types of DPSS laser products offered by FLC?
FLC offers a wide range of diode-pumped solid state laser products, including the smallest DPSS laser heads, low cost modules, low power and high power laser systems, and high quality single longitudinal mode laser systems with different power output and wavelengths.
What are some applications of the FPYL-532-XXXT-SLM-DS DPSS Laser?
The FPYL-532-XXXT-SLM-DS DPSS Laser is used in fluorescence and biomedical imaging, Raman spectroscopy and microscopy, lithography, and more.
What is the power output of the FPYL-532-XXXT-SLM-DS DPSS Laser?
The power output of the FPYL-532-XXXT-SLM-DS DPSS Laser varies depending on the specific product chosen.
What is the FPYL-5324-XXXT-SLM-DS DPSS Laser?
The FPYL-532-XXXT-SLM-DS DPSS Laser is a diode-pumped solid state laser product offered by FLC.

Got more questions? Use the inquiry form to ask the supplier directly.
