FQCW 266-50 Diode Pumped Continuous Wave Solid-State Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description

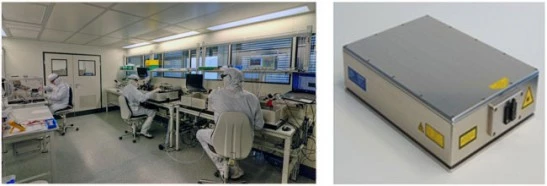

The FQCW 266-50/100 is a state-of-the-art diode-pumped continuous wave solid state laser, meticulously engineered by CRYLAS GmbH. Operating at a wavelength of 266 nm, this laser is designed for precision and reliability, offering a continuous wave output with single frequency and low noise, ensuring optimal performance for a variety of sophisticated applications. Its TEM00 beam quality and conduction cooling further enhance its operational stability and efficiency.
This laser system stands out with its remarkable power adjustability, providing nominal output power options of 50 mW and 100 mW, and allowing fine-tuning within a range of 5-55 mW and 10-110 mW respectively. The FQCW 266-50/100 boasts an impressive coherence length of over 1000 meters and a beam quality factor M2 of less than 1.3, ensuring superior beam performance and stability. Its vertical polarization exceeds a 100:1 ratio, contributing to its exceptional precision and control.
Designed for user convenience and safety, the FQCW 266-50/100 features a USB/RS 232 communication interface for seamless integration into existing systems. The laser system includes essential safety equipment such as a key switch and interlock, adhering to stringent safety standards. With a warm-up time of less than 15 minutes from a cold start, this laser is ready for action in no time, making it an ideal choice for demanding environments where efficiency and reliability are paramount.
The compact design of the FQCW 266-50/100 is evident in its dimensions, with the control unit measuring 363 x 325 x 115 mm and the laser head 379 x 270 x 91 mm, making it suitable for a variety of setups. The control unit weighs 5.3 kg, while the laser head weighs 17 kg, ensuring ease of installation and mobility. Operating within a temperature range of 20°C to 35°C, this laser system is built to perform under diverse conditions, making it a versatile tool for professionals across multiple industries.
FQCW 266-50 Diode Pumped Continuous Wave Solid-State Laser
Specifications |
|
|---|---|
| Wavelength: | 266 nm |
| Max Output Power: | 50 mW |
| Cooling Method: | Other (not specified) |
| Tunability: | Single Wavelength Tunable |
| Control Interface: | RS232/RS485, USB |
Features
- 266 nm Single Frequency Output: Provides precise UV laser emission ideal for analytical and spectroscopic applications.
- High Power Options: Available with 50 mW or 100 mW nominal output power and adjustable ranges.
- Ultra-Low Linewidth: Ensures narrow linewidth below 300 kHz with >1000 m coherence length for stable performance.
- Excellent Beam Quality: Delivers a TEM00 beam with M² <1.3 and low divergence for precise focusability.
- Low Optical Noise: Maintains optical noise under 0.5% rms for sensitive measurements.
- Integrated Cooling and ACS: Conduction cooling with Automatic Crystal Shifter enhances reliability and minimizes downtime.
- User-Friendly Interface: Equipped with USB and RS232 connectivity for easy integration and control.
- Compact Design: Lightweight control unit (5.3 kg) and compact laser head (17 kg) for flexible installation.
Applications
- Raman Spectroscopy: Provides stable UV excitation for high-resolution Raman analyses.
- Precision Inspection: Ideal for semiconductor wafer inspection and microstructure analysis.
- Analytical Instrumentation: Enhances performance in advanced spectroscopy and chemical analytics.
- DVD Mastering: Supports UV mastering applications requiring high stability and beam quality.
Frequently Asked Questions
Heat removal from the CryLaS FQCW-266-50 laser head is done by air convection, and no other provisions such as a chiller or fan are needed.
The nominal output power of the CryLaS FQCW-266-50 laser is 50 mW, with an output power adjustability range of 5-55 mW.
The CryLaS FQCW-266-50 laser is suitable for Raman spectroscopy, wafer inspection, and photoluminescence.
The beam quality factor of the CryLaS FQCW-266-50 laser is M2 < 1.3.
The CryLaS FQCW-266-50 laser emits a fixed wavelength of 266 nm.
