Description
The C+L Band ASE Broadband Light Source from BOX Optronics Tech is an advanced optical module designed for applications in fiber optic sensing and medical imaging. This module utilizes spectral flattening technology to deliver high output power with a stable and flat spectrum across the C+L band (1528–1603 nm).
Key features include power stability, adjustable output power options (10mW, 20mW, 50mW, and 100mW), and a constant spectral flatness of 2.5 dB (typical) and 3 dB (maximum). The light source also offers low power instability, with short-term (15 minutes) and long-term (8 hours) variations kept to ≤±0.02 dB and ≤±0.05 dB, respectively. Additionally, it has a low degree of polarization (≤0.2 dB) and uses FC/APC connectors with SMF-28e fiber.

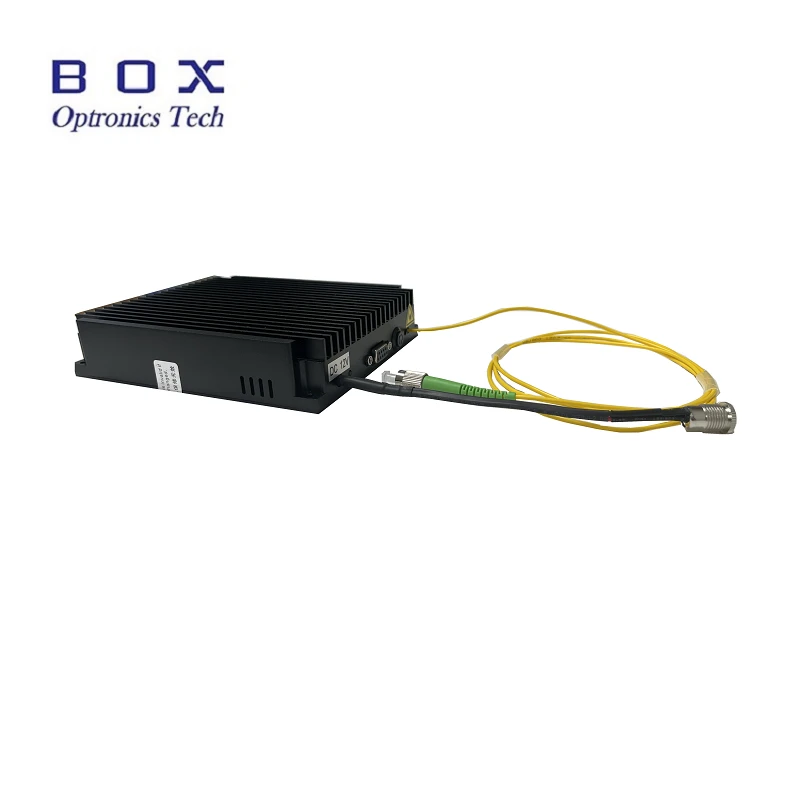

The module is available in both benchtop and compact module form factors, with dimensions of 260(W)×280(D)×120(H) mm for benchtop and 150(W)×125(D)×20(H) mm for the module. It operates on AC 110–240V (benchtop) or DC 5V (module) power supply and features a DB9 female (RS232) communication interface for remote monitoring and control.
1528~1603nm C+L band ASE Broadband Light Source
Specifications
| Bandwidth: | 75 nm |
|---|---|
| Center Wavelength: | 1565 nm |
| Output Power: | 10 mW |
| Polarization: | Unpolarized |
| Operating Wavelength: | 1528~1603 nm |
| Output Power: | 10/20/50/100 mW |
| Power Adjustable(optional): | Adjustment range 10% ~ 100% |
| Spectral Flatness: | 2.5(Typ.), 3(Max.) dB |
| Power Instability (Short-term 15mins): | ≤±0.02 dB |
| Power Instability (Long-term 8hours): | ≤±0.05 dB |
| Fiber Type: | SMF-28e |
| Connector: | FC/APC |
Download Data Sheet
Features
- Power stability
- Flat spectrum
- Remote monitoring
Applications
- Fiber optic sensing
- Medical imaging
- Fiber optic device testing
Frequently Asked Questions
What is the C+L Band ASE Broadband Light Source?
What are the main features of this light source?
What applications can the C+L Band ASE Broadband Light Source be used for?
What is the operating wavelength range of the light source?
What are the power output options available for this light source?
What type of fiber is used with this light source?
What are the dimensions and power supply requirements for the benchtop version of the light source?
