Description
A tool of ultimate precision, the J Series platform is the largest of our laser micromachining platforms.
Designed to be proficient in technically challenging applications, from machining transparent materials to high aspect ratio features. The J Series is commonly built with either a high-powered picosecond or femtosecond laser and has the option to include multi-wavelength capabilities.
The J Series is typically used for cutting edge production and R&D. Links to published research, conducted using an Oxford Lasers J Series, can be found in the drop down featured below.

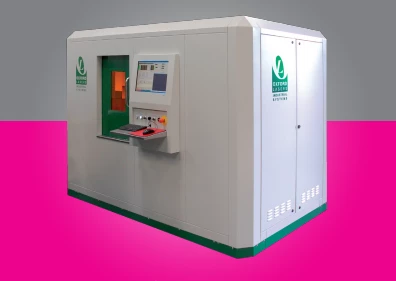

J Series High Power Multiwavelength Laser Micromachining System
Specifications
| Materials: | Metals |
|---|---|
| Laser Type: | DPSS (Other) |
| Laser Wavelength: | 325 nm (UV), 351 nm (UV), 355 nm (UV), 527 nm (green), 532 nm (green), 800 nm (near IR), 810 nm (near IR), 1054 nm (IR), 1064 nm (IR), 1070 nm (IR), 10.6 um (IR) |
| Laser Output Power: | Not Specified |
| Laser Safety: | Class 1 |
| Work Area X: | 150 mm |
| Work Area Y: | 150 mm |
| Processing Speed: | Not Specified |
| Features And Options: | Includes Safety Enclosure, Multiple Wavelength, Other (see Data Sheet) |
Download Data Sheet
Features
- Turn-key
- Class 1 laser safe
- Granite Construction
- Vibration Isolated
- Solid state laser
- Single screen software control
- Advanced CNC controller
- Linear motor, linear encoder XY stages
- 150x150mm travel XY
- Motorised Z axis 50mm travel
- On-axis vision system with cross hair
- Motorized optical attenuator
Applications
J Series High Power Multiwavelength Laser Micro-Matching System can be used for the following applications:
- Materials Processing
- Thin Film Scribing
- Microelectronics
- Optoelectronics
Frequently Asked Questions
What applications can the J Series High Power Multiwavelength Laser Micromachining System be used for?
The J Series can be used for materials processing, thin film scribing, microelectronics, and optoelectronics.
What are the features of the J Series High Power Multiwavelength Laser Micromachining System?
The J Series features turn-key operation, Class 1 laser safety, granite construction, vibration isolation, solid state laser, single screen software control, advanced CNC controller, linear motor, linear encoder XY stages, 150x150mm travel XY, motorized Z axis 50mm travel, on-axis vision system with cross hair, and motorized optical attenuator.
What are the laser wavelength and pulse duration options for the J Series High Power Multiwavelength Laser Micromachining System?
Laser wavelength options include IR, visible, and UV, while pulse duration options include pico second and femto second.
What is the J Series High Power Multiwavelength Laser Micromachining System?
The J Series is a laser micromachining platform designed for technically challenging applications, with the option to include multi-wavelength capabilities.
What options are available for the J Series High Power Multiwavelength Laser Micromachining System?
Options include up to 500mm travel XY, air-bearing XY, 2D and 2.5D CADCAM, trepanning systems, taper control systems, galvo scanner, auto-focus, auto-alignment, high resolution off-axis camera, height/depth sensor options, 4th and 5th axes (rotation), vacuum and mechanical chuck options, multiple wavelengths on the same system, and fume extraction system.
