What are the key considerations when choosing a multifunctional laser workstation?

Because of their multifunctional nature, selecting a proper workhorse for your application will require answering several questions. The most important and primary of those questions is the understanding of the process requirements for your particular application. Are you looking for a laser-marker/laser-cutter? Or perhaps you also need, laser ablating or laser welding added as a capability? Are you dealing with large immobile objects that would benefit from handheld devices? Once you make the short list of the processes that will narrow down the list of systems that would fit your applications. Next, you will want to look into the laser source: the type of the laser (DPSS, Fiber, Excimer, CO2, etc.), the output power, the wavelength, and more, all of which tie back into the processes/functions they can enable). You will also want to look into the beam delivery options: are you looking for a flatbed system or you need a speedier, galvo scanner based, system. Would you need more than 3-axes of control? Finally, what features you need, off-axis camera, fume extraction unit, and water-to-water chiller, are just a few of the options to look into. If in doubt always ask questions to the suppliers.

What does Class-1 safety mean?

Class-1, Class-2, etc. refers to the laser safety level in the standard laser safety classification system, with Class-1 being the safest and Class-4 – the most dangerous. Class-1 lasers are typically considered safe in a sense that under normal operating condition they do not emit laser radiation at a level which is harmful to the eye. It is very important to note that all these laser systems have embedded laser sources that are very powerful and can cause significant damage to human eye and skin under direct exposure. Class-1 safety in these systems is achieved through special safety enclosure and safety features that disallow operation of the laser with open door or lid. It is assumed that Class-1 safety will quickly be defeated if the safety features are bypassed.

How to get the price of these multipurpose laser workstations?

Because of the complexity of these systems the price on these machines can vary significantly based on the options. To get accurate pricing information please inquire from the supplier by requesting a quote.

Deliver to
United States

Laser Material Processing
Micromachining Lasers
Multipurpose Laser Workstations

Multipurpose Laser Workstations

Filter (0)

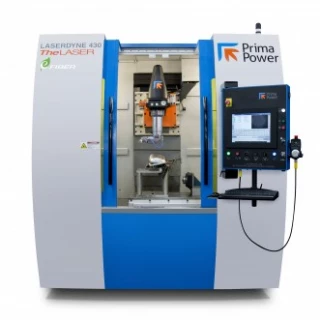

LASERDYNE 430 BeamDirector Multipurpose Laser Workstation

Inquire Price

Sold by: Prima Power Laserdyne LLC Ships from: United States

Specifications
Processes:	Cutting, Drilling, Welding
Materials:	Metals, Polimers, Ceramic, Glass
Laser Type:	Fiber
Laser Safety:	Not classified
Work Area X:	585 mm

LASERDYNE 795 5-Axis Laser Machining System

Inquire Price

Sold by: Prima Power Laserdyne LLC Ships from: United States

Specifications
Processes:	Cutting, Drilling, Welding
Materials:	Metals, Stone, Ceramic
Laser Type:	Fiber
Laser Safety:	Class 1
Work Area X:	1000 mm

Did You Know?

Multipurpose Laser Workstations found on this category are laser machining stations that offer multiple processing modalities. Many workstations are capable of laser marking, laser cutting, laser welding, laser cleaning, etc. all in one cell without significant change to the system. Many of these laser machining systems come with a Class-1 safety enclosure ensuring the safety of operation. Many suppliers also offer custom configurations and ability to outfit the system with custom laser sources including DPSS, fiber and ultrafast laser systems. Laser beam delivery is also an important consideration when choosing a multifunctional laser workstation. While classical flatbed and galvo scanner beam deliveries are the most commonly available options, many workstations offer multi-axis processing (5-axis, 6-axis etc.) capabilities as well as rotary attachments, allowing complete flexibility of processing objects with shapes of significant complexity. Choosing a multipurpose laser workstation might not seem straightforward. So, please do not hesitate to ask any questions to the suppliers on FindLight. Their experts will quickly respond with concrete answers.

Related Resources

Frequently Asked Questions

The main advantage of multipurpose laser workstations is their ability to work in various laser processing modes. This includes laser marking, laser engraving, laser cutting, laser cleaning and more. Many applications of these systems include production settings that simultaneously depend on various processes, e.g. laser cutting and laser marking. In situations like that it is important to be able to quickly switch between different operating modes on the same machine. On large scale projects this can save significant processing resources on changing workstations, arranging complicated production or assembly lines and more.

Brief Introduction to Multipurpose Laser Workstations

Multipurpose laser workstations have emerged as essential tools in precision manufacturing, combining versatility, accuracy, and efficiency to meet the diverse needs of modern industries. These advanced systems integrate various laser technologies and motion control components, enabling a wide range of micromachining applications on materials such as metals, polymers, ceramics, and glass.

A significant advantage of multipurpose laser workstations is their adaptability. They can be configured with different laser sources, including femtosecond, picosecond, and nanosecond lasers, to suit specific processing requirements. This flexibility allows for operations like drilling, cutting, ablation, and surface texturing with minimal thermal impact, preserving the integrity of sensitive materials.

The integration of high-precision motion systems, such as galvanometer scanners and multi-axis stages, enhances the capability of these workstations to produce intricate features with sub-micron accuracy. This level of precision is crucial in applications like microelectronics fabrication, medical device manufacturing, and aerospace component production, where exacting standards are mandatory.

Automation and user-friendly interfaces are also key features of modern multipurpose laser workstations. Advanced software allows for seamless import of design files and real-time process monitoring, streamlining the workflow and reducing the potential for errors. Some systems offer modular designs, enabling easy upgrades and customization to adapt to evolving production needs.

In terms of environmental impact, these workstations offer a cleaner alternative to traditional machining methods. The non-contact nature of laser processing reduces material waste and eliminates the need for consumables like cutting fluids, aligning with sustainable manufacturing practices.

Industries such as automotive, electronics, and biomedical engineering benefit from the capabilities of multipurpose laser workstations. For instance, in the medical field, they facilitate the production of components like stents and catheters with high precision and repeatability. In electronics, they enable the fabrication of micro-scale circuits and components essential for modern devices.

As technology advances, multipurpose laser workstations continue to evolve, offering greater precision, speed, and integration capabilities. Their role in enhancing manufacturing processes and enabling innovation across various sectors underscores their importance in today's industrial landscape.
