Description
The LASERDYNE® 795, a 5-axis laser machining system, is designed to drill, weld, and cut medium to large 3D parts with a unique moving beam motion system. Constructed for high-speed operation without compromising mechanical accuracy, it is the first and only standard built multi-axis laser system to guarantee volumetric accuracy.
The LASERDYNE 795 is designed to accept a wide variety of industrial lasers for 2D and 3D drilling, welding, and cutting parts.

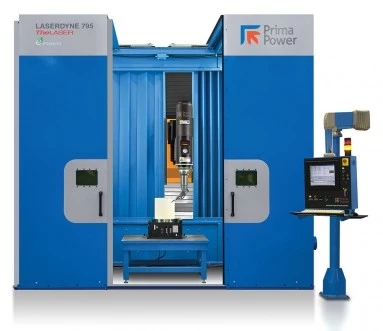

LASERDYNE 795 5-Axis Laser Machining System
Specifications
| Processes: | Cutting, Drilling, Welding |
|---|---|
| Materials: | Metals, Stone, Ceramic |
| Laser Type: | Fiber |
| Laser Safety: | Class 1 |
| Work Area X: | 1000 mm |
| Work Area Y: | 1000 mm |
| Number Of Axes: | 3-Axis, 5-Axis |
| Beam Delivery: | Galvo Scanner |
| Features And Options: | Integrated, Multi-Axis |
Download Data Sheet
Features
The open frame architecture and moving beam motion system allows the system to be configured to handle parts of virtually unlimited size.
Applications
These systems are used by aerospace, turbine engine and contract manufacturing companies that require flexibility of motion and tight tolerances when laser processing.
Frequently Asked Questions
What industries use the LASERDYNE 795?
The LASERDYNE 795 is used by aerospace, turbine engine, and contract manufacturing companies that require flexibility of motion and tight tolerances when laser processing.
What is the LASERDYNE 795?
The LASERDYNE 795 is a 5-axis laser machining system designed for drilling, welding, and cutting medium to large 3D parts with a unique moving beam motion system.
What kind of accuracy does the LASERDYNE 795 offer?
The LASERDYNE 795 is the first and only standard built multi-axis laser system to guarantee volumetric accuracy. It offers X, Y, and Z accuracy of ± 0.0004 inch (0.01 mm) per 20 inches of travel and ± 0.0008 inch full travel, and BeamDirector accuracy of ± 6 arcseconds.
What kind of parts can the LASERDYNE 795 handle?
The LASERDYNE 795 can handle parts of virtually unlimited size and is designed to accept a wide variety of industrial lasers for 2D and 3D drilling, welding, and cutting.
What kind of support does Prima Power Laserdyne offer for the LASERDYNE 795?
Prima Power Laserdyne offers access to the latest laser processing technology as it is developed through a multi-faceted program that includes a technical journal, the LASERDYNE Interface, and ongoing access to the Prima Power Laserdyne applications engineering staff and equipment within the Prima Power Laserdyne technology center.
