Description
The most compact platform in the Oxford Lasers portfolio, the A-Series was designed as an entry level turnkey laser micromachining tool. Used primarily for process development and R&D, the A-Series with its compact design is also suitable for smaller production applications.
The A-Series is typically used for Process Development, Prototyping and Pilot Production but can be modified for numerous applications.

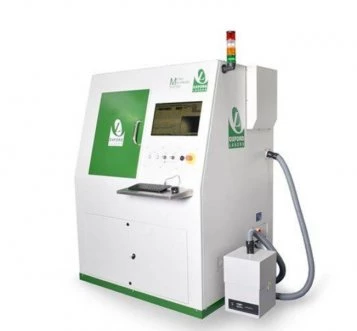

A Series Compact Laser Micro-Machining System
Specifications
| Materials: | Metals, Ceramics |
|---|---|
| Laser Type: | DPSS (Nd:YAG) |
| Laser Wavelength: | 355 nm (UV) |
| Laser Output Power: | Not Specified |
| Laser Safety: | Class 1 |
| Work Area X: | 400 mm |
| Work Area Y: | 400 mm |
| Processing Speed: | Not Specified |
| Features And Options: | Multi-Axis |
Download Data Sheet
Features
A Series Compact Laser Micro-Machining System offer the following key features:
- High performance micromachining system
- Powerful, user friendly Cimita software
- Class 1 laser safe steel enclosure
- High power solid state laser
- Granite chassis with vibration isolation
- On-axis vision system with cross-hair ∙ XY axes, 150mm travel, 1 micron resolution
- Motorized Z axis 50mm travel
- Integrated power meter
- Motorized optical attenuator
Applications
A Series Compact Laser Micro-Machining System has found applications in
- Micro-hole drilling
- Fine cutting
- Ablation
- Engraving and Marking
Frequently Asked Questions
What are the applications of the A-Series Compact Laser Micro-Machining System?
The A-Series Compact Laser Micro-Machining System has found applications in micro-hole drilling, fine cutting, ablation, engraving, and marking.
What are the dimensions of the A-Series Compact Laser Micro-Machining System?
The dimensions of the A-Series Compact Laser Micro-Machining System are 1490(W) x 1200(D) x 1960(H) mm, and it has an integrated workstation, support frame, and electrical system. It requires a single-phase electrical installation and weighs 1000 kg.
What are the key features of the A-Series Compact Laser Micro-Machining System?
The A-Series Compact Laser Micro-Machining System offers high performance micromachining, a powerful and user-friendly Cimita software, a class 1 laser safe steel enclosure, a high power solid state laser, a granite chassis with vibration isolation, an on-axis vision system with cross-hair, XY axes, 150mm travel, 1 micron resolution, a motorized Z axis 50mm travel, an integrated power meter, and a motorized optical attenuator.
What are the options available for the A-Series Compact Laser Micro-Machining System?
The options available for the A-Series Compact Laser Micro-Machining System include auto-align, auto-focus, 400mm travel XY, 150mm travel Z, 4th axis (rotation), trepanning systems, galvo scanner, vacuum & mechanical chuck options, fume extraction system, and Cadcam.
What is the A-Series Compact Laser Micro-Machining System?
The A-Series Compact Laser Micro-Machining System is an entry-level turnkey laser micromachining tool that is used primarily for process development and R&D.
