Description
Having spent over 40 years working with lasers and laser technology we wanted to design a robust production tool for our customers that we would use ourselves. On that basis the C Series was born.
This platform is a designated production tool, built to operate in the most rigorous of continuous production environments. It is available with a range of lasers and motion controllers, optimized to your specific production requirements.
The C Series is typically used for industrial production but is equally suited to pilot production runs where a high level of precision is required.

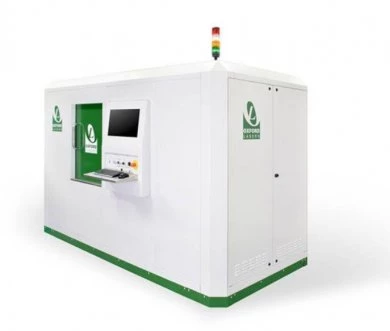

C Series Robust Full Production System
Specifications
| Materials: | Metals |
|---|---|
| Laser Type: | DPSS (Other) |
| Laser Wavelength: | 355 nm (UV) |
| Laser Output Power: | Not Specified |
| Laser Safety: | Class 1 |
| Work Area X: | 150 mm |
| Work Area Y: | 150 mm |
| Processing Speed: | Not Specified |
| Features And Options: | Integrated, Multi-Axis |
Download Data Sheet
Features
- Turn-key
- Class 1 laser safe
- Granite construction
- Vibration Isolated
- Ultra-Stable Optical Mounts
- Solid state laser
- Single screen software control
- Advanced CNC controller
- Linear motor, linear encoder XY stages
- 150x150mm travel XY
- Motorized Z axis 50mm travel
- On-axis vision system with cross-hair
- Integrated in-chuck power meter
- Industrial PC
- Motorized optical attenuator
Applications
- Micro-hole drilling
- Fine cutting
- Micro-milling
- Ablation
- Engraving and Marking
Frequently Asked Questions
What are the applications of the C Series Robust Full Production System?
The C Series Robust Full Production System can be used for micro-hole drilling, fine cutting, micro-milling, ablation, engraving, and marking.
What are the dimensions of the C Series Robust Full Production System?
The dimensions of the C Series Robust Full Production System are 2800(W) x 1560(D) x 2050(H) mm. It also includes an integrated workstation, support frame, and electrical system (2300kg) with a single-phase electrical installation.
What are the features of the C Series Robust Full Production System?
The C Series Robust Full Production System features turn-key, class 1 laser safe, granite construction, vibration isolated, ultra-stable optical mounts, solid-state laser, single screen software control, advanced CNC controller, linear motor, linear encoder XY stages, 150x150mm travel XY, motorized Z axis 50mm travel, on-axis vision system with cross-hair, integrated in-chuck power meter, industrial PC, and motorized optical attenuator.
What are the laser wavelength options for the C Series Robust Full Production System?
The laser wavelength options for the C Series Robust Full Production System include 1064nm, 532nm, 355nm, and 266nm.
What is the C Series Robust Full Production System?
The C Series Robust Full Production System is a designated production tool built for rigorous continuous production environments. It is available with a range of lasers and motion controllers optimized to your specific production requirements.
