Description
Towermark XYZ is a 3-axis laser marker designed to meet the needs of businesses that require more demanding production requirements. It is a compact, rigid, and precise laser machining center that can mark large and heavy parts with a maximum size of 1,000 x 500 mm.
The machine has a fixed working table, and the axis system is built as a single body, allowing for the loading of heavy parts up to 200 kg. The hideaway Y-axis makes loading easy, while the working table's footprint is minimized.
The XYZ axes system is the heart of the machine, consisting of a unit supported by the exterior structure made of Bosch profiles. This design ensures stability and rigidity, making the system independent of the exterior structure.
Towermark XYZ also features a rotating head that allows the scanning head to be turned from 0 to 90°, making it easier to mark parts at different angles. The machine is compatible with several accessories such as the 3-axis-head for cylindrical parts, W-axis (with tailstock), TTL and lateral vision systems, and the rotating head.

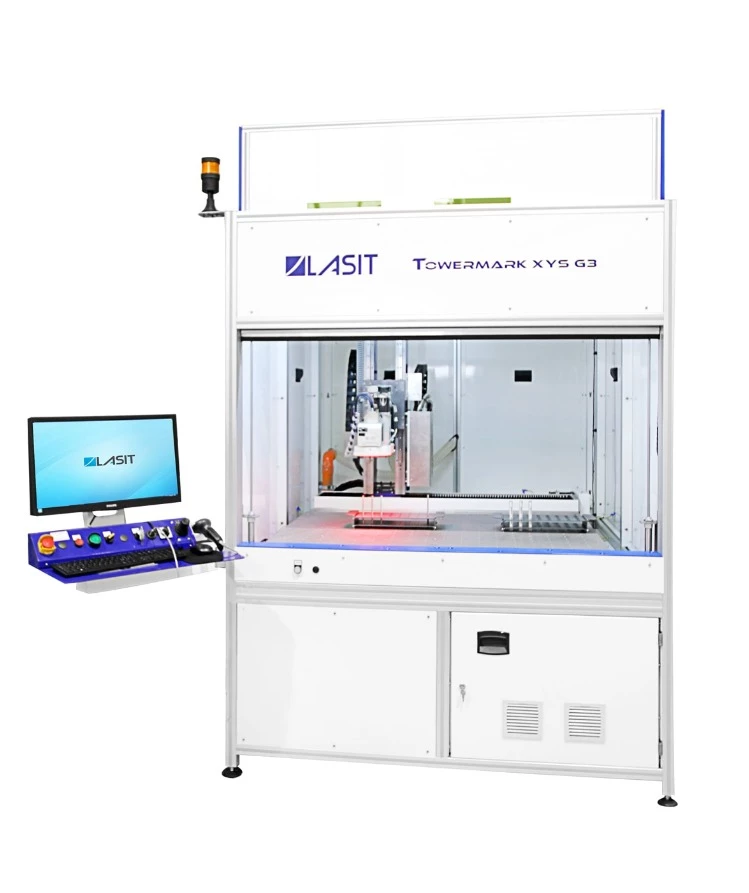

Towermark XYZ 3-Axis Laser Marker
Specifications
| Work Area X: | 1000 mm |
|---|---|
| Work Area Y: | 500 mm |
| Beam Delivery: | 3 Axes |
| Laser Source: | CO2, Fiber |
| Laser Output Power: | Not Specified |
| Laser Wavelength: | 1064 nm (IR) |
| Marking Speed: | Not Specified |
| Voltage Requirement: | Other / Not Specified |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Wood, Paper, Textile, Concrete, Granite, Marble, Nylon, Acrylic, Plexiglass, Ceramic, Leather |
| Air Assist: | Included |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Included |
| Maximum Load: | 200 kg |
| Axis System: | 3-axis built as a single body |
| Rotating Head: | 0-90° |
| Accessories Compatibility: | 3-axis head, W-axis with tailstock, TTL and lateral vision systems, rotating head |
| Suitable For: | Large and heavy parts, cylindrical parts, metal sheets, circular blades |
| Table: | Fixed working table |
| Design: | Compact, rigid, and precise |
| Application: | High-volume industrial production |
Features
- Large marking area: 1,000x500x500mm
- 3-axis system built as a single body
- Rotating head for marking surfaces at different angles
- Compatible with accessories such as a 3-axis head, W-axis with tailstock, and TTL vision systems
- Ideal for marking large and heavy parts up to 200 kg
- Hideaway Y-axis facilitates loading of heavy parts
- Compact, rigid, and precise design
Applications
- Suitable for marking hundreds of parts a day
- Ideal for marking very large parts such as metal sheets or circular blades
- Suitable for marking cylindrical parts with a 3-axis head and W-axis with tailstock
- Suitable for marking parts with lateral vision or TTL systems
Frequently Asked Questions
What is the maximum size of parts that can be marked with the Towermark XYZ laser marker?
                        The Towermark XYZ laser marker can mark parts with a maximum size of 1,000 x 500 mm.

                How much weight can the Towermark XYZ laser marker handle?
                        The Towermark XYZ laser marker can handle heavy parts weighing up to 200 kg.

                Can the Towermark XYZ laser marker mark parts at different angles?
                        Yes, the Towermark XYZ laser marker features a rotating head that allows the scanning head to be turned from 0 to 90°, making it easier to mark parts at different angles.

                What accessories are compatible with the Towermark XYZ laser marker?
                        The Towermark XYZ laser marker is compatible with accessories such as a 3-axis head for cylindrical parts, W-axis with tailstock, TTL and lateral vision systems, and the rotating head.

                What types of parts is the Towermark XYZ laser marker suitable for marking?
                        The Towermark XYZ laser marker is suitable for marking hundreds of parts a day, including very large parts such as metal sheets or circular blades. It is also suitable for marking cylindrical parts with a 3-axis head and W-axis with tailstock, as well as parts with lateral vision or TTL systems.
