Description
The Micromark G3 is a functional and compact bench laser marker that offers optimal performance at an affordable price. It is designed to meet varied production requirements while maintaining a relatively low price.
The machine is able to work independently by managing door opening/closing times through software. It has a structure with openings on three sides, which simplifies loading and processing of parts longer than the entire machine.
The electrical panel and laser source are fully integrated into the rear of the machine to avoid encumbrance on the workbench. The motorized Z-axis and joystick allow for optimal laser marking and positioning on geometrically complex surfaces with difficult curves or angles.
The system is also designed to work with a robot thanks to the electric port. The marking area ranges from ø140 to ø220mm, depending on the lens. It comes with a PC HP, monitor, and both FlyCAD/FlyControl software packages with free upgrades.
Compatible accessories include a rotating axis, tilting rotating axis, rotating head, vision system, and metal sheet tightener. Lasit offers a free consultation to help customers choose the best solution for their requirements.

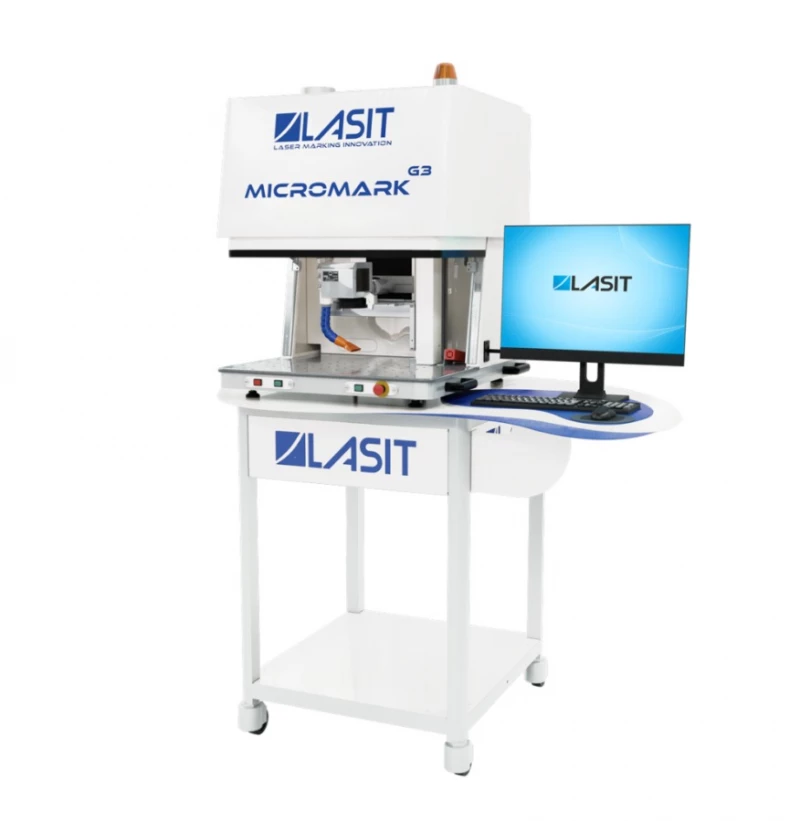

Micromark G3 Laser Marking System
Specifications
| Work Area X: | 590 mm |
|---|---|
| Work Area Y: | 295 mm |
| Beam Delivery: | 4 Axes |
| Laser Source: | Fiber |
| Laser Output Power: | 20 W |
| Laser Wavelength: | 1064 nm (IR) |
| Marking Speed: | Not Specified |
| Voltage Requirement: | Other / Not Specified |
| Materials: | Stainless Steel, Gold, Silver, Titanium, Platinum, Plastic, Acrylic, Plexiglass, Leather |
| Air Assist: | Included |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Included |
| Marking Area: | ø140 to ø220mm depending on the lens |
| Maximum Marking Height: | 200 mm with FFL160 | 95 mm with FFL254 |
| Type Of Door: | Electric mm |
| Compatible Accessories: | Rotating axis, Tilting rotating axis |
| Compatible Accessories (not Included): | Rotating head, Vision system, Metal sheet tightener |
| Maximum Weight On The Plane: | 40 kg |
| Machine Dimensions (H X L X D): | 835 x 710 x 855 mm |
Download Data Sheet
Features
- Opening on three sides for easy access to the marking compartment
- Integrated system with the electrical panel and laser source fully integrated into the rear of the machine
- Motorized Z axis for easy positioning
- Compatible with rotating and tilting rotating axis accessories
Applications
- Automotive components marking
- Medical devices marking
- Aerospace components marking
- Jewelry marking
- Firearms marking
- Electronic components marking
- Plastic products marking
- Metal products marking
- Identification and traceability of parts
- Branding and customization of products
Frequently Asked Questions
What is the marking area of the Micromark G3 Laser Marking System?
The marking area ranges from ø140 to ø220mm, depending on the lens.
Can the Micromark G3 work with a robot?
Yes, the Micromark G3 is designed to work with a robot thanks to the electric port.
What accessories are compatible with the Micromark G3?
Compatible accessories include a rotating axis, tilting rotating axis, rotating head, vision system, and metal sheet tightener.
What industries can benefit from using the Micromark G3?
The Micromark G3 can be used in automotive components marking, medical devices marking, aerospace components marking, jewelry marking, firearms marking, electronic components marking, plastic products marking, metal products marking, identification and traceability of parts, and branding and customization of products.
Does Lasit offer consultation to help customers choose the best solution?
Yes, Lasit offers a free consultation to help customers choose the best solution for their requirements.
