Description
The LXQ-HP is a high-power single-mode fiber laser system designed for system integrators to succeed when facing the most challenging industrial applications.
With a maximum power of 500W, it is the go-to product for laser marking, laser cleaning and laser texturing applications requiring a very short cycle time.

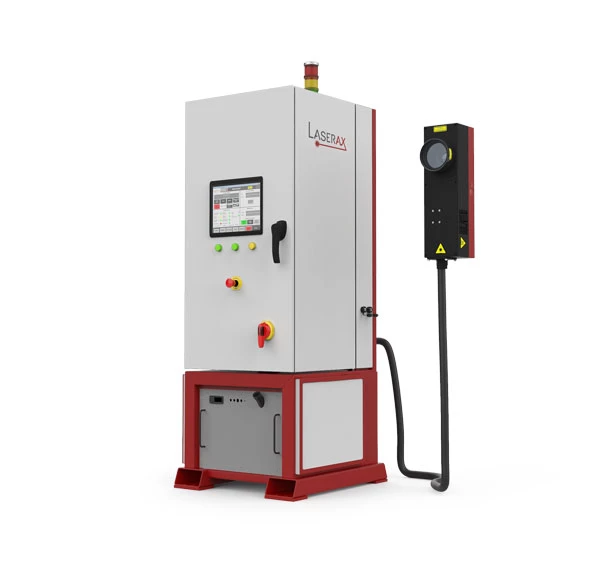

LXQ-HP Series - High Power Fiber Laser Marking and Cleaning System
Specifications
| Work Area X: | 280 mm |
|---|---|
| Work Area Y: | 280 mm |
| Beam Delivery: | Other |
| Laser Source: | Fiber |
| Laser Output Power: | 500 W |
| Laser Wavelength: | 1064 nm (IR) |
| Marking Speed: | Not Specified |
| Voltage Requirement: | 220V - 50Hz |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium |
| Air Assist: | Included |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Included |
| Beam Quality: | < 1.1 M² |
| Spot Size: | 25 µm |
| Focal Length: | 160 mm |
| Fiber Cable Length: | 8 m |
| Power Consumption: | 3.5 kW |
| Laser Type: | Ytterbium-doped fiber |
| Pulse Energy: | 2 mJ |
| Pulse Width: | 500 ns |
Download Data Sheet
Features
- High-power single-mode fiber laser system
- Maximum power of 500W
- Ideal for laser marking, cleaning, and texturing applications
- Advanced autofocus technology for unmatched precision and repeatability
- Dynamic autofocus system for cleaning parts with various shapes and sizes
- Robot compatible with up to 8m of fiber cable
- Easy to integrate with preconfigured, pre-calibrated, and pre-tested configuration
- Class-1 Laser Certification Service available for safety issues
- Real-time remote support available for installation, training, and after-sales support
Applications
- Hand-held laser cleaning
- Automated laser cleaning
- Cleaning moving parts
- Robot mounted laser marking, cleaning, and texturing
- Industrial laser marking, cleaning, and texturing
Frequently Asked Questions
What is the maximum power of the LXQ-HP Series fiber laser system?
The maximum power of the LXQ-HP Series fiber laser system is 500W.
What applications is the LXQ-HP Series suitable for?
The LXQ-HP Series is suitable for laser marking, cleaning, and texturing applications.
Does the LXQ-HP Series have autofocus technology?
Yes, the LXQ-HP Series features advanced autofocus technology for unmatched precision and repeatability.
Can the LXQ-HP Series be integrated with robots?
Yes, the LXQ-HP Series is robot compatible and can be integrated with up to 8m of fiber cable.
Is there a laser certification service available for safety issues?
Yes, there is a Class-1 Laser Certification Service available for safety issues.
