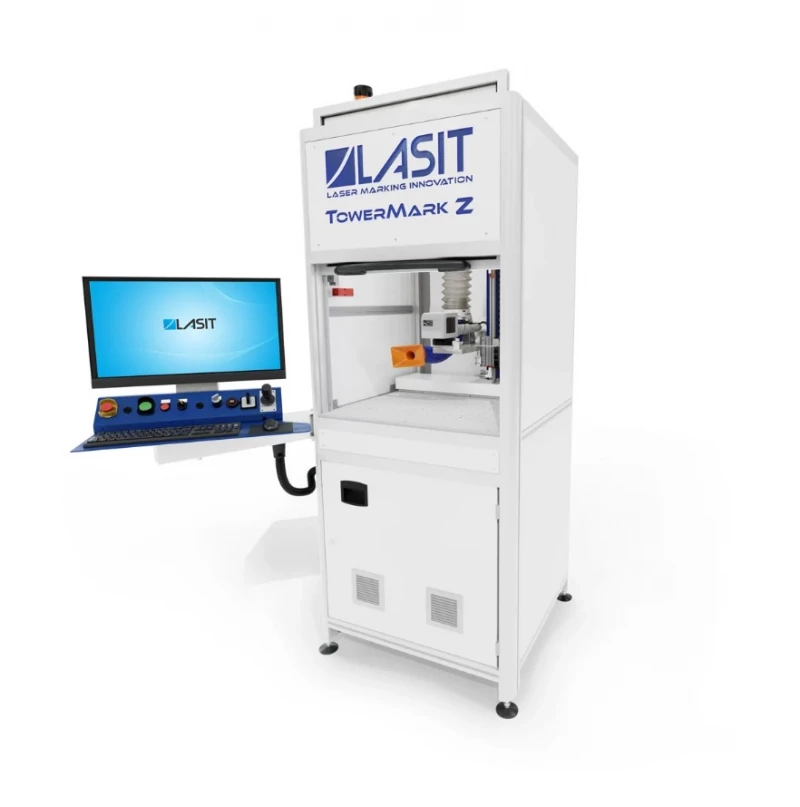

TowerMark Z Laser Marking Machine

Name: TowerMark Z Laser Marking Machine
Brand: LASIT - Sistemi e tecnologie elettrottiche SPA
Availability: InStock

Description

TowerMark Z Laser Marking Machine is a versatile, manual or robot-operated system designed to mark parts with a height of up to 400mm.

The system is easy to move and can be customized with several upgrades for increased productivity and expanded capabilities.

Specifications

Work Area X:	750 mm
Work Area Y:	500 mm
Beam Delivery:	4 Axes
Laser Source:	Fiber
Laser Output Power:	20 W
Laser Wavelength:	1064 nm (IR)
Marking Speed:	Not Specified
Voltage Requirement:	Other / Not Specified
Materials:	Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Wood, Paper, Textile, Concrete, Granite, Marble, Nylon, Acrylic, Plexiglass, Ceramic, Leather
Air Assist:	Included
Fume Extraction Unit:	Not specified
Safety Enclosure:	Included
Marking Area:	00mm up to ø310mm (depending on choice of lens)
Z Axis:	Motorized, up to 400mm
Door:	Manual or pneumatic
Compatible:	TTL vision system, rotary axis, table with 300mm stroke,
Accessories:	High definition side vision system, sheet tensioner
Operation:	Manual or robot-operated
Size:	Compact
Mobility:	Easy to move with transpallet or by pushing it (wheeled version)

Download Data Sheet

Features

MOTORIZED Z AXIS: The Z axis allows for marking parts with a height of up to 400mm, with precision and speed.
LARGE WORKING AREA: The marking machine has a working area of 750x570mm.
COMPATIBLE ACCESSORIES: The machine is compatible with a TTL vision system for marking small products, a rotary axis for cylindrical parts, a table with a 300mm stroke to increase the work area, a high definition side vision system, and a sheet tensioner for thin sheets.
EASY TO MOVE: All components, including the suction system, are housed in the structure, making it easy to move with a transpallet or by pushing it.
MANUAL OR PNEUMATIC DOOR: The door can be both manual and pneumatic, and the large viewing glass and interior lighting system provide a clear view of the objects to be engraved.
X AXIS UPGRADE: The machine is prepared for the insertion of the X axis, allowing for the translation of the head along an axis of 500mm to obtain a marking area of 600x100mm.

Applications

Automotive parts
Metal parts
Thin sheets
Cylindrical parts

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Italy

Sold by:

LASIT - Sistemi e tecnologie elettrottiche SPA

On FindLight:

since 2023

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the maximum height that the TowerMark Z Laser Marking Machine can mark?

The TowerMark Z Laser Marking Machine can mark parts with a height of up to 400mm.

What is the working area of the marking machine?

The marking machine has a working area of 750x570mm.

What accessories are compatible with the machine?

The machine is compatible with a TTL vision system for marking small products, a rotary axis for cylindrical parts, a table with a 300mm stroke to increase the work area, a high definition side vision system, and a sheet tensioner for thin sheets.

Is the machine easy to move?

Yes, all components, including the suction system, are housed in the structure, making it easy to move with a transpallet or by pushing it.

Can the door of the machine be both manual and pneumatic?

Yes, the door can be both manual and pneumatic, and it has a large viewing glass and interior lighting system for a clear view of the objects to be engraved.
