Description
The LFS-G45 high speed glass cutting system is able to process both normal and chemically strengthened glass sheets from 0.1-3mm thick. A high power laser is employed to deliver superior glass cutting results at speeds up to 1000mm/s. Processing is based on preset .dxf file data, giving the user greater processing options. Loading, unloading, alignment, and processing are all automated.

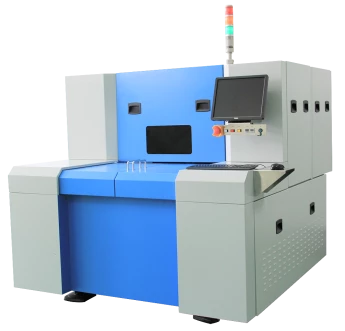

High Speed Laser Glass Cutting System
Specifications
| Format: | Tower |
|---|---|
| Laser Source: | DPSS (Nd:YAG) |
| Laser Output Power: | 30 W |
| Laser Wavelength: | 1064 nm (IR) |
| Beam Delivery: | Galvo |
| Work Area X: | 920 mm |
| Work Area Y: | 730 mm |
| Work Area Z: | 300 mm |
| Application: | Sheet Cutting |
| Sector: | Industrial, Professional, Job Shop, Medical Equipment |
| Materials: | Glass |
| Voltage Requirement: | Other / Not Specified |
| Included Options: | Not Specified |
| Safety Enclosure: | Yes |
| Laser Safety Class: | Other / Not Specified |
| Max Cutting Speed: | 1000 mm/s |
| Processeable Materials: | Normal glass and chemically strengthened glass DOL≤45um |
| Glass Thickness: | 0.1-3mm |
| Processing Accuracy: | ±20 μm (based on stationary position) |
| Processed Pattern: | Straight line, oblique line, curve, outline cutting |
| Arc Radius: | 0.2mm-10mm |
| Alignment Mode: | Base point alignment |
| Chipping Size: | ≤10μm |
Applications
Glass cutting (straight line, oblique line, curve, outline)
