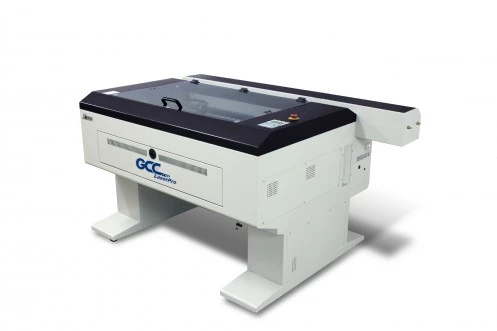

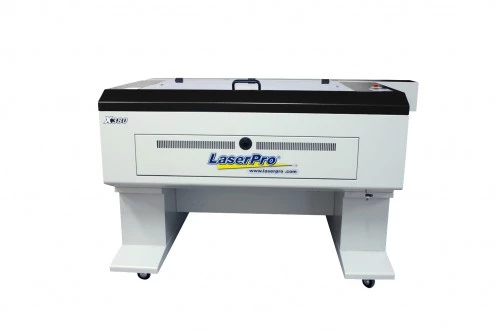

GCC LaserPro X380 Laser Cutter

Description

The GCC LaserPro X series offers an economical alternative for laser cutting and engraving. The GCC LaserPro X380 series is equipped with dependable sealed CO2 laser which offers a reliable source of laser of power for mass production requirements. GCC LaserPro users always have an edge over the others with numerous uniquely innovative and user friendly features.

https://youtu.be/hdSW66p1LRM

For more details, please use the "Request Quote" button to contact us.

Specifications

Format:	Benchtop
Laser Source:	CO2
Laser Output Power:	100 W
Laser Wavelength:	10.6 um (IR)
Beam Delivery:	Flatbed
Work Area X:	1041 mm
Work Area Y:	635 mm
Work Area Z:	165 mm
Application:	Sheet Cutting
Sector:	Hobby, Engineering, Professional
Materials:	Brass, Wood, Nylon
Voltage Requirement:	220V - 50Hz, 230V - 50Hz, 230V - 60Hz, 240V - 50Hz
Included Options:	Air Assist
Safety Enclosure:	Yes
Laser Safety Class:	Other / Not Specified
Max Cutting Speed:	1016 mm/s

Download Data Sheet

Features

RoHS Compliance
Easy-to-use Control Panel
Programmable Origin
SmartBOX™ Cutting Accessory (Optional)
Rigid and Reliable Construction
Motion System with DC Servo Motor
Pass-through Front and Rear Doors (Optional)
Superb Cutting Quality
Job Preview Function

Applications

The material database consists of built-in parameter settings for a wide variety of materials, including wood, acrylic, glass, 2-ply laminated plastic, marble, tile, rubber, coated metal and more. With this convenient selecting the appropriate job type (engraving or cutting) and material category, minimizing wasted time and materials.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Taiwan

Sold by:

GCC

On FindLight:

since 2019

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

How can I get more information about the GCC LaserPro X380 series?

For more details, please use the "Request Quote" button to contact us.

What are some of the features of the GCC LaserPro X380 series?

The GCC LaserPro X380 series features RoHS compliance, an easy-to-use control panel, programmable origin, SmartBOX™ cutting accessory (optional), rigid and reliable construction, motion system with DC servo motor, pass-through front and rear doors (optional), superb cutting quality, and job preview function.

What is the GCC LaserPro X380 series used for?

The GCC LaserPro X380 series is used for laser cutting and engraving.

What materials can be used with the GCC LaserPro X380 series?

The material database consists of built-in parameter settings for a wide variety of materials, including wood, acrylic, glass, 2-ply laminated plastic, marble, tile, rubber, coated metal and more.

What type of laser does the GCC LaserPro X380 series use?

The GCC LaserPro X380 series uses a dependable sealed CO2 laser.
