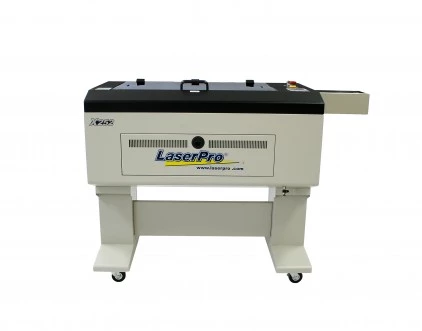

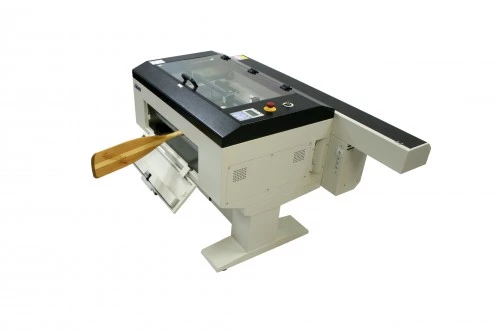

GCC LaserPro X252 Laser Cutter

Description

The LaserPro X series offers an economical alternative for laser cutting and engraving. The LaserPro X series is equipped with dependable sealed CO2 laser which offers a reliable source of 80W and 100W of power for mass production requirements.

https://youtu.be/hdSW66p1LRM

For more details, visit: www.gccworld.com

Specifications

Format:	Benchtop
Laser Source:	CO2
Laser Output Power:	100 W
Laser Wavelength:	10.6 um (IR)
Beam Delivery:	Flatbed
Work Area X:	685 mm
Work Area Y:	482 mm
Work Area Z:	165 mm
Application:	Sheet Cutting
Sector:	Home Improvement, Hobby, Professional, Job Shop
Materials:	Stainless Steel, Steel Alloy, Aluminum, Brass, Plastic, Wood, Nylon
Voltage Requirement:	220V - 50Hz, 230V - 50Hz, 230V - 60Hz, 240V - 50Hz
Included Options:	Not Specified
Safety Enclosure:	Yes
Laser Safety Class:	Class 2
Max Cutting Speed:	1016 mm/s

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

RoHS Compliance
Easy-to-use Control Panel
Programmable Origin
SmartBOX™ Cutting Accessory (Optional)
Motion System with DC Servo Motor
Pass-through Front and Rear Doors (Optional)
AutoFocus (Patented)
Emergency Stop
Job Preview Function

Applications

The material database consists of built-in parameter settings for a wide variety of materials, including wood, acrylic, glass, 2-ply laminated plastic, marble, tile, rubber, coated metal and more. With this convenient selecting the appropriate job type (engraving or cutting) and material category, minimizing wasted time and materials.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Ships from:

Taiwan

Sold by:

GCC

On FindLight:

since 2019

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

How does the material database minimize wasted time and materials?

With the convenient selecting of the appropriate job type (engraving or cutting) and material category, the material database minimizes wasted time and materials.

What features does the LaserPro X series have?

The LaserPro X series features RoHS Compliance, an easy-to-use Control Panel, Programmable Origin, SmartBOX™ Cutting Accessory (Optional), Motion System with DC Servo Motor, Pass-through Front and Rear Doors (Optional), AutoFocus (Patented), and Emergency Stop.

What is the LaserPro X series?

The LaserPro X series is an economical alternative for laser cutting and engraving.

What is the material database for the LaserPro X series?

The material database consists of built-in parameter settings for a wide variety of materials, including wood, acrylic, glass, 2-ply laminated plastic, marble, tile, rubber, coated metal and more.

What type of laser does the LaserPro X series have?

The LaserPro X series is equipped with a dependable sealed CO2 laser which offers a reliable source of 80W and 100W of power for mass production requirements.
